Description

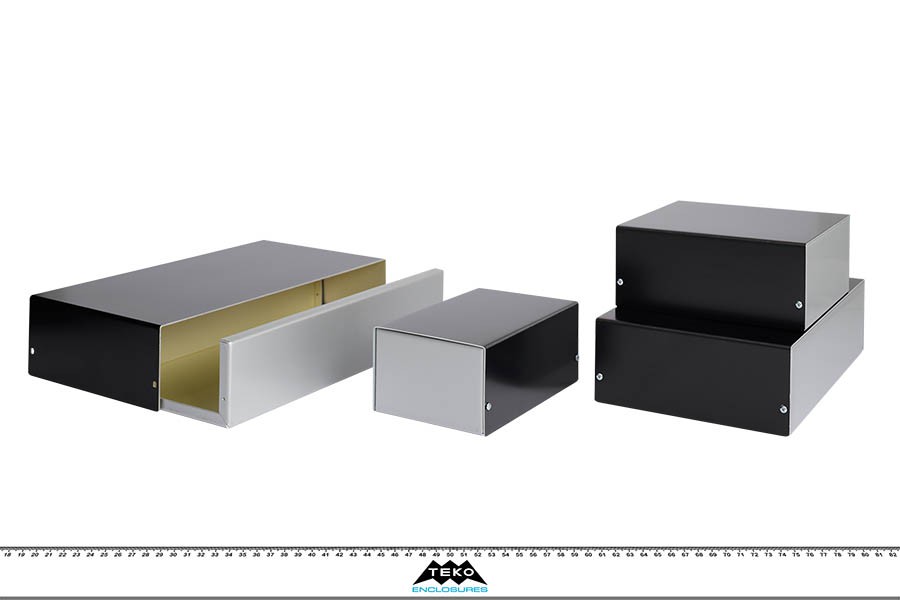

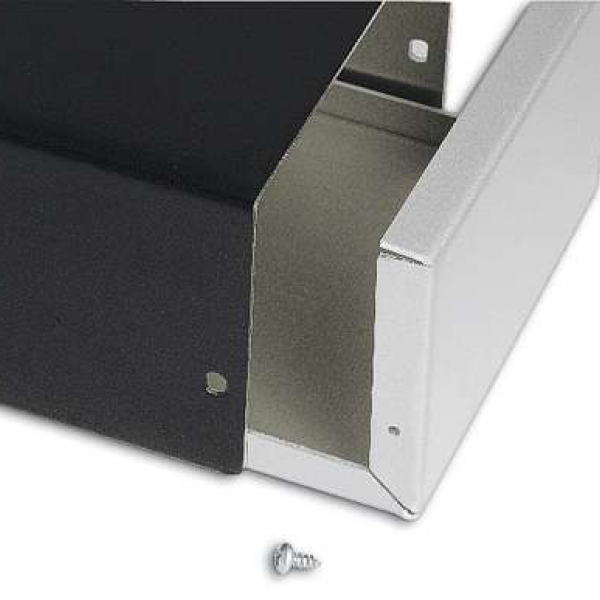

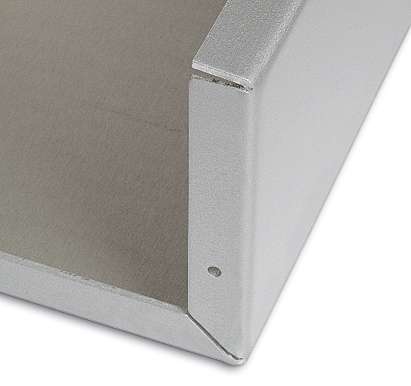

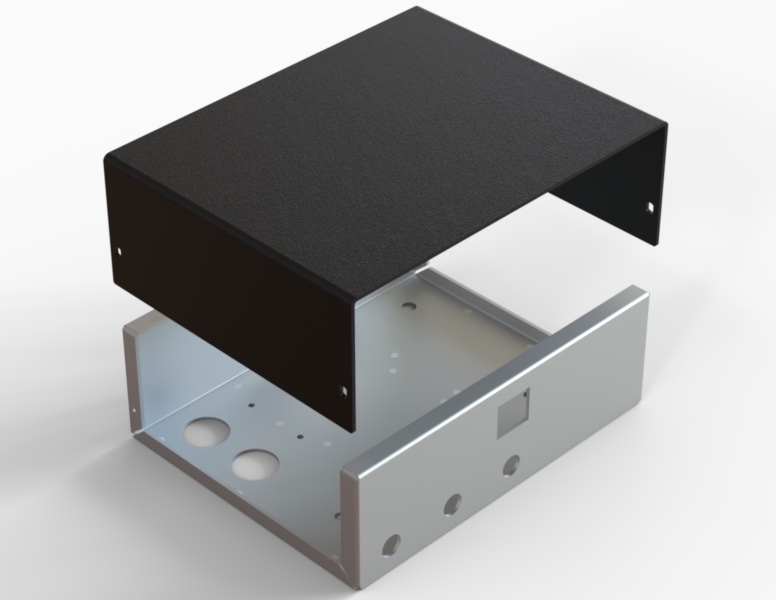

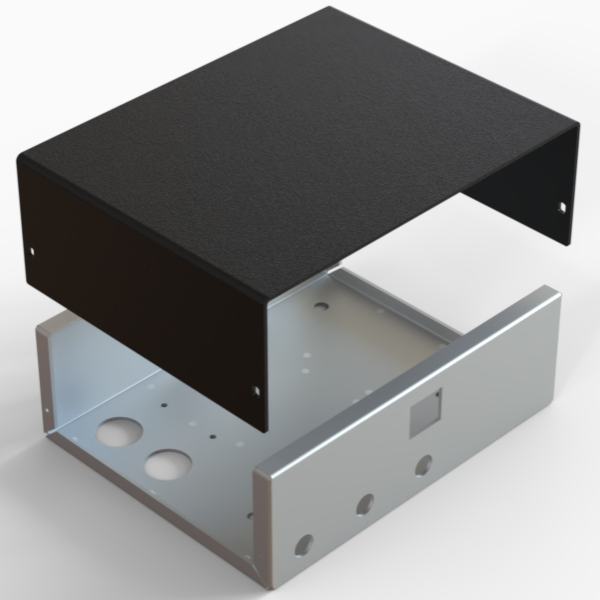

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

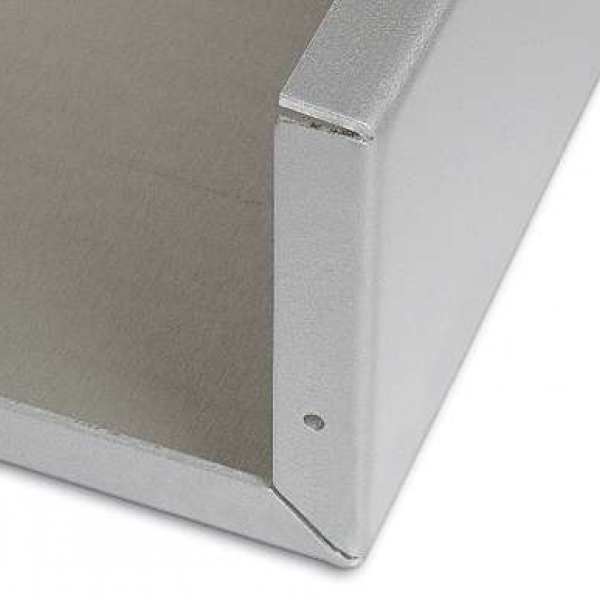

Details
.jpg)
.jpg)
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

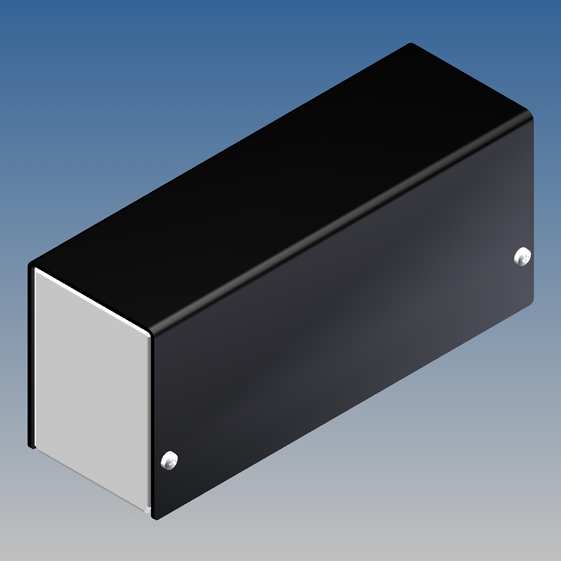

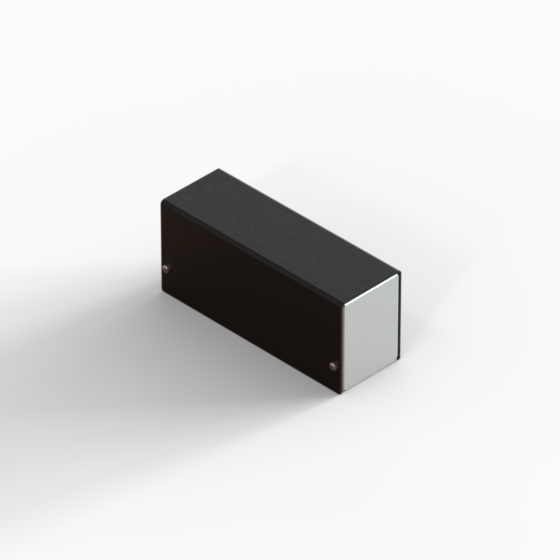

381.18 | 2,106 | 6,299 | 2,736 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

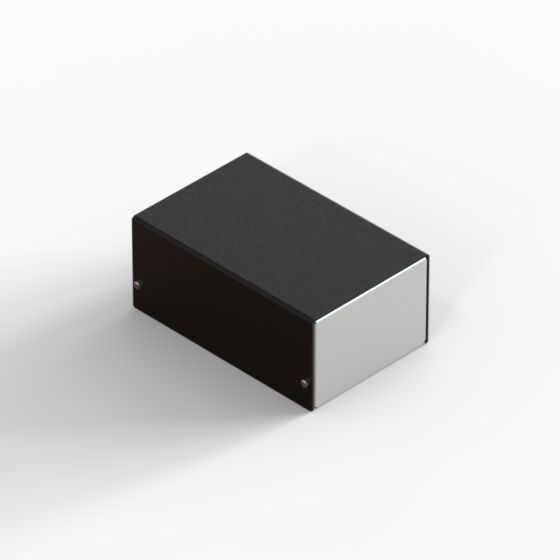

382.18 | 4,094 | 6,299 | 2,736 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

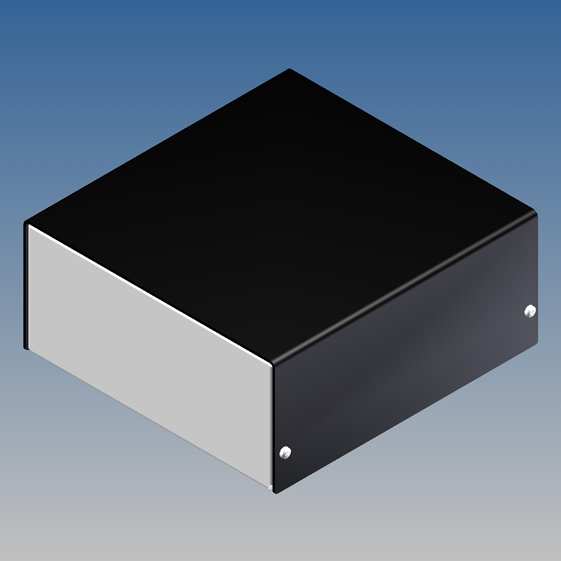

383.18 | 6,024 | 6,299 | 2,736 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

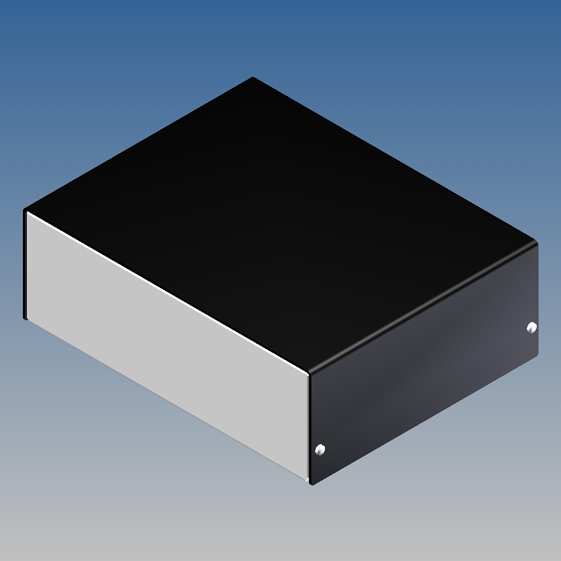

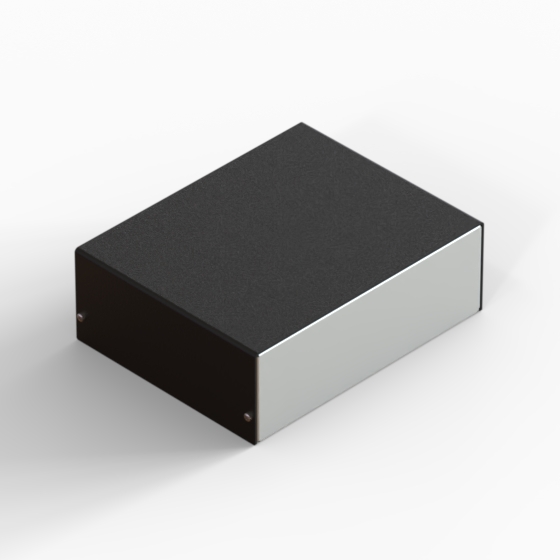

384.18 | 7,992 | 6,299 | 2,736 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

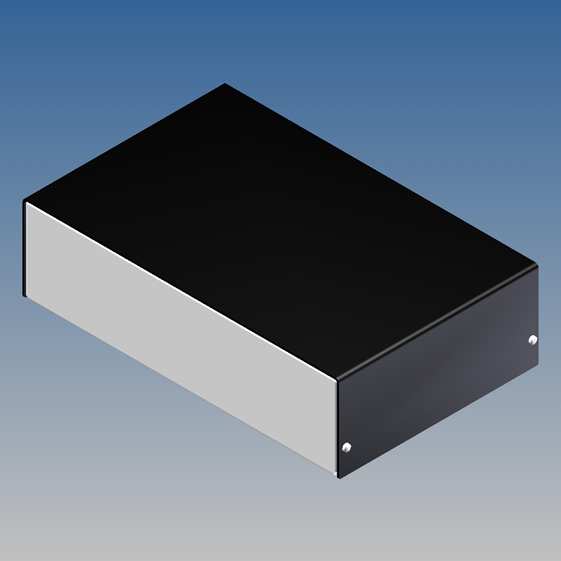

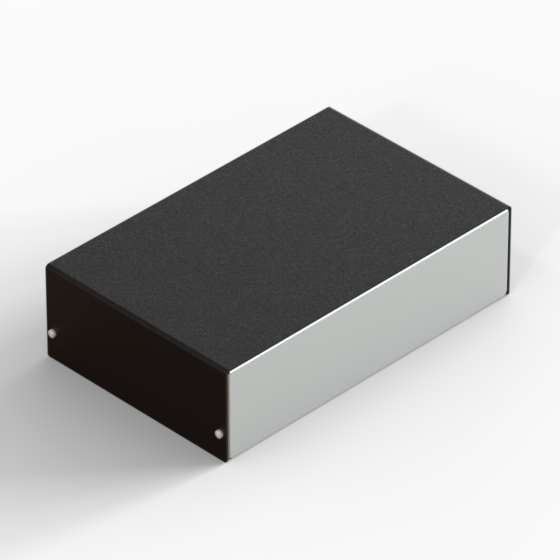

385.18 | 9,961 | 6,299 | 2,736 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

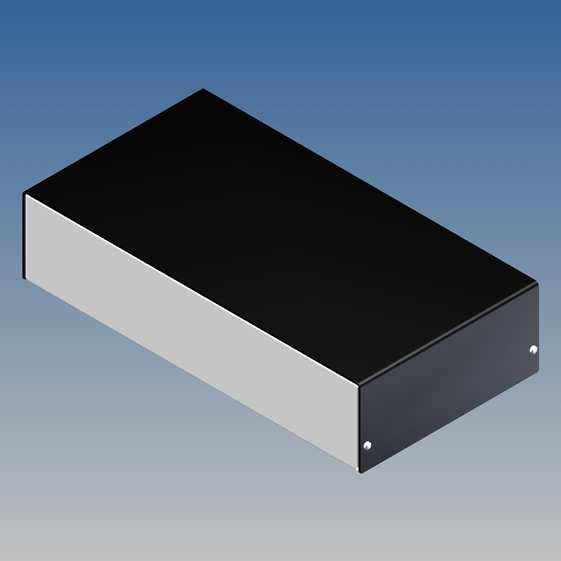

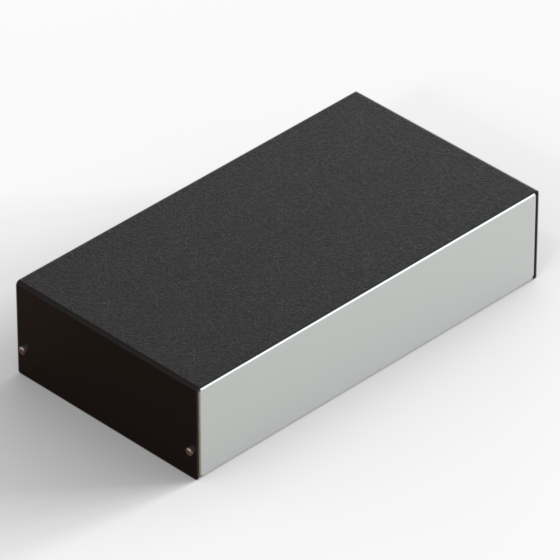

386.18 | 11,929 | 6,299 | 2,736 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
