Description
Series of small powder coating aluminium enclosures with multi-shot moulded (ABS+TPU) two-tone coloured front cover panels. They have co-moulded sealing to protect against water and from dust (IP65). The internal guides allow an easy assembly of PCB. Closing by eight screws.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

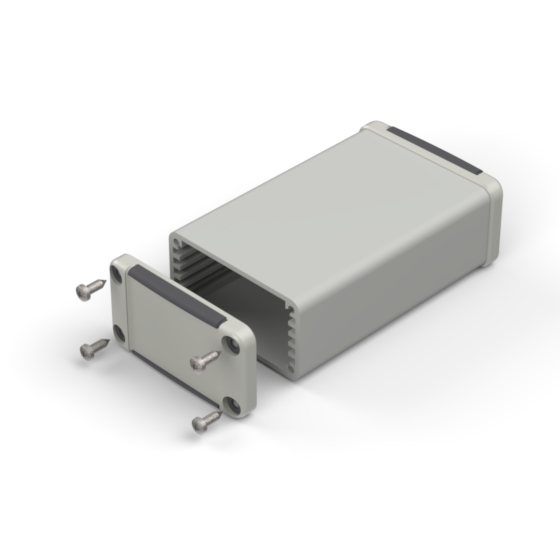

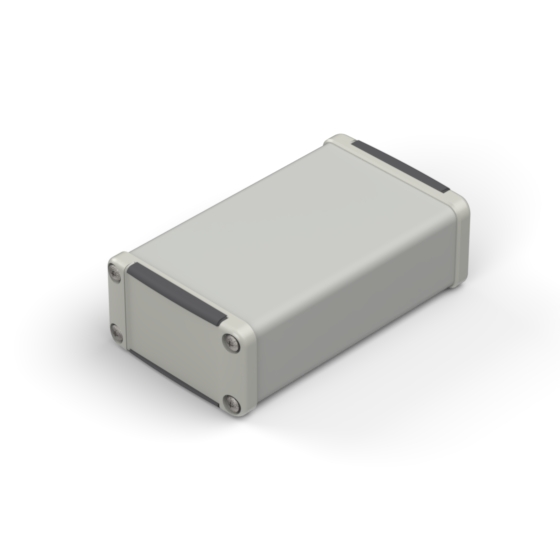

MTK465PK.1 | 2,953 | 1,732 | 0,945 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 2,559 | 1,551 | 8 |
PDF DWG |
View
|
||
|

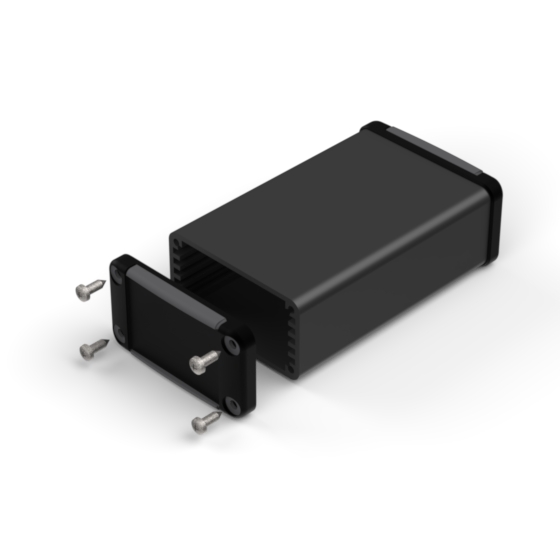

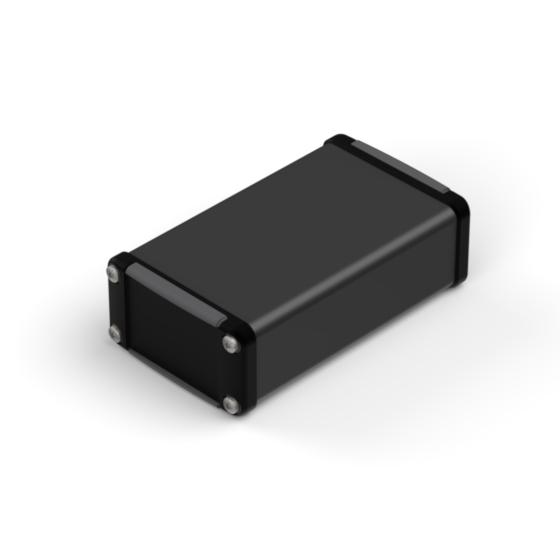

MTK465PK.9 | 2,953 | 1,732 | 0,945 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 2,559 | 1,551 | 8 |
PDF DWG |
View
|
||
|

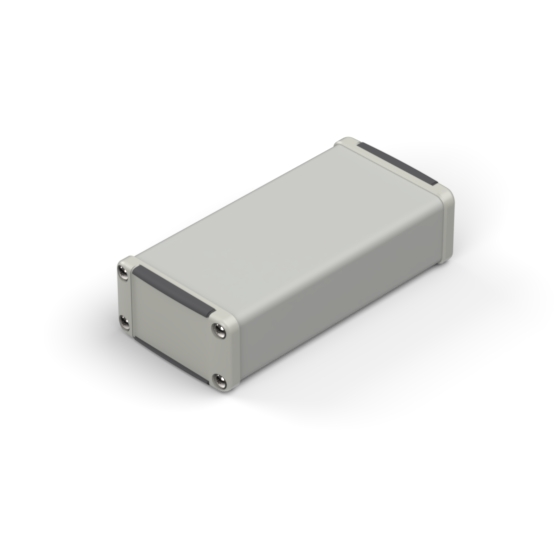

MTK480PK.1 | 3,543 | 1,732 | 0,945 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 3,15 | 1,551 | 8 |
PDF DWG |
View
|
||
|

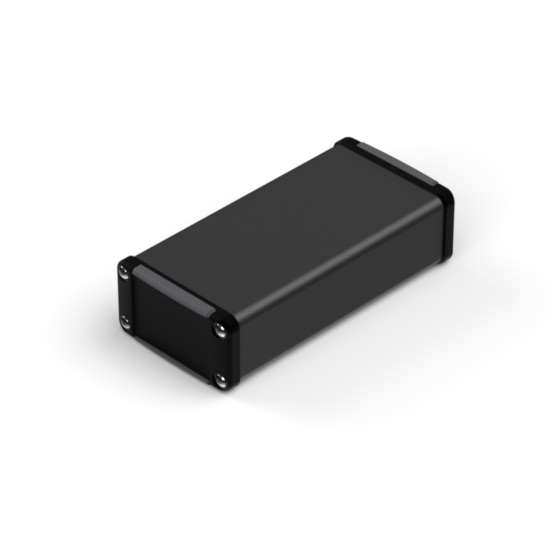

MTK480PK.9 | 3,543 | 1,732 | 0,945 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 3,15 | 1,551 | 8 |
PDF DWG |
View
|
||
|

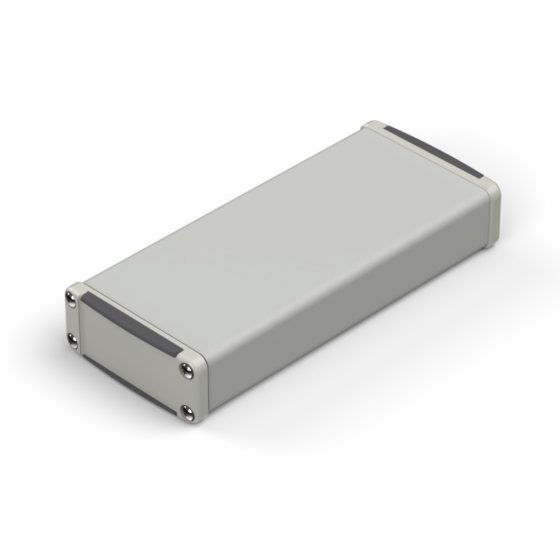

MTK5110PK.1 | 4,724 | 2,047 | 0,827 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 4,331 | 1,85 | 8 |
PDF DWG |
View
|
||
|

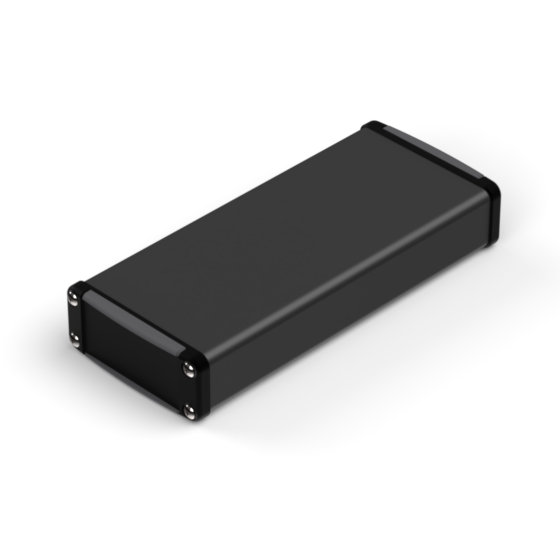

MTK5110PK.9 | 4,724 | 2,047 | 0,827 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 4,331 | 1,85 | 8 |
PDF DWG |
View
|
||
|

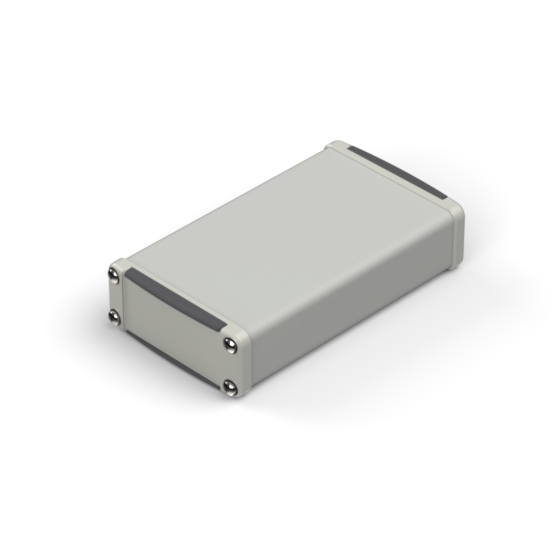

MTK580PK.1 | 3,543 | 2,047 | 0,827 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 3,15 | 1,85 | 8 |
PDF |
View
|
||
|

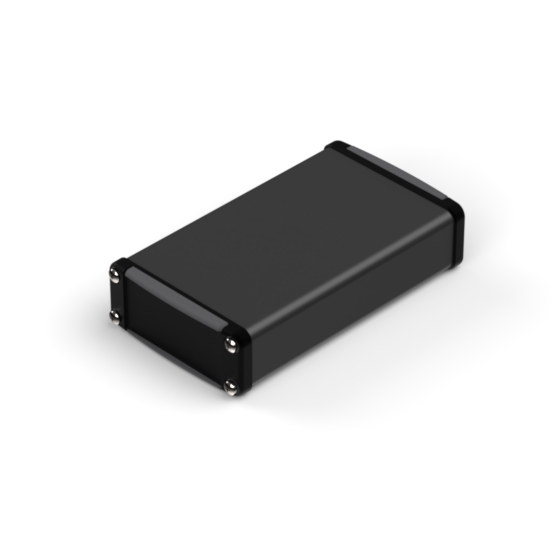

MTK580PK.9 | 3,543 | 2,047 | 0,827 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 3,15 | 1,85 | 8 |
PDF |
View
|
||
|

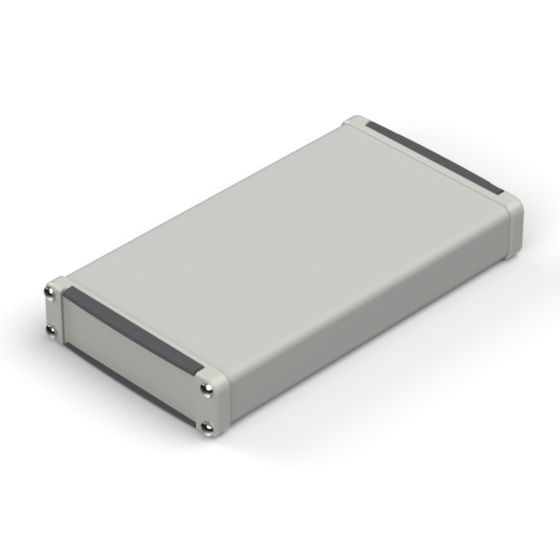

MTK6110PK.1 | 4,724 | 2,638 | 0,748 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 4,331 | 2,457 | 8 |
PDF DWG |
View
|
||
|

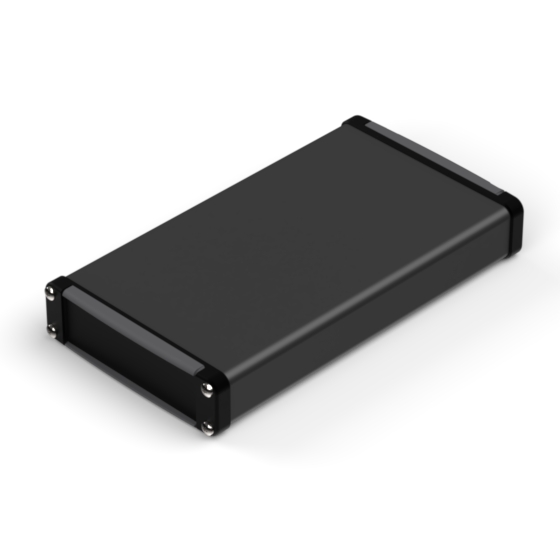

MTK6110PK.9 | 4,724 | 2,638 | 0,748 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 4,331 | 2,457 | 8 |
PDF DWG |
View
|
||
|

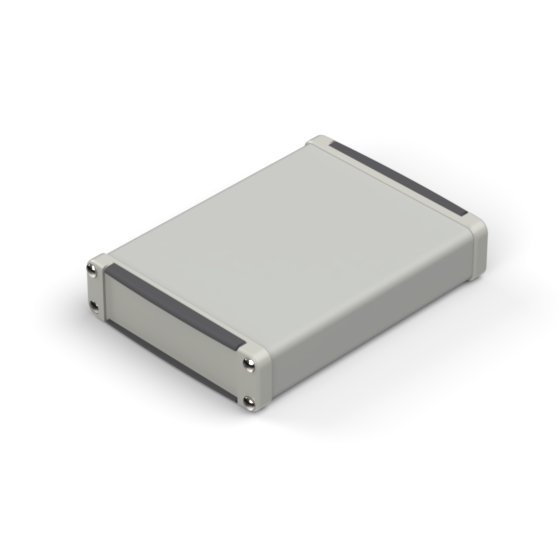

MTK680PK.1 | 3,543 | 2,638 | 0,748 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 3,15 | 2,457 | 8 |
PDF DWG |
View
|
||
|

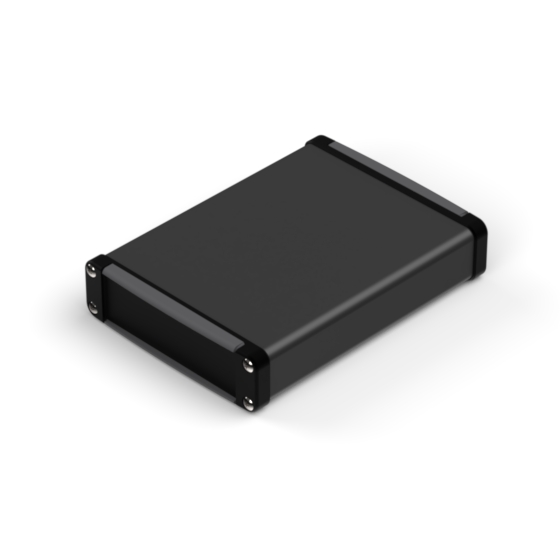

MTK680PK.9 | 3,543 | 2,638 | 0,748 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 3,15 | 2,457 | 8 |
PDF DWG |
View
|
