Description

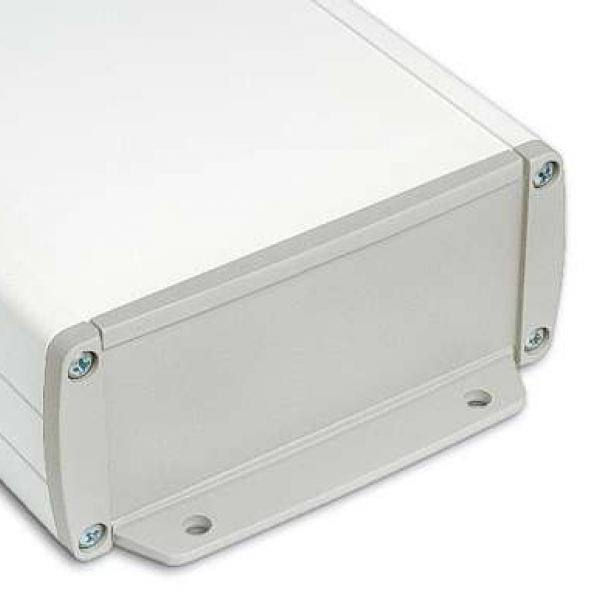

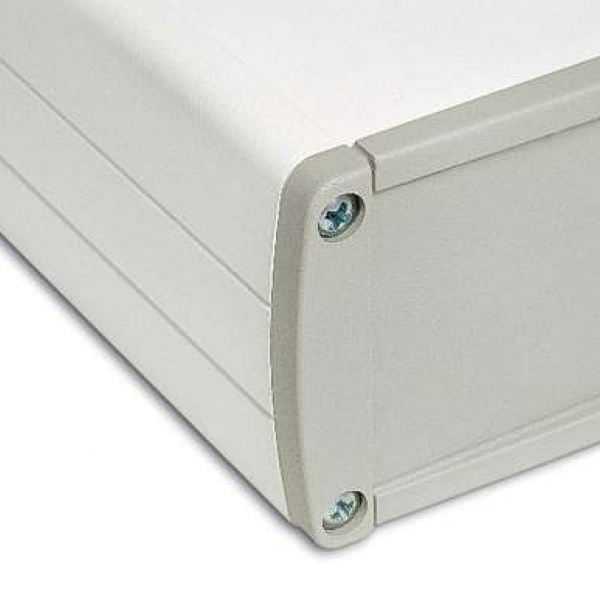

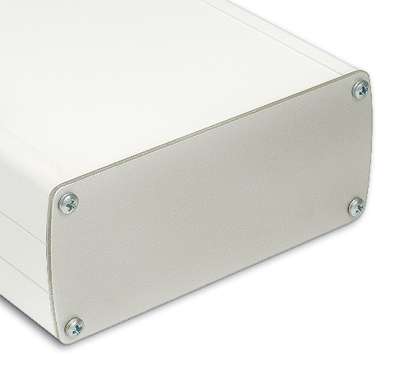

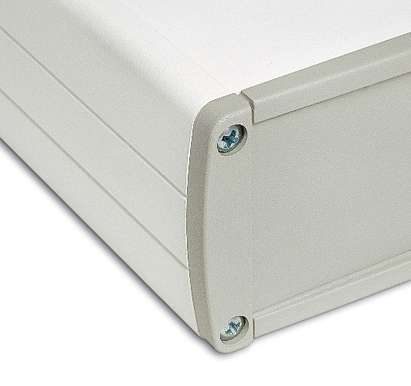

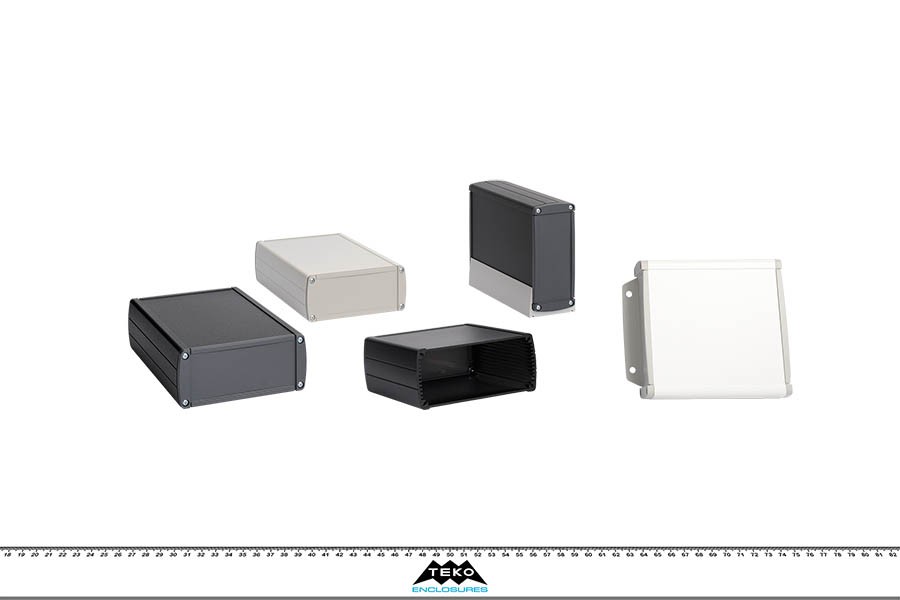

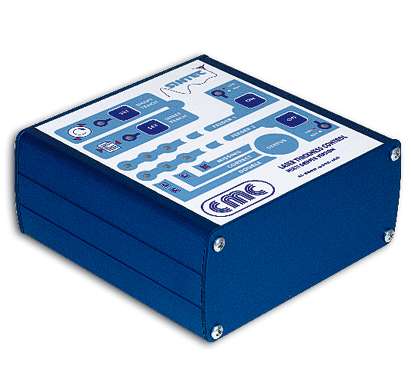

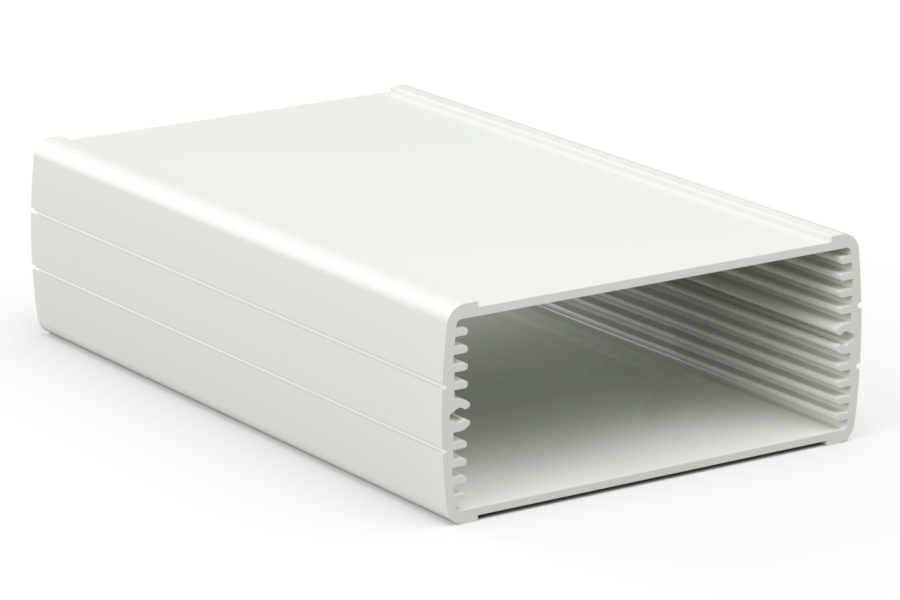

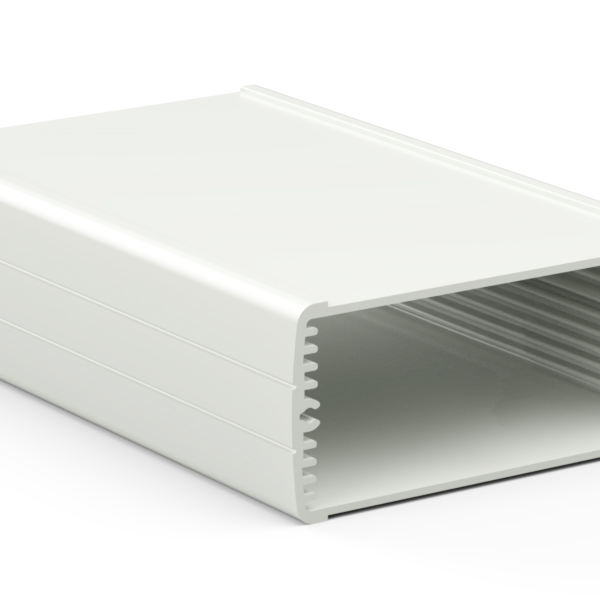

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. Six standard models are available with different sizes. The models with “-E” have mounting wall panels. Closing by eight screws
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

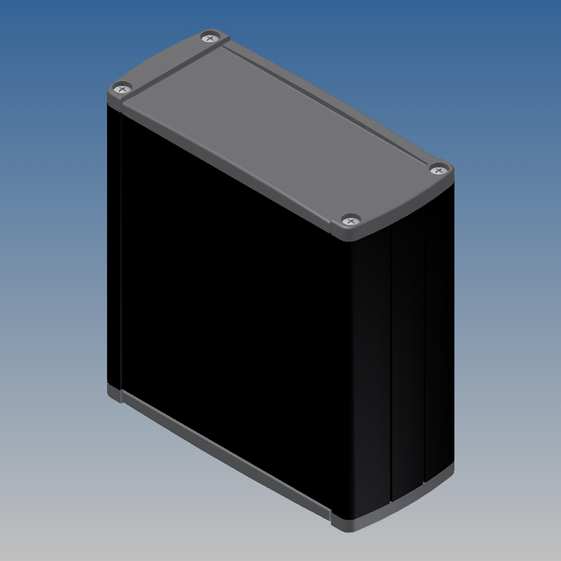

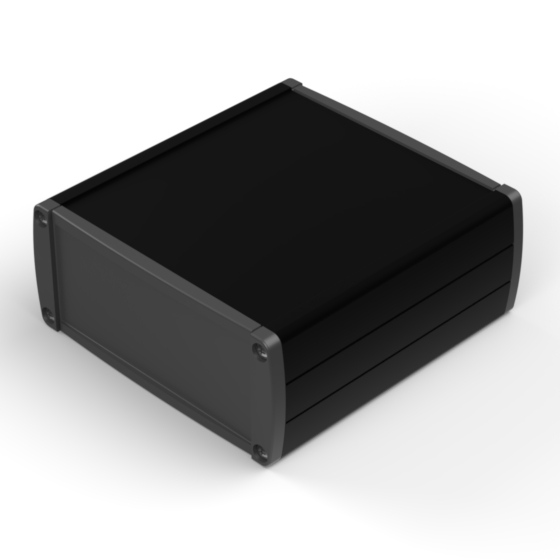

TEKAL-31.29 | 4,331 | 4,173 | 1,811 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937 | 3,957 | 8 | - |
ALP-3 PPMT3 VS1 |
PDF DWG |
|
|

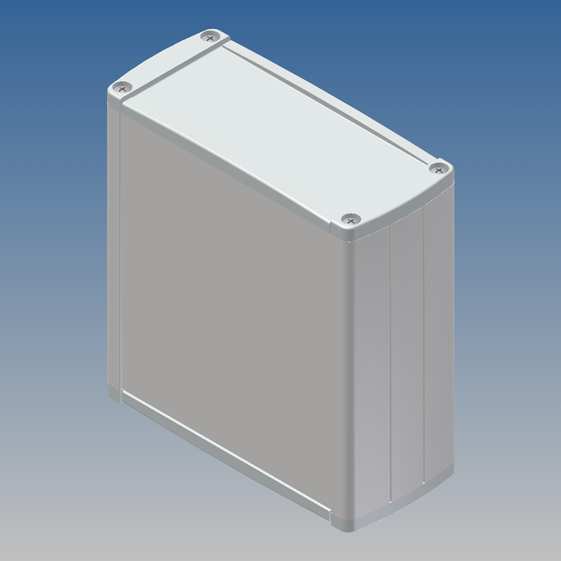

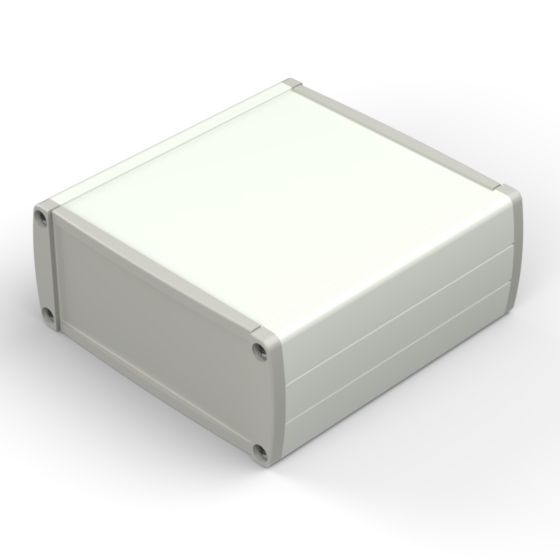

TEKAL-31.30 | 4,331 | 4,173 | 1,811 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937 | 3,957 | 8 | - |
ALP-3 PPMT3 VS1 |
PDF DWG |
|
|

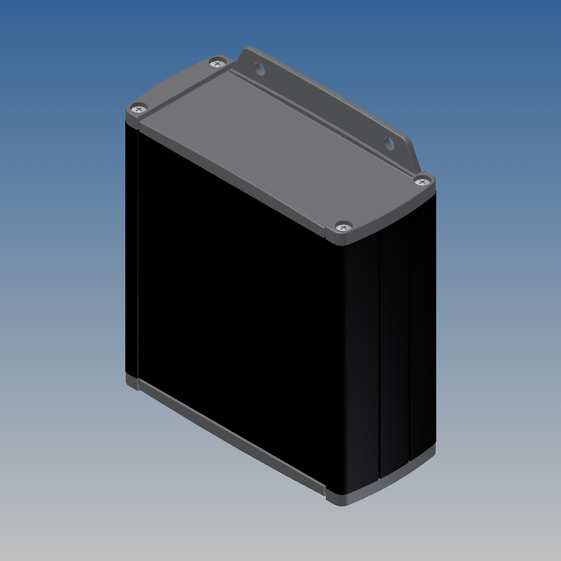

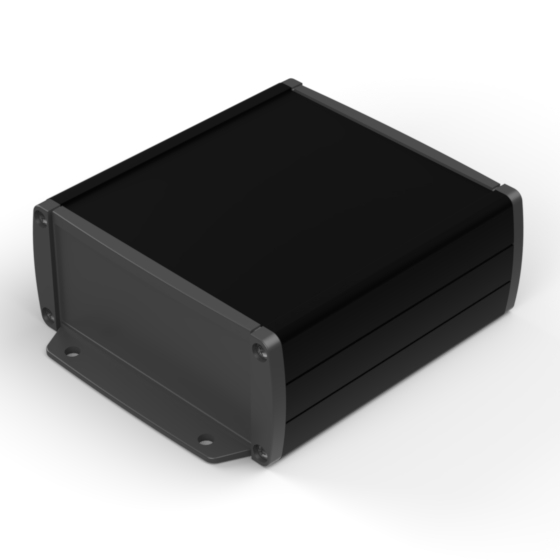

TEKAL-31/E.29 | 4,331 | 4,173 | 1,811 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937 | 3,957 | 8 | - |
ALP-3 VS1 |
PDF DWG |
|
|

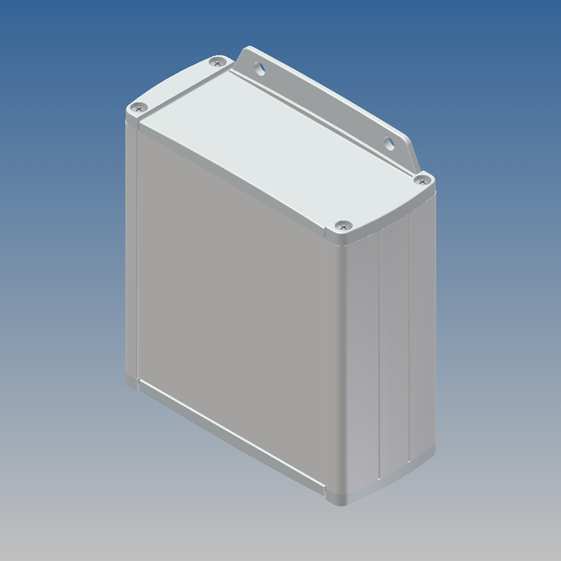

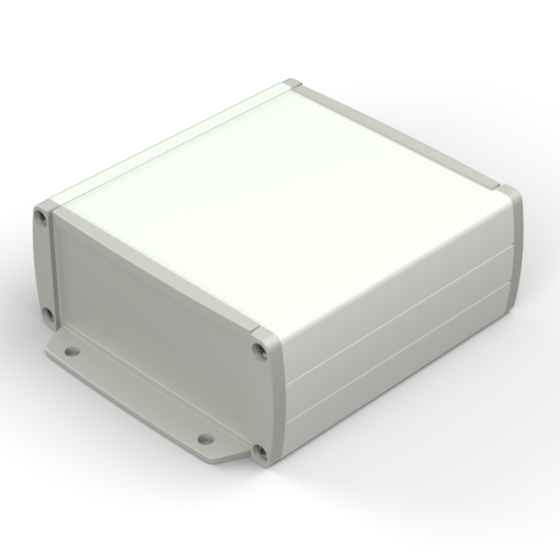

TEKAL-31/E.30 | 4,331 | 4,173 | 1,811 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937 | 3,957 | 8 | - |
ALP-3 VS1 |
PDF DWG |
|
|

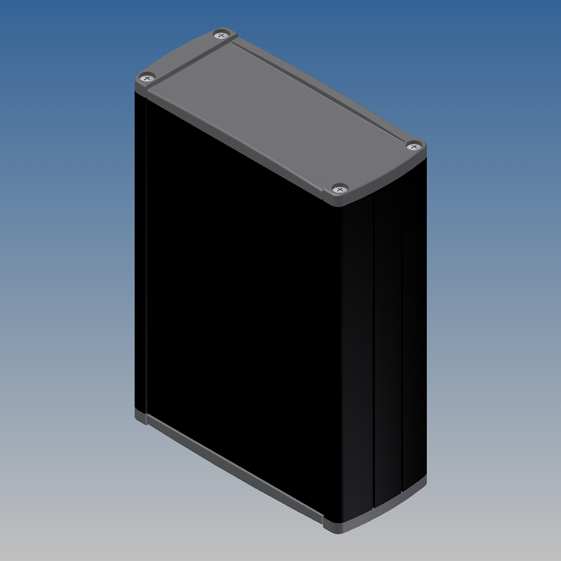

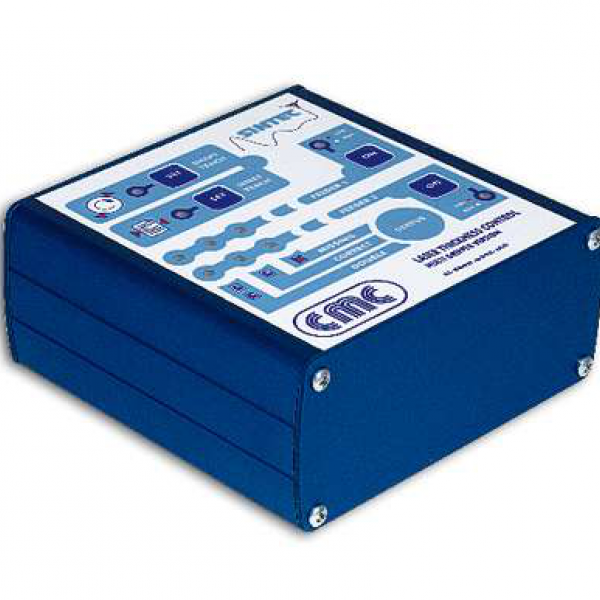

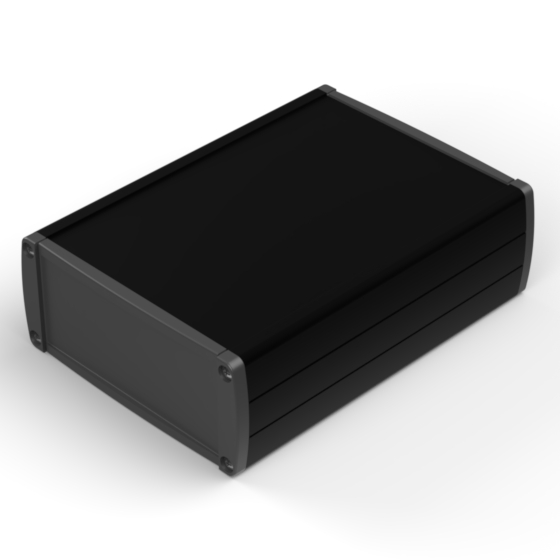

TEKAL-32.29 | 5,709 | 4,173 | 1,811 |
9004 7012 |
ALLOY 6060 - 1640 AS | 5,315 | 3,957 | 8 | - |
ALP-3 PPMT3 VS2 |
PDF DWG |
|
|

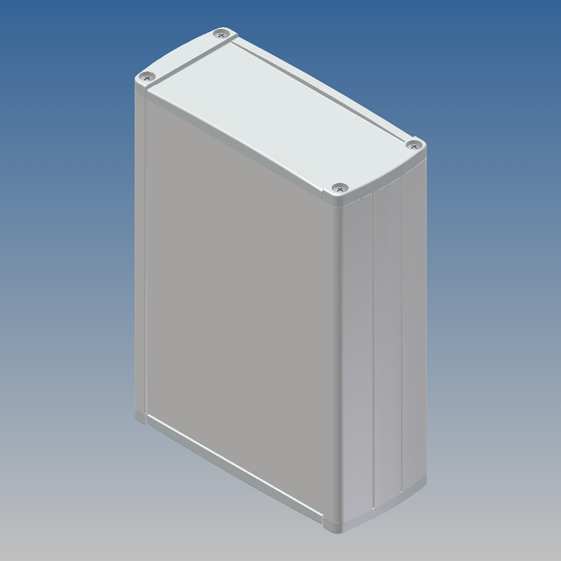

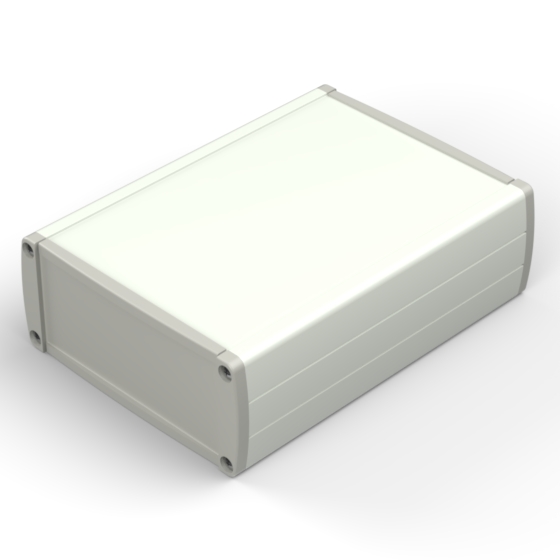

TEKAL-32.30 | 5,709 | 4,173 | 1,811 |
9002 9018 |
ALLOY 6060 - 1640 AS | 5,315 | 3,957 | 8 | - |
ALP-3 PPMT3 VS2 |
PDF DWG |
|
|

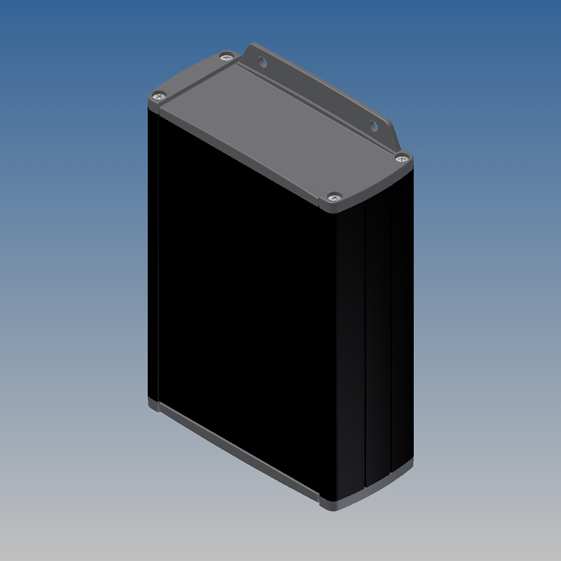

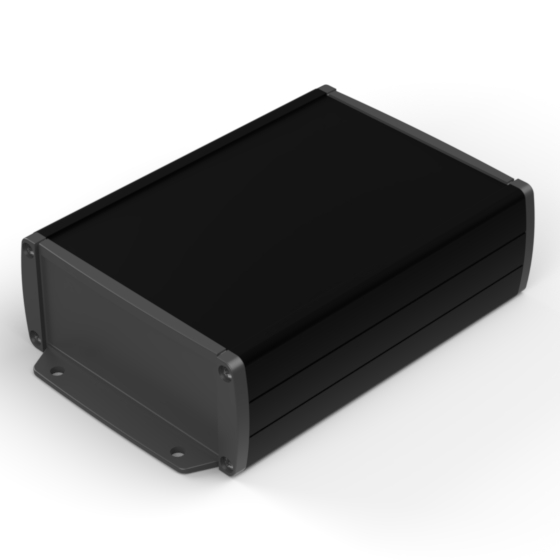

TEKAL-32/E.29 | 5,709 | 4,173 | 1,811 |
9004 7012 |
ALLOY 6060 - 1640 AS | 5,315 | 3,957 | 8 | - |
ALP-3 VS2 |
PDF DWG |
|
|

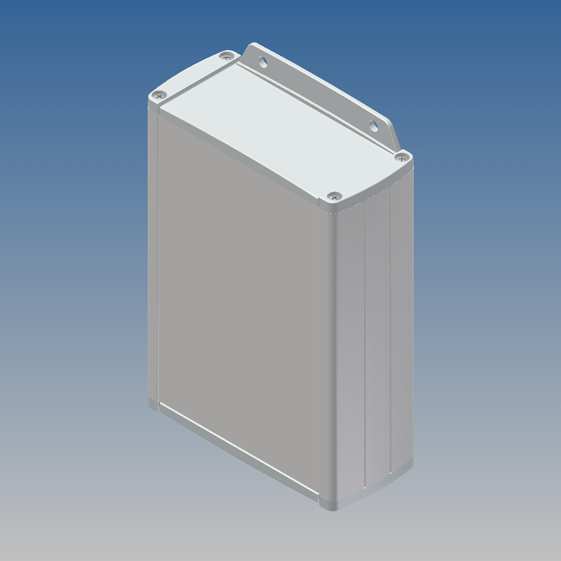

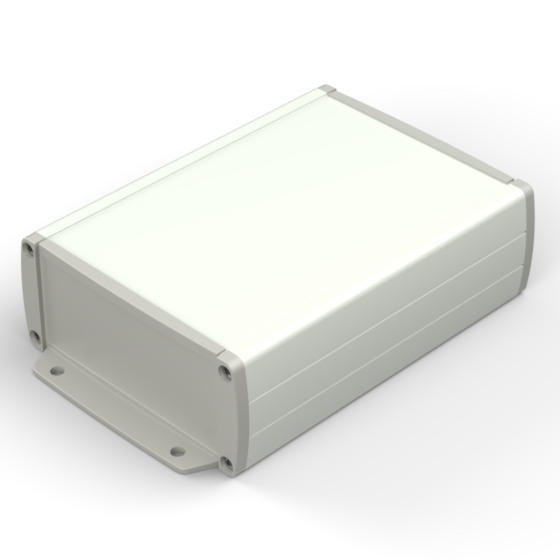

TEKAL-32/E.30 | 5,709 | 4,173 | 1,811 |
9002 9018 |
ALLOY 6060 - 1640 AS | 5,315 | 3,957 | 8 | - |
ALP-3 VS2 |
PDF DWG |
|
|

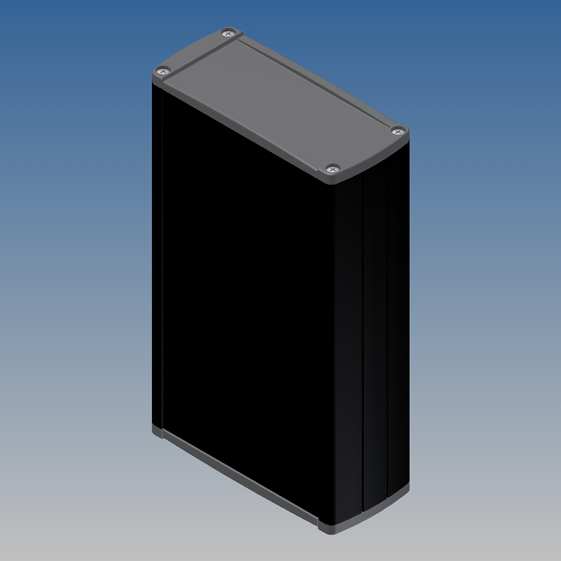

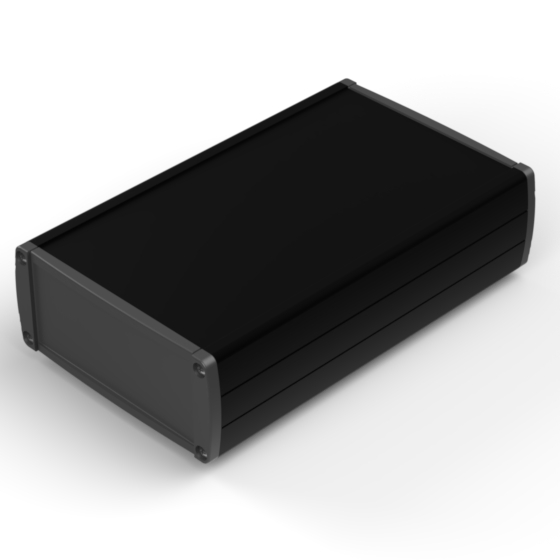

TEKAL-33.29 | 6,89 | 4,173 | 1,811 |
9004 7012 |
ALLOY 6060 - 1640 AS | 6,496 | 3,957 | 8 | - |
ALP-3 PPMT3 VS3 |
PDF DWG |
|
|

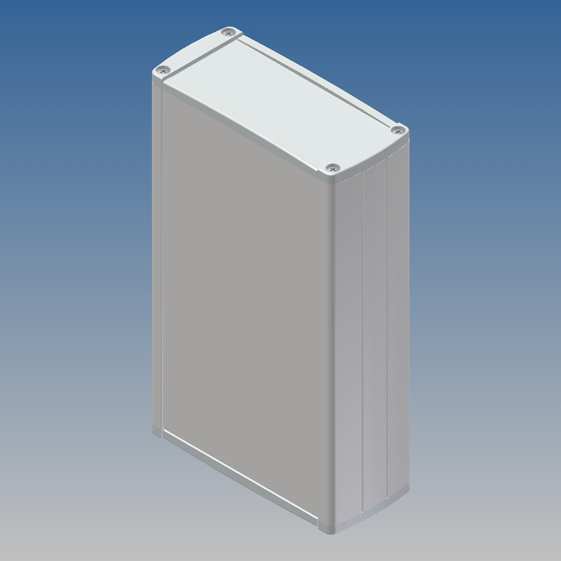

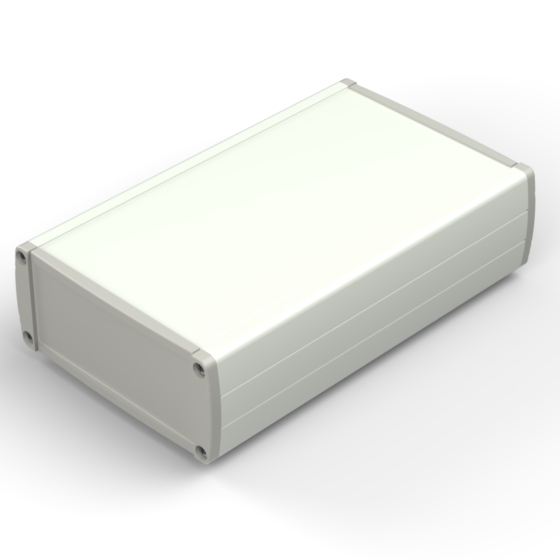

TEKAL-33.30 | 6,89 | 4,173 | 1,811 |
9002 9018 |
ALLOY 6060 - 1640 AS | 6,496 | 3,957 | 8 | - |
ALP-3 PPMT3 VS3 |
PDF DWG |
|
|

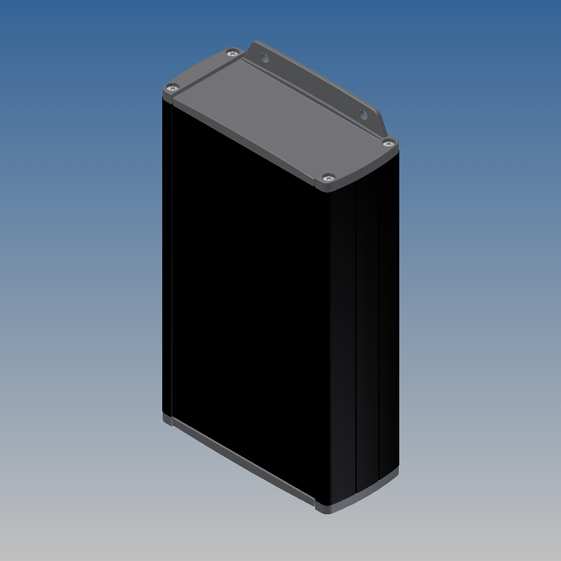

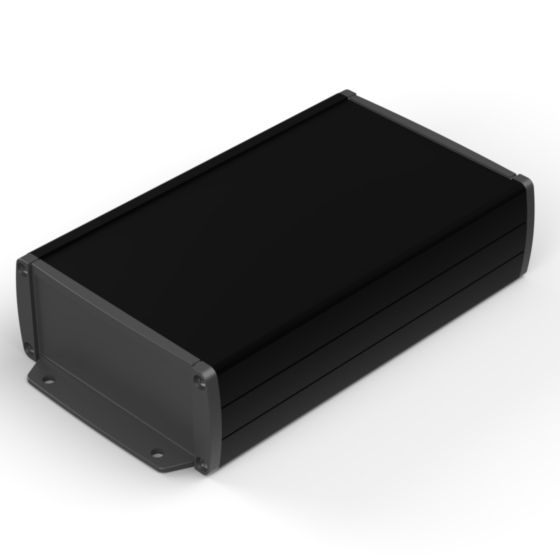

TEKAL-33/E.29 | 6,89 | 4,173 | 1,811 |
9004 7012 |
ALLOY 6060 - 1640 AS | 6,496 | 3,957 | 8 | - |
ALP-3 VS3 |
PDF DWG |
|
|

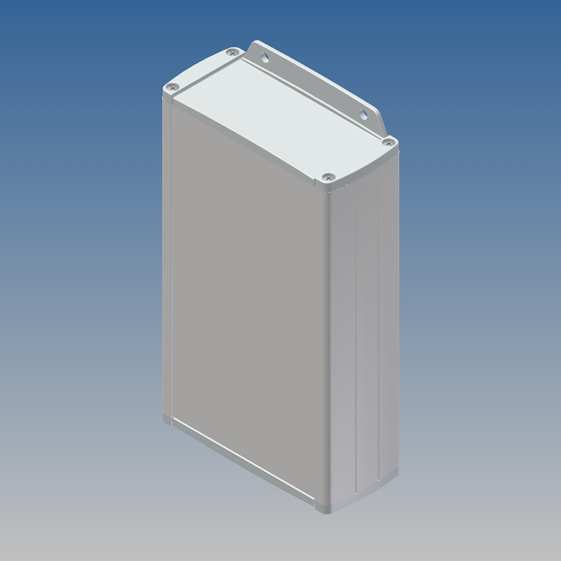

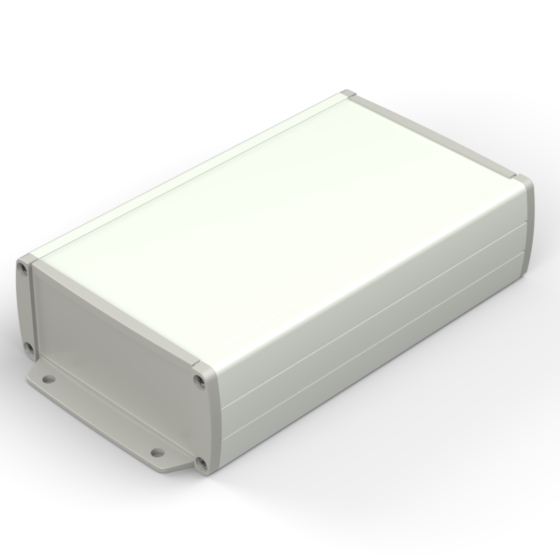

TEKAL-33/E.30 | 6,89 | 4,173 | 1,811 |
9002 9018 |
ALLOY 6060 - 1640 AS | 6,496 | 3,957 | 8 | - |
ALP-3 VS3 |
PDF DWG |
