Description

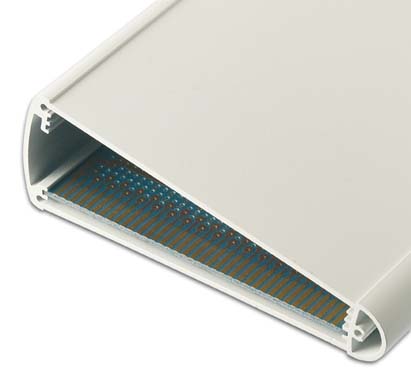

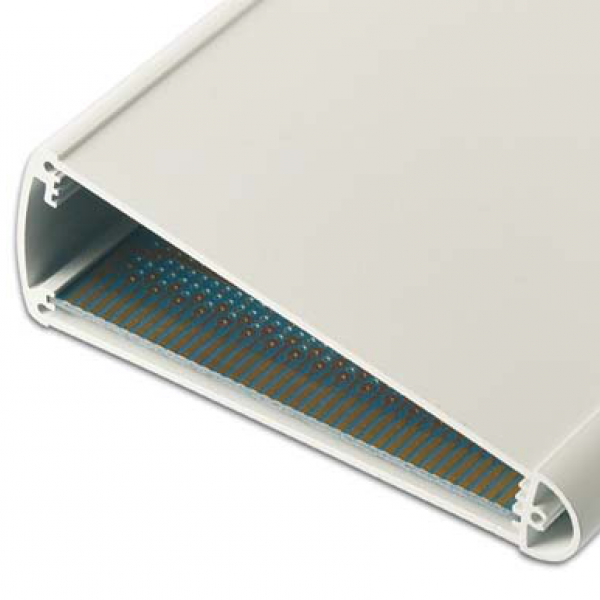

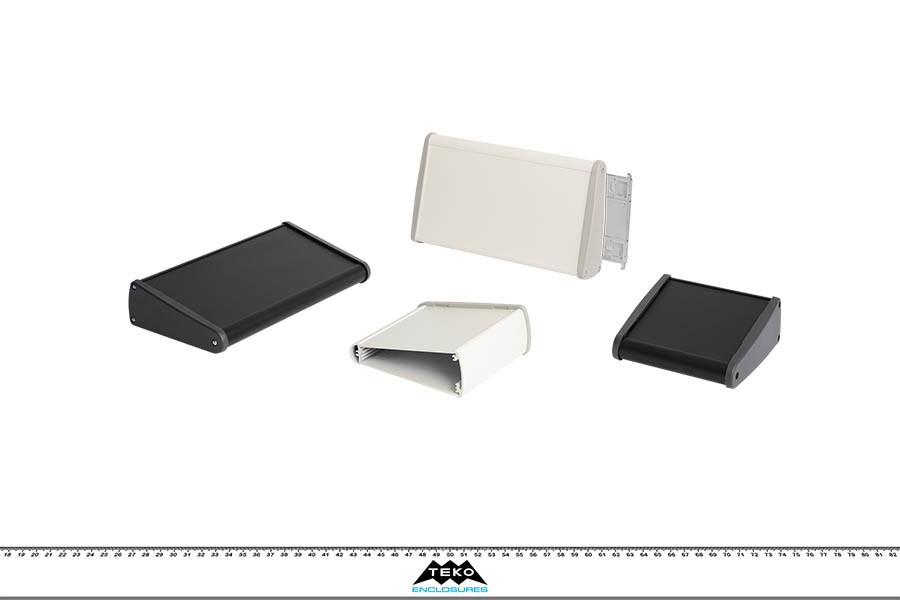

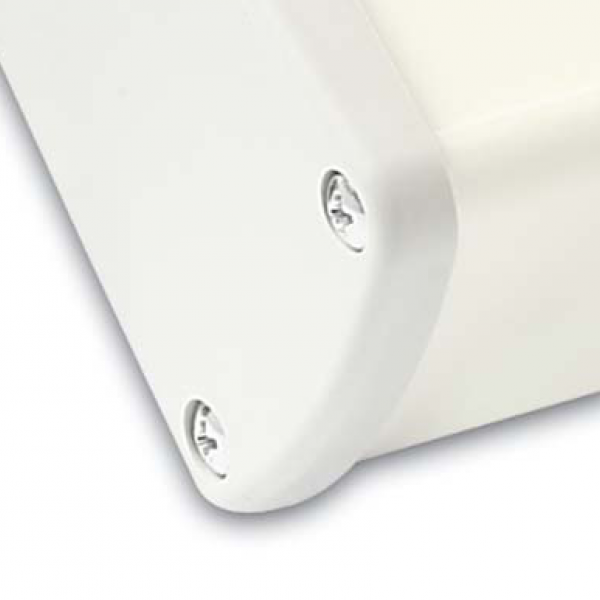

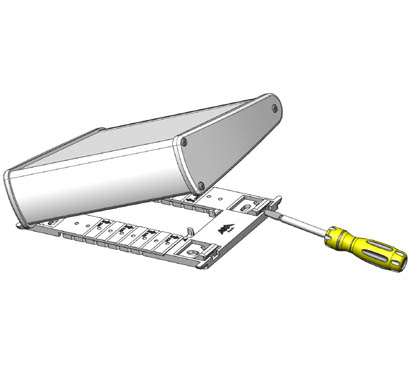

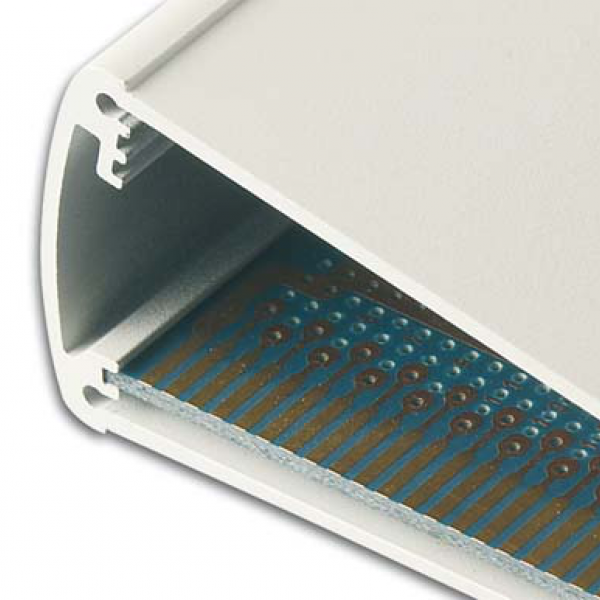

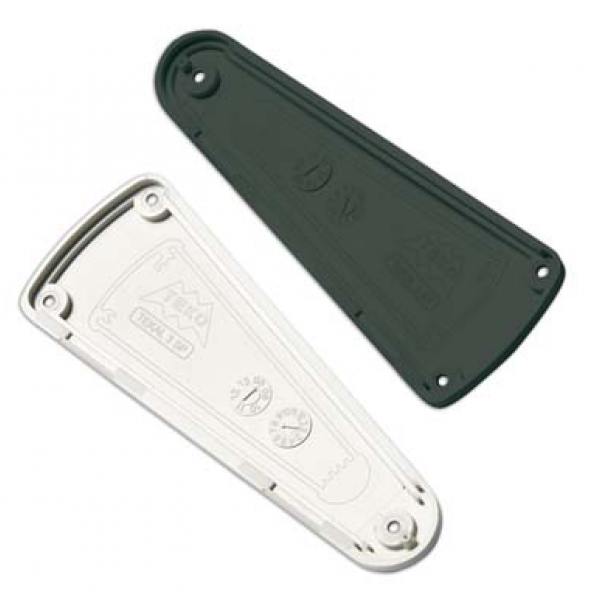

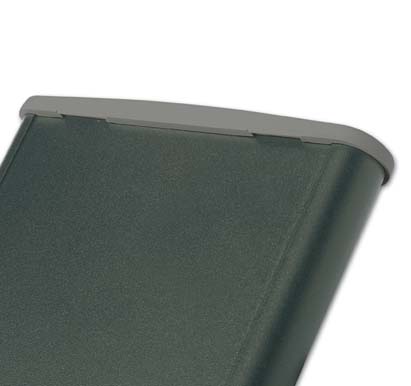

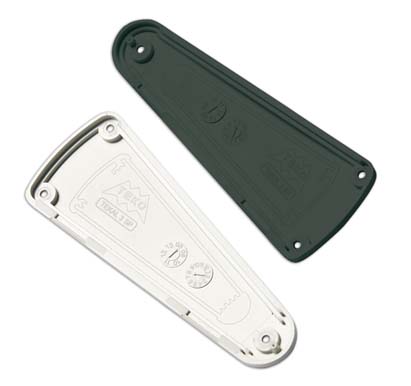

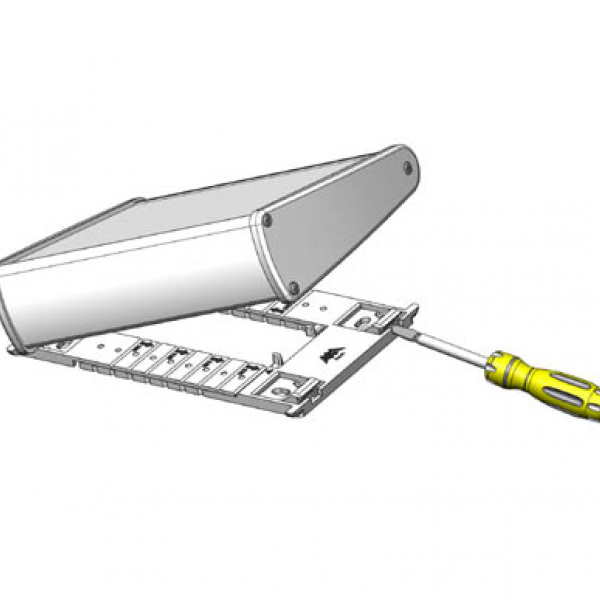

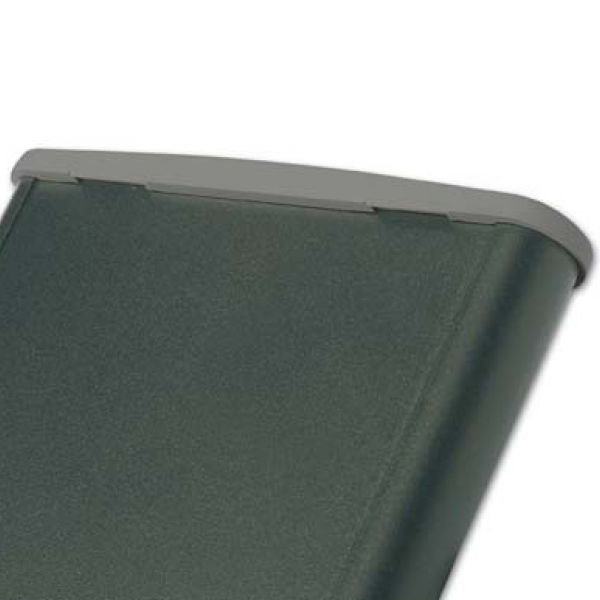

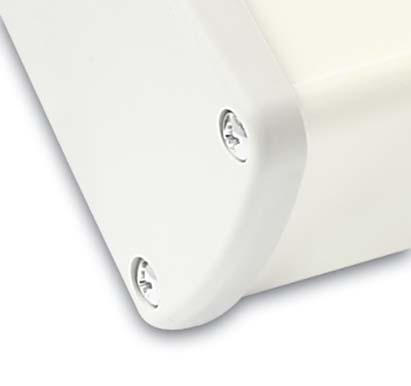

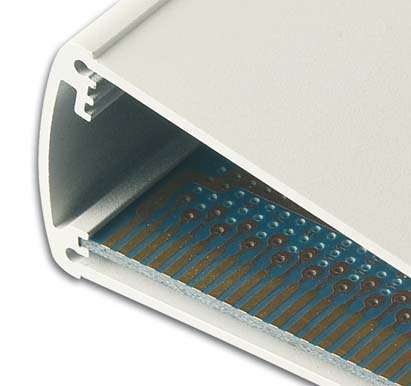

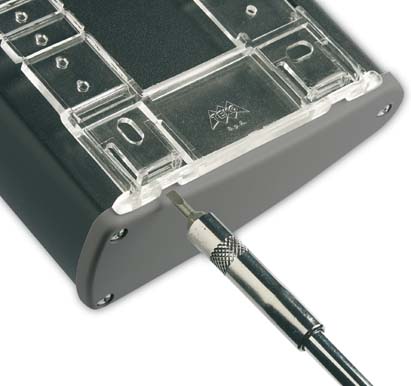

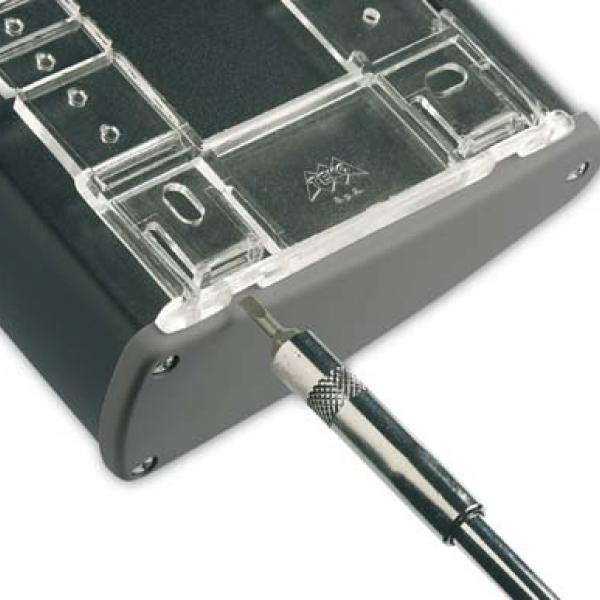

Inclined extruded aluminium case with high quality painted finishing. Two ABS side panels, internal guides for PCB, recessed area for membrane keypad.Closing by six screws. Two colours combinations: black RAL 9004 / grey RAL 7012 - white RAL 9002 / light grey RAL 9018. Upon request wall-suspension element “MT7.0”.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

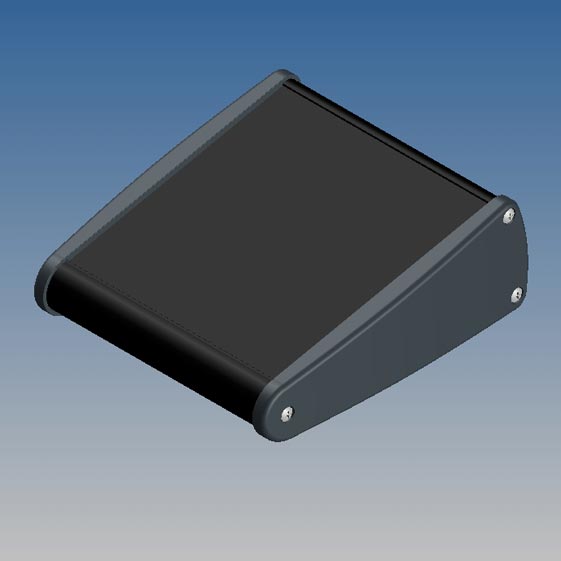

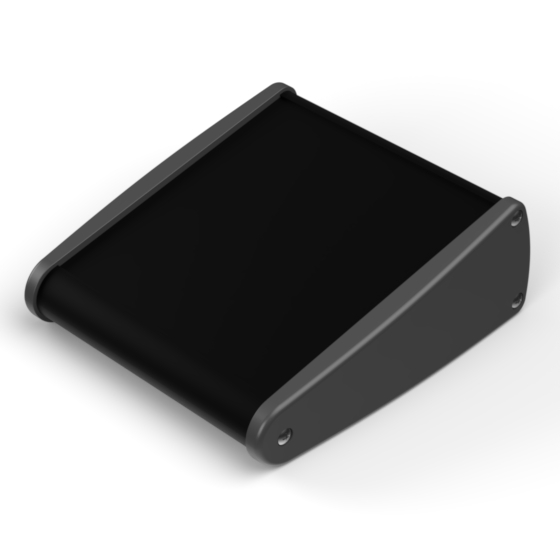

TEKAL-31SP.29 | 4,37 | 4,764 | 1,732 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937 | 3,937 | 6 | - |
MT7 |
PDF DWG |
|
|

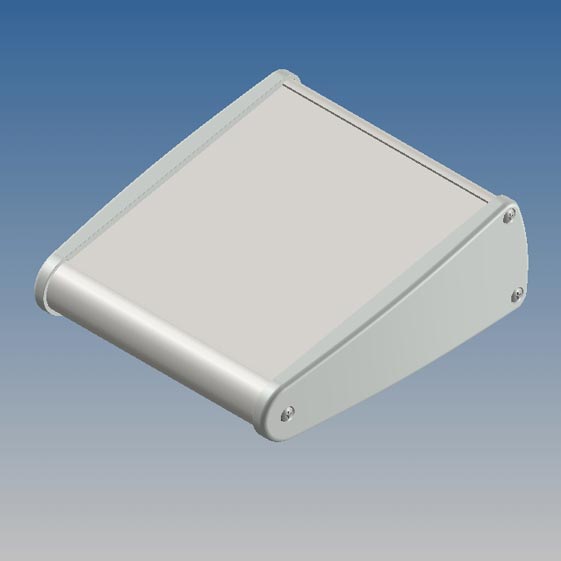

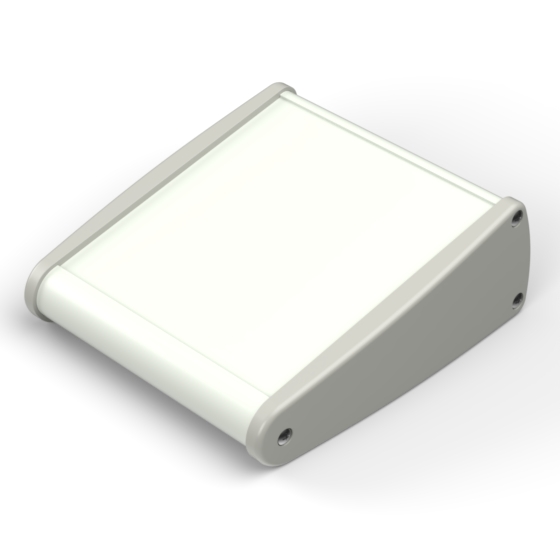

TEKAL-31SP.30 | 4,37 | 4,764 | 1,732 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937 | 3,937 | 6 | - |
MT7 |
PDF DWG |
|
|

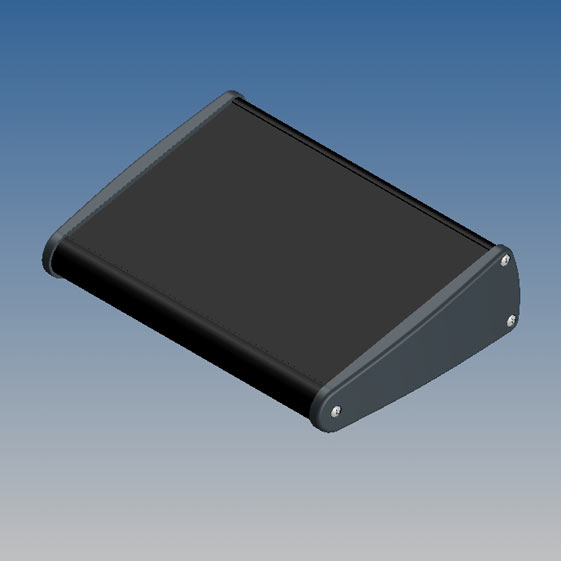

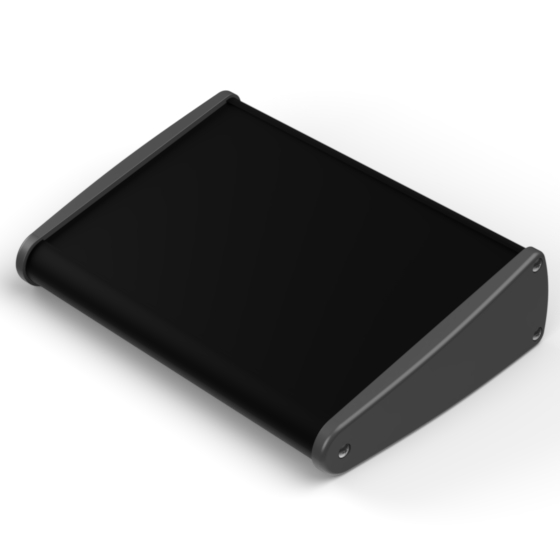

TEKAL-32SP.29 | 6,732 | 4,764 | 1,732 |
9004 7012 |
ALLOY 6060 - 1640 AS | 6,299 | 3,937 | 6 | - |
MT7 |
PDF DWG |
|
|

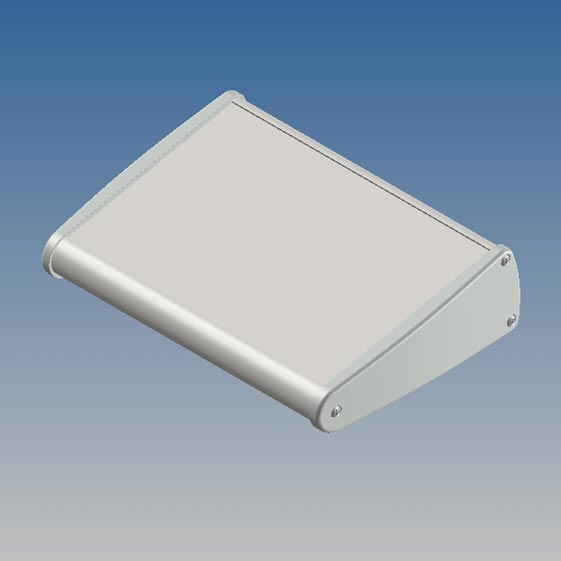

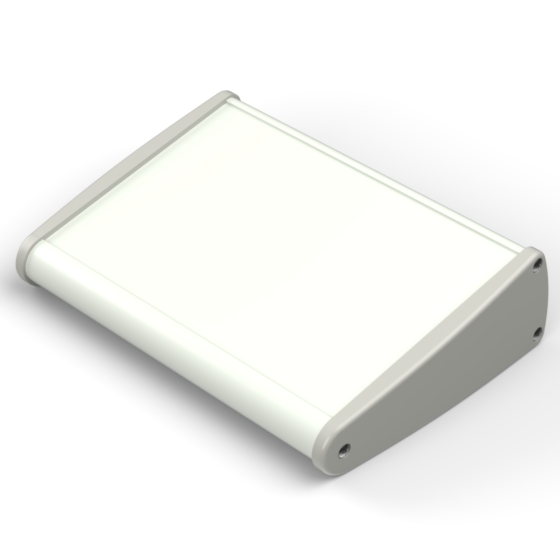

TEKAL-32SP.30 | 6,732 | 4,764 | 1,732 |
9002 9018 |
ALLOY 6060 - 1640 AS | 6,299 | 3,937 | 6 | - |
MT7 |
PDF DWG |
|
|

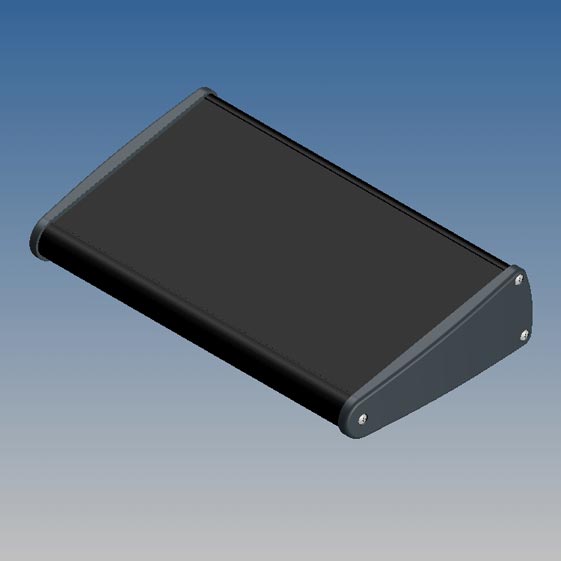

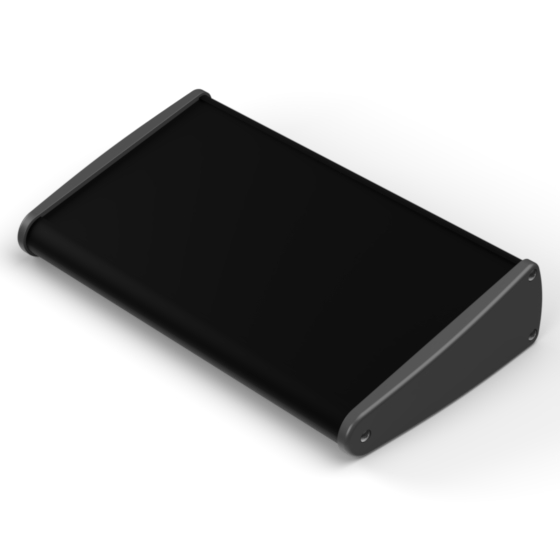

TEKAL-33SP.29 | 8,307 | 4,764 | 1,732 |
9004 7012 |
ALLOY 6060 - 1640 AS | 7,874 | 3,937 | - |
MT7 |
PDF DWG |
||
|

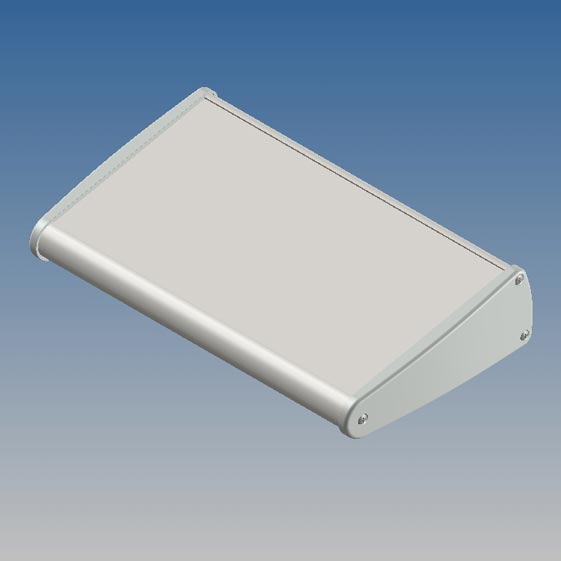

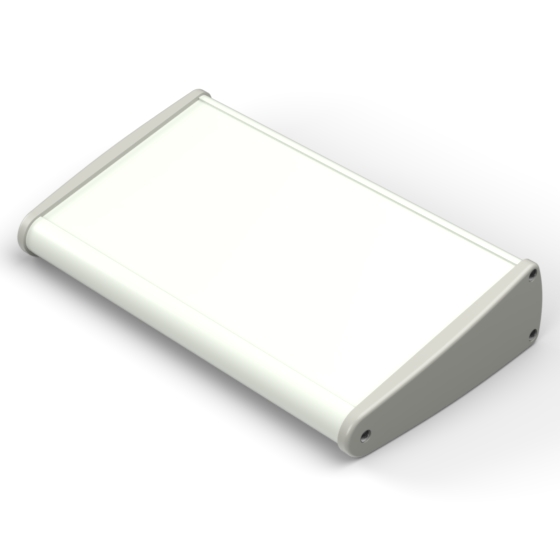

TEKAL-33SP.30 | 8,307 | 4,764 | 1,732 |
9002 9018 |
ALLOY 6060 - 1640 AS | 7,874 | 3,937 | - |
MT7 |
PDF DWG |
