Description

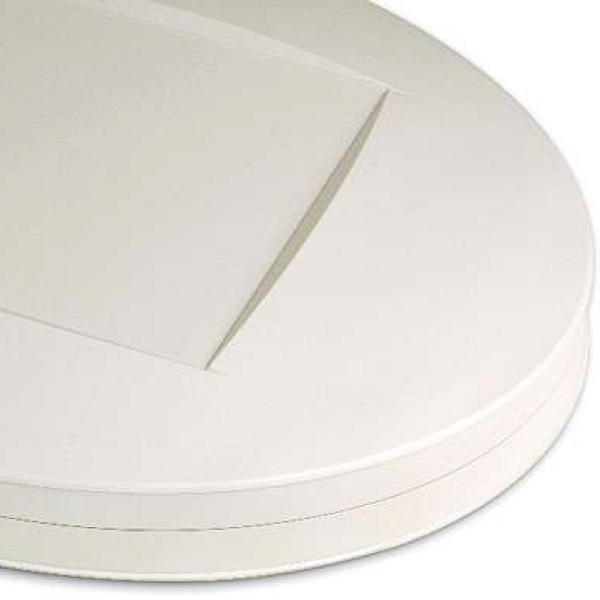

Ergonomically shaped ABS enclosures, ideal for desktop and wall mounting applications. The model “DOMO2” has on the cover a recessed area suitable for a keypad membrane or 5,4” TFT display. Base and cover have integral PCB mounting studs. Rear plastic panel for easy cables and connectors access. Matt surface finish. Closing by four screws. Upon request wall-suspension element “MT4.0”.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

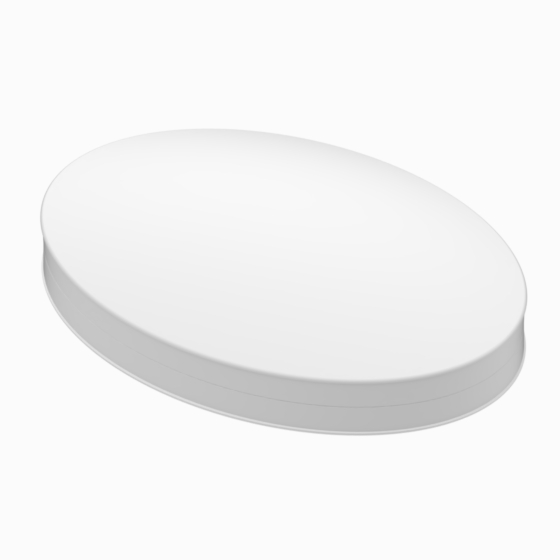

DOMO1.7 | 9,842 | 7,087 | 2,264 |
9002 |
UG UV 0120 | 6,142/7,638 | 5,118/4,016 | 4 | - |
MT4 |
PDF DWG |
View
|
|

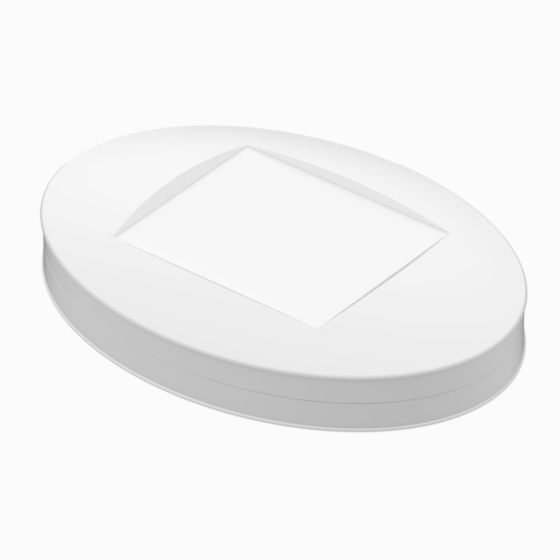

DOMO2.7 | 9,842 | 7,087 | 2,106 |
9002 |
UG UV 0120 | 6,142/7,638 | 5,118/4,016 | 4 | - |
MT4 |
PDF DWG |
View
|
