Description

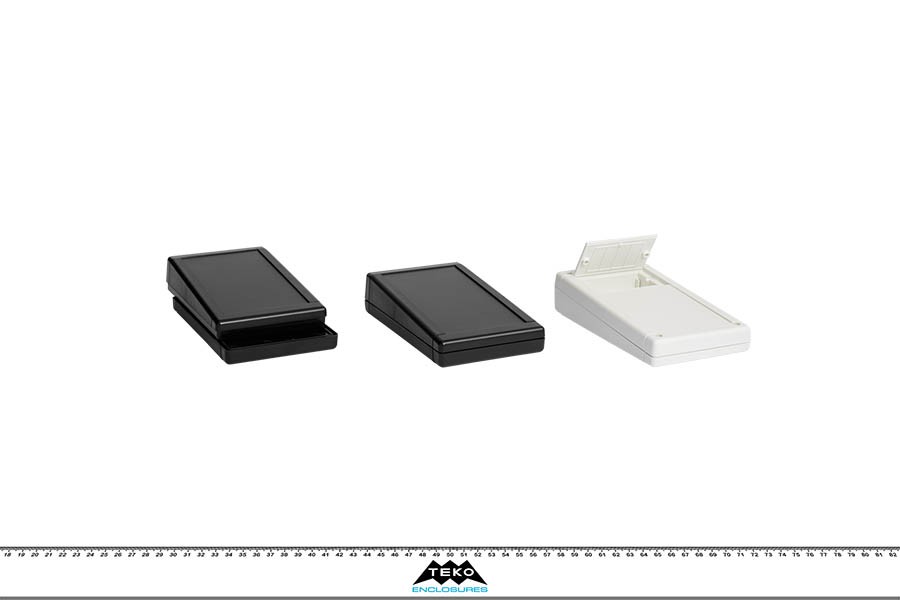

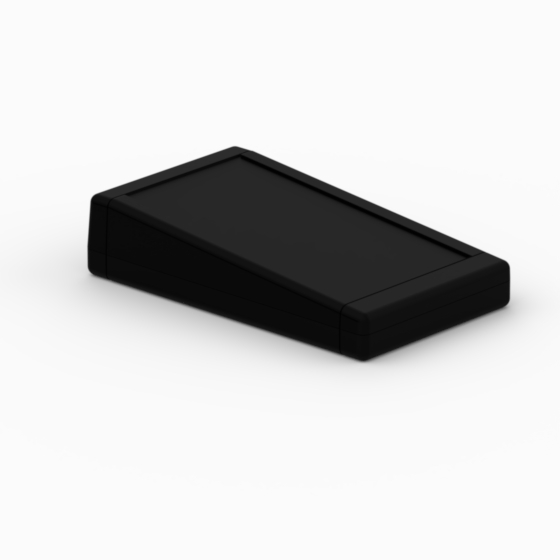

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

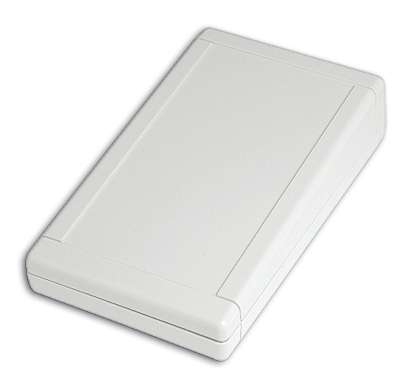

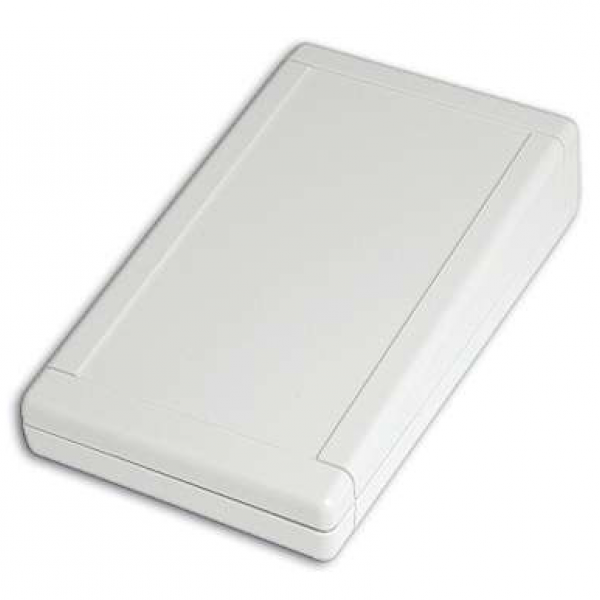

TB-1S.7 | 6,299 | 3,701 | 1,437 |
9002 |
FORMACROM 9249FC | 5,866 | 3,150 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|
TB-1S.9 | 6,299 | 3,701 | 1,437 |
9004 |
TERLURAN GP-35 | 5,866 | 3,150 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

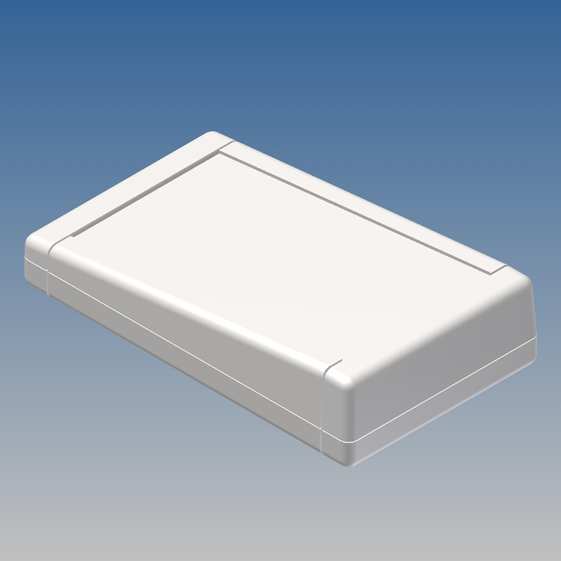

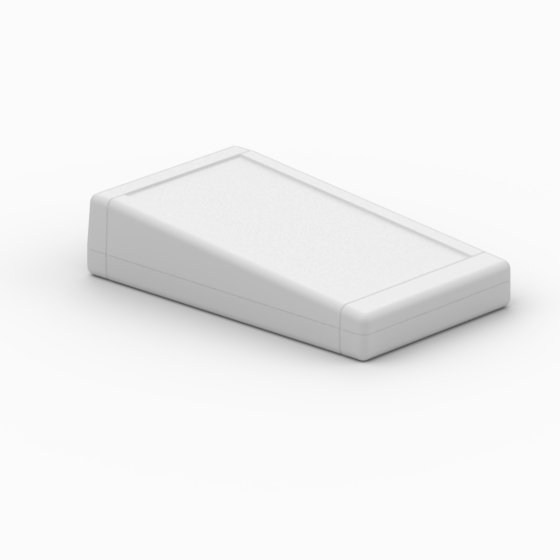

TB-1SB.7 | 6,299 | 3,701 | 1,437 |
9002 |

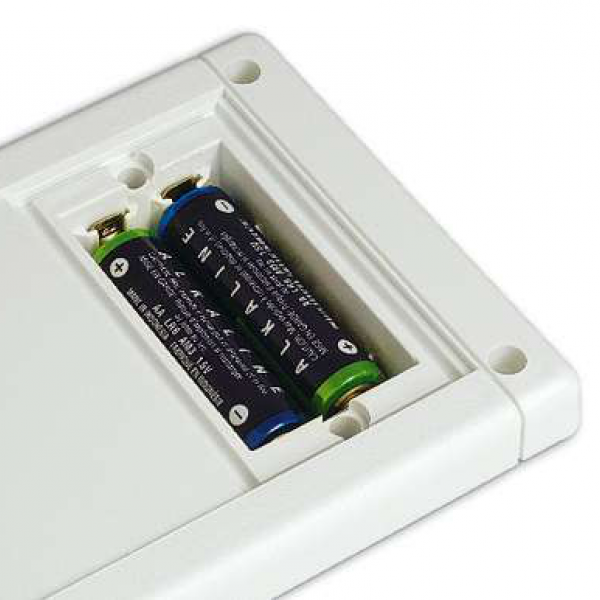

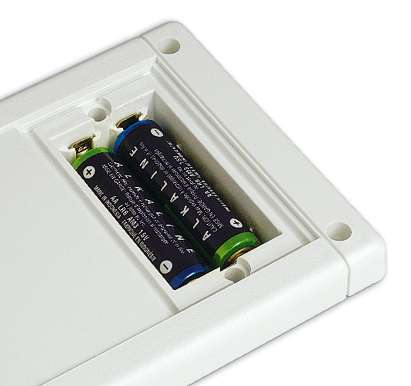

FORMACROM 9249FC | 3,858 | 3,150 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
|
|

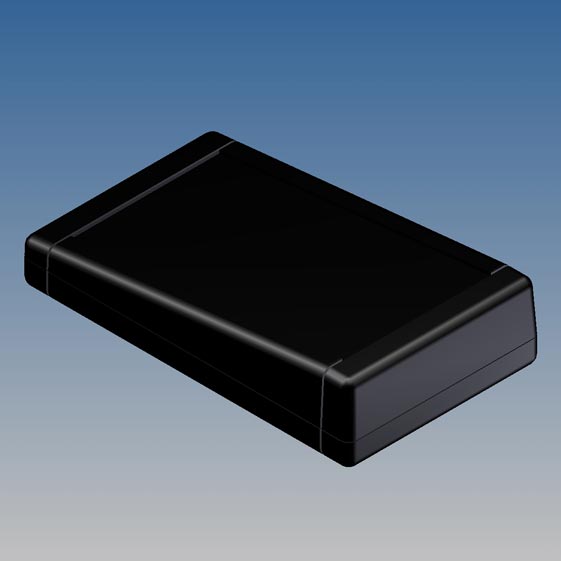

TB-1SB.9 | 6,299 | 3,701 | 1,437 |
9004 |
TERLURAN GP-35 | 3,858 | 3,150 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
