Description

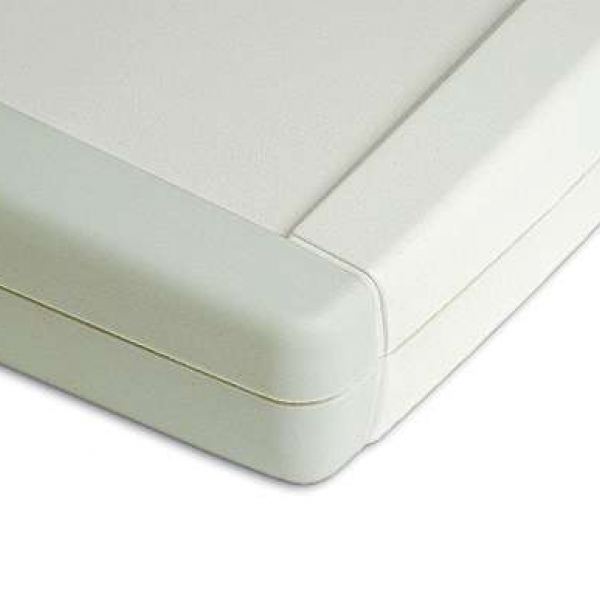

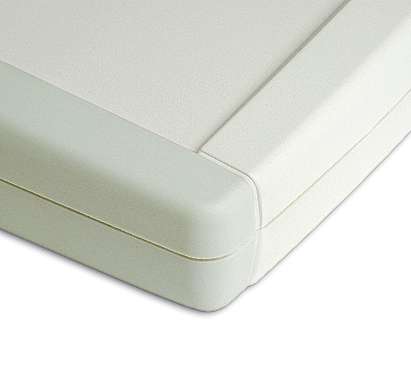

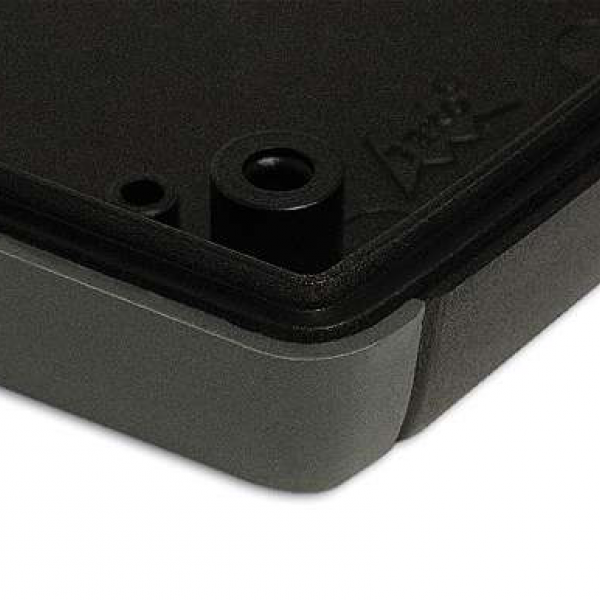

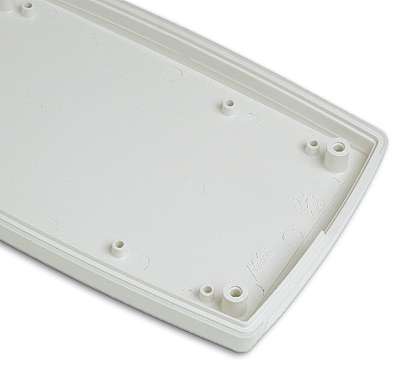

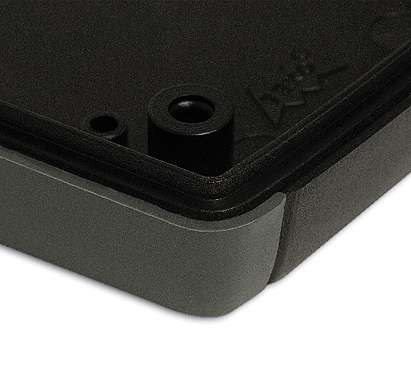

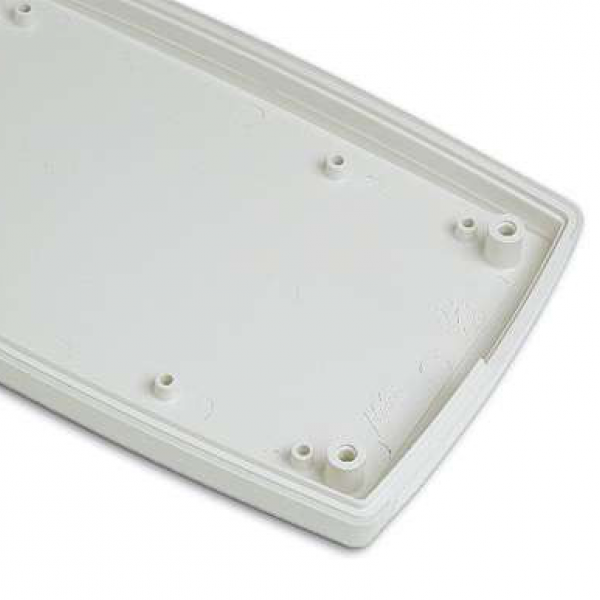

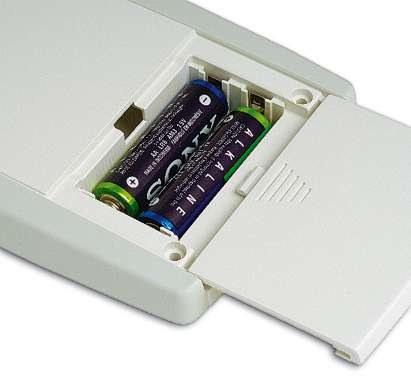

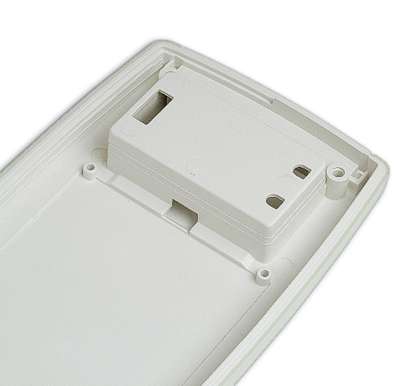

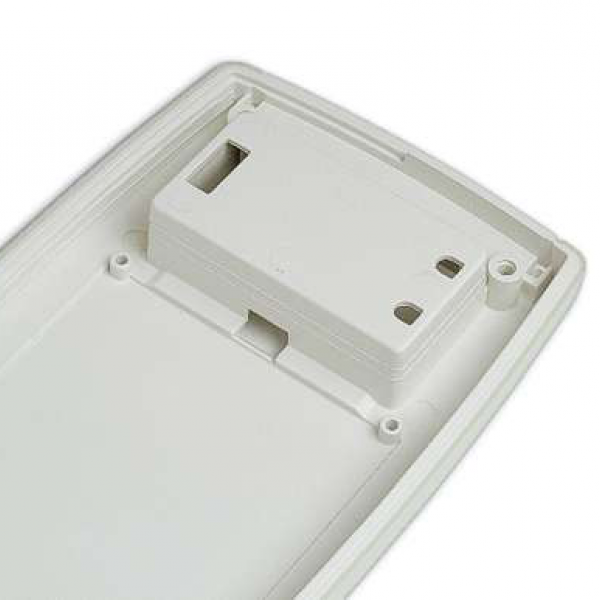

ABS enclosures with new soft-touch contoured shape. By utilising multi-shot moulding technique, Teknet features an ergonomic design of elastomer grips (TPU) on the side of the case. The models with “-B” have a battery compartment for two 1.5V mignon-cells (AA) or one 9V flat battery (PP3). The models with “-B2” have a battery compartment for four mignon cells 1,5V (AA) or two flat batteries 9V (PP3). Matt surface finish. Closing by four screws. Upon request aluminium panel “APTB”, Keypad membrane “M” or “MW” (with transparent display area).
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

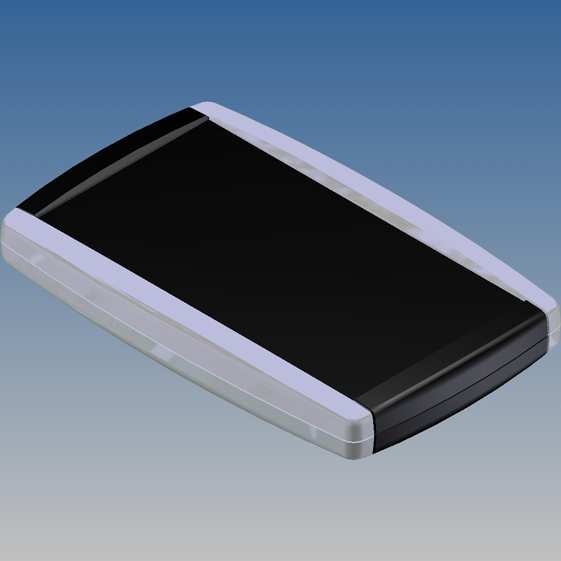

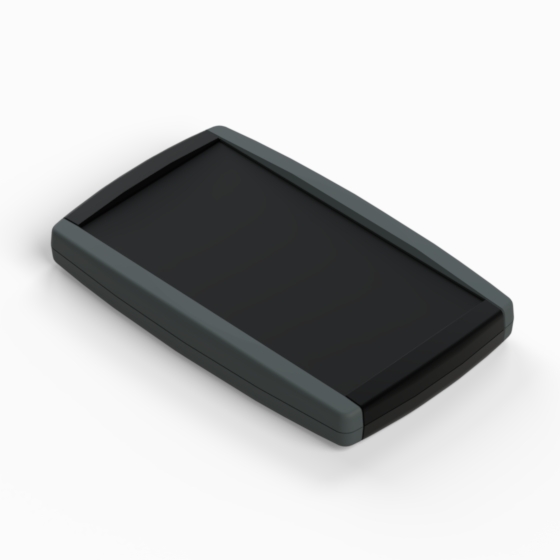

TN11.29 | 6,102 | 3,78 | 0,795 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

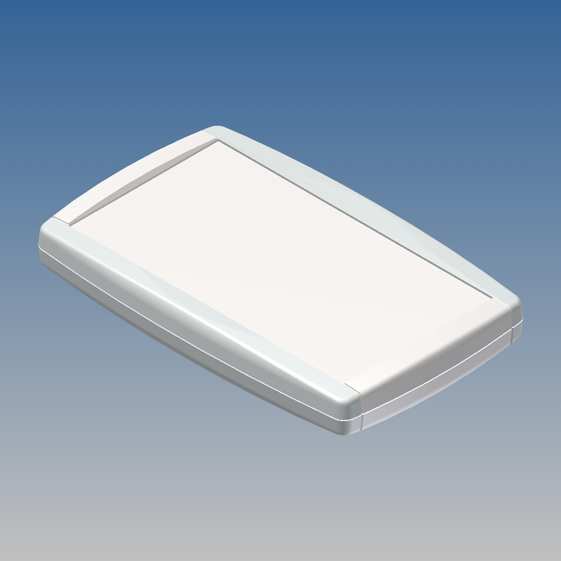

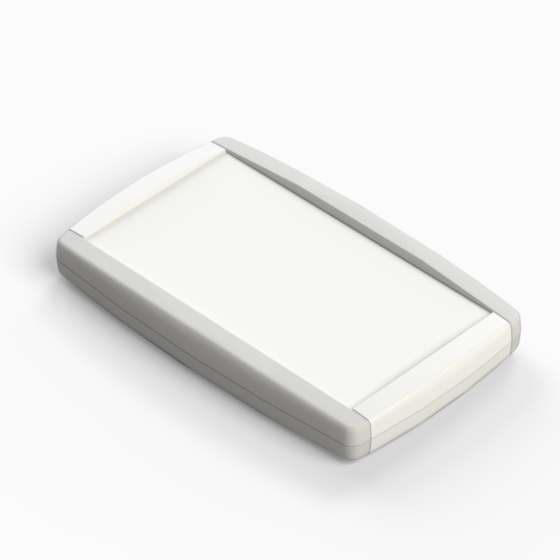

TN11.30 | 6,102 | 3,78 | 0,795 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

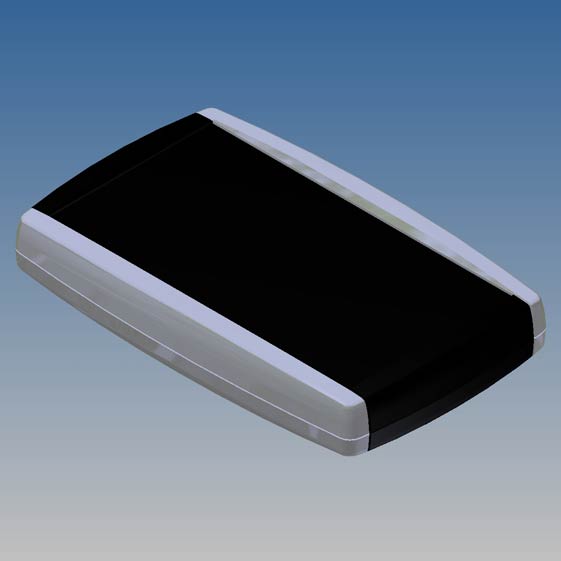

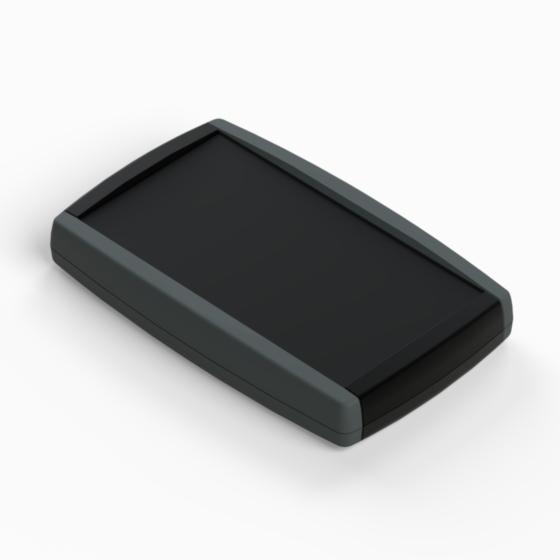

TN12.29 | 6,102 | 3,78 | 0,953 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

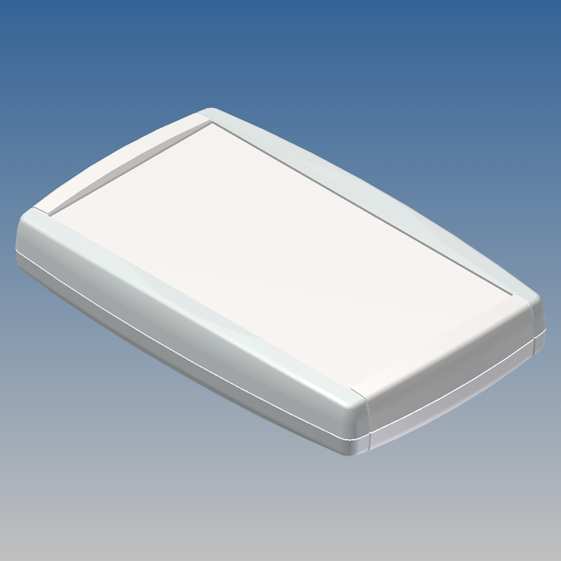

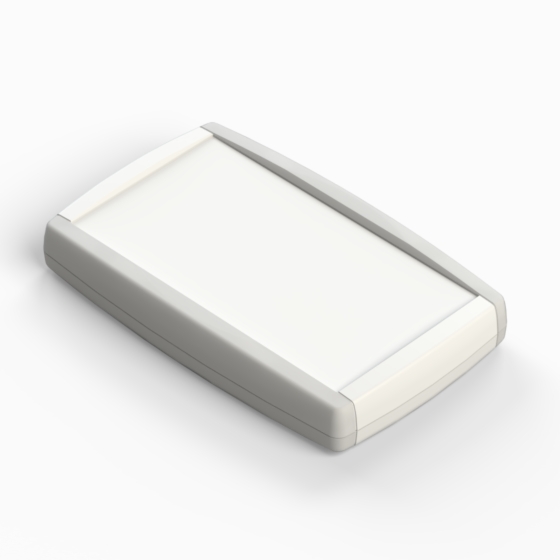

TN12.30 | 6,102 | 3,78 | 0,953 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

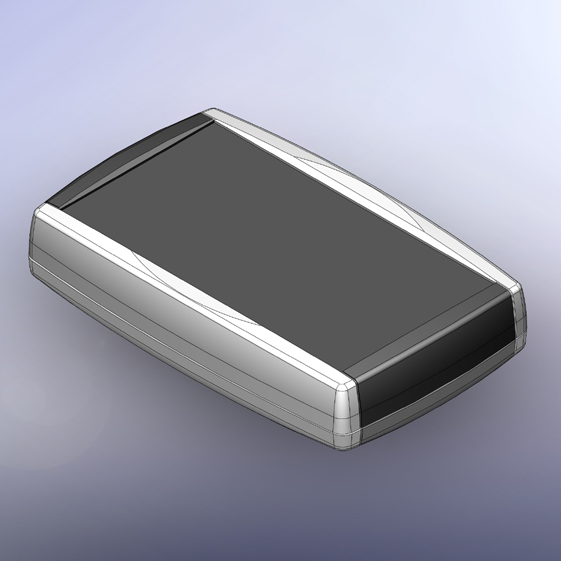

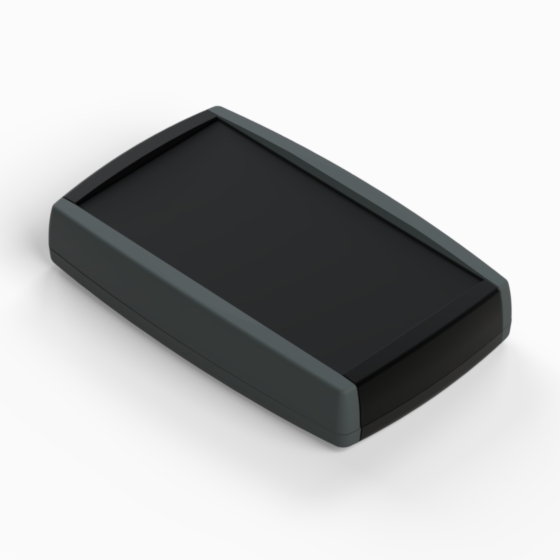

TN13.29 | 6,102 | 3,78 | 1,205 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

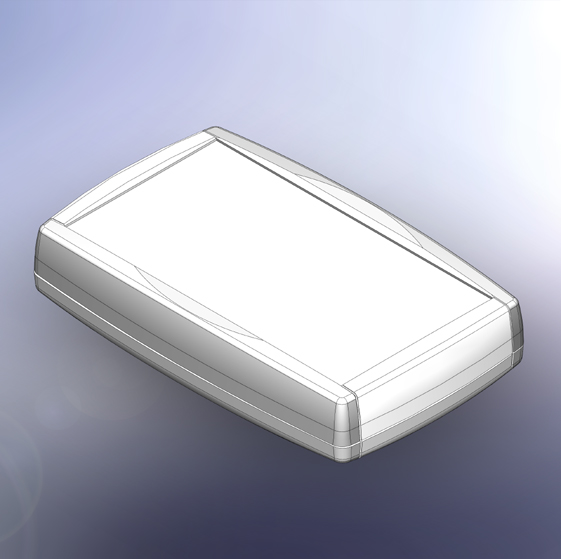

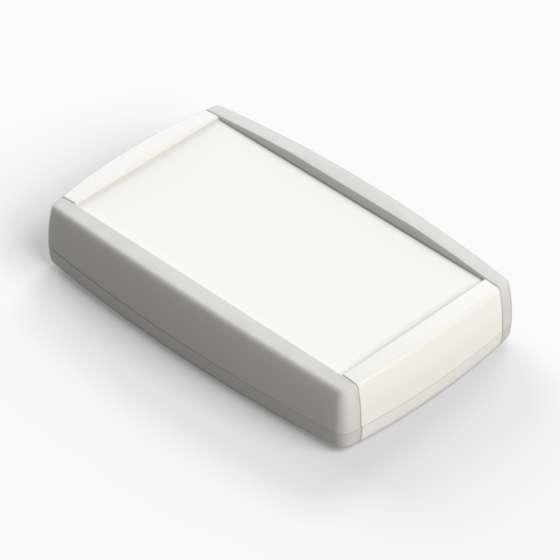

TN13.30 | 6,102 | 3,78 | 1,205 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

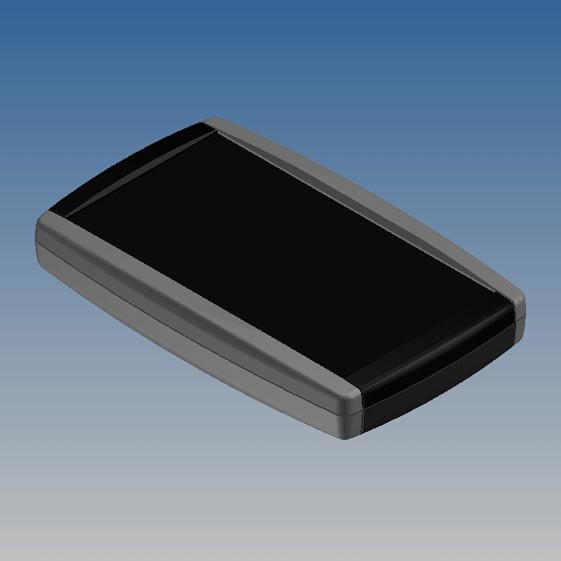

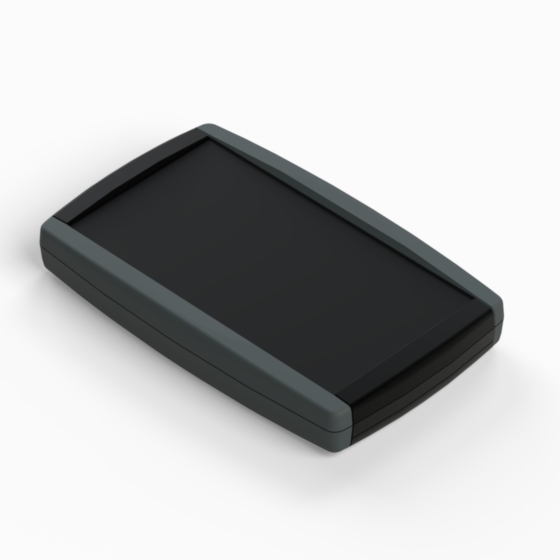

TN21-B.29 | 6,102 | 3,78 | 0,953 |
9004 7012 |
P2H-AT - 8020 | 3,740 | 3,031 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

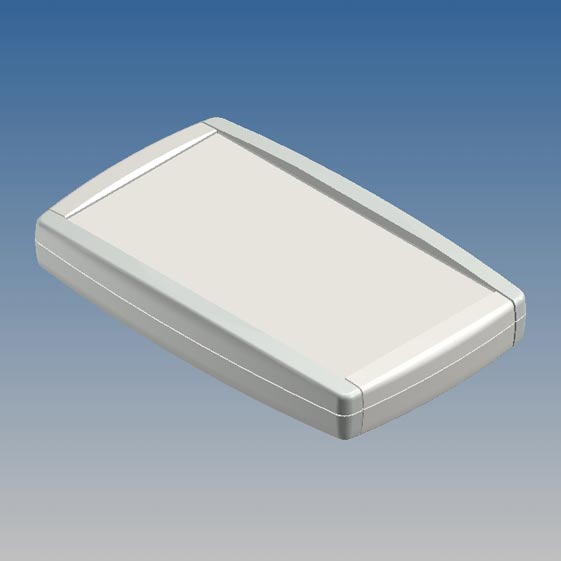

TN21-B.30 | 6,102 | 3,78 | 0,953 |
9002 9018 |
P2H-AT - 8020 | 3,740 | 3,031 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

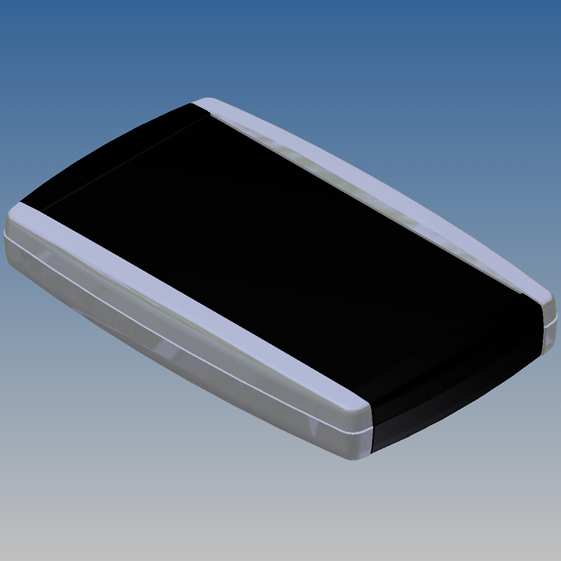

TN21-B2.29 | 6,102 | 3,78 | 0,953 |
9004 7012 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

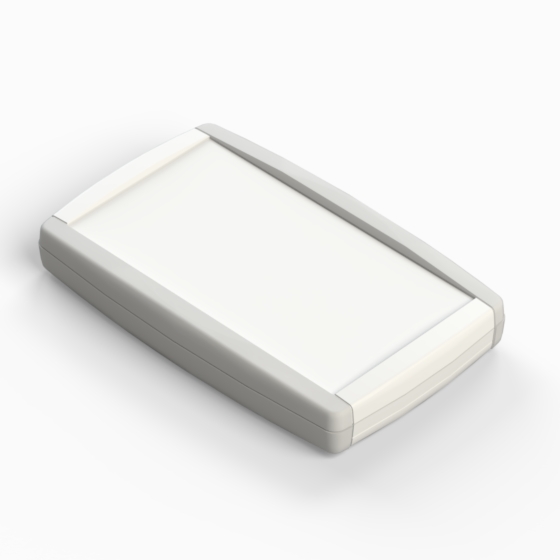

TN21-B2.30 | 6,102 | 3,78 | 0,953 |
9002 9018 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|
TN22.29 | 6,102 | 3,78 | 1,11 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

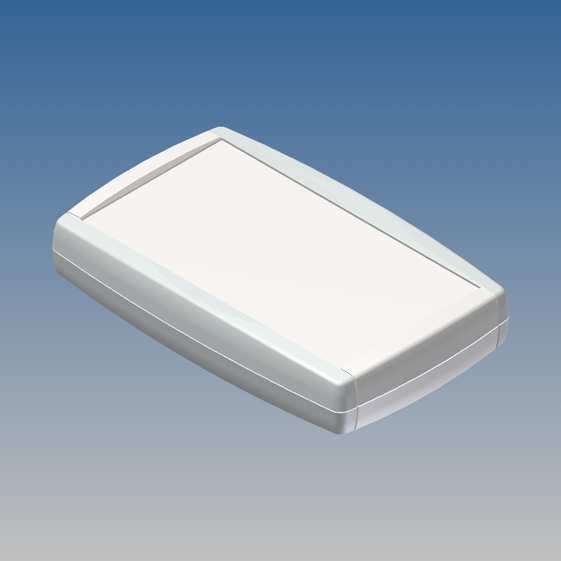

TN22.30 | 6,102 | 3,78 | 1,11 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
M M58 M59 |
PDF DWG |
|
|

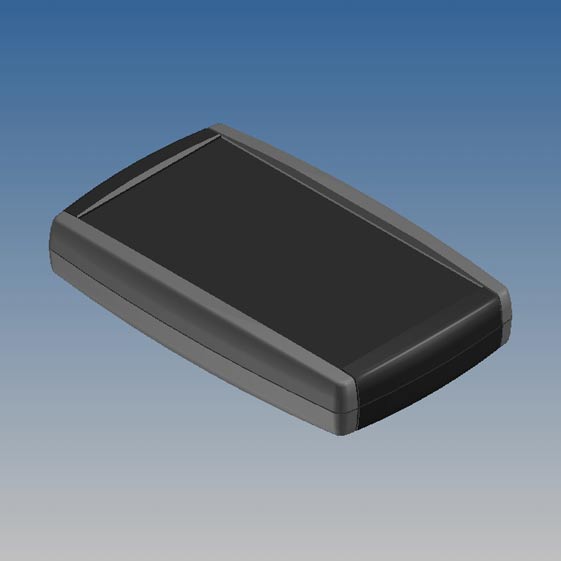

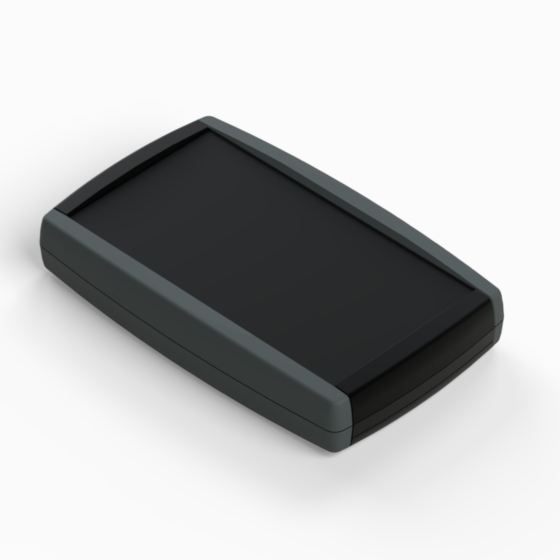

TN22-B.29 | 6,102 | 3,78 | 1,11 |
9004 7012 |
P2H-AT - 8020 | 3,740 | 3,031 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|
TN22-B.30 | 6,102 | 3,78 | 1,11 |
9002 9018 |
P2H-AT - 8020 | 3,740 | 3,031 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

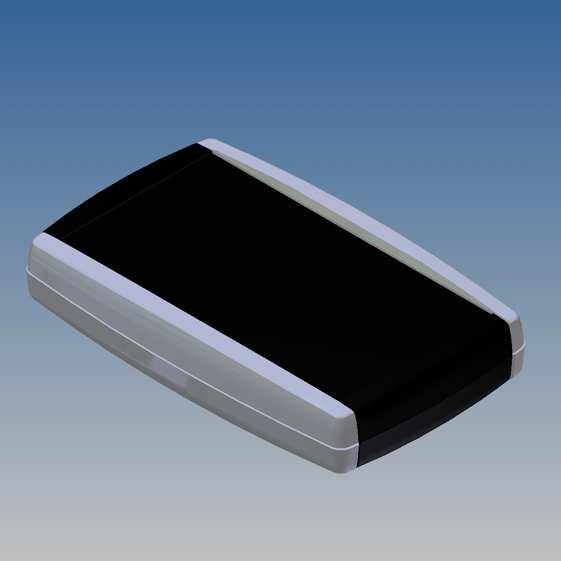

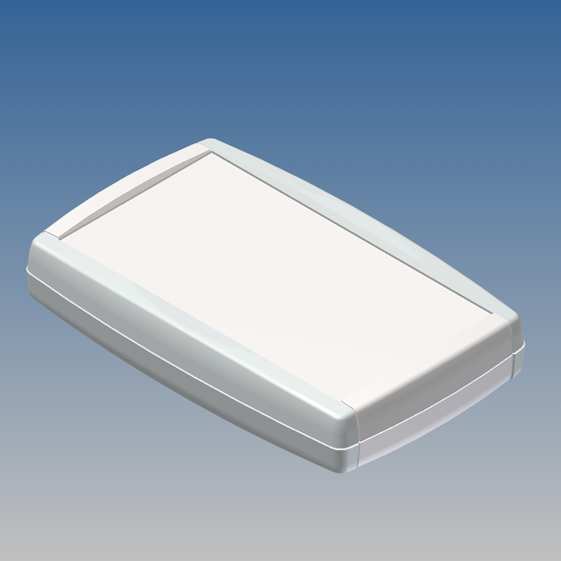

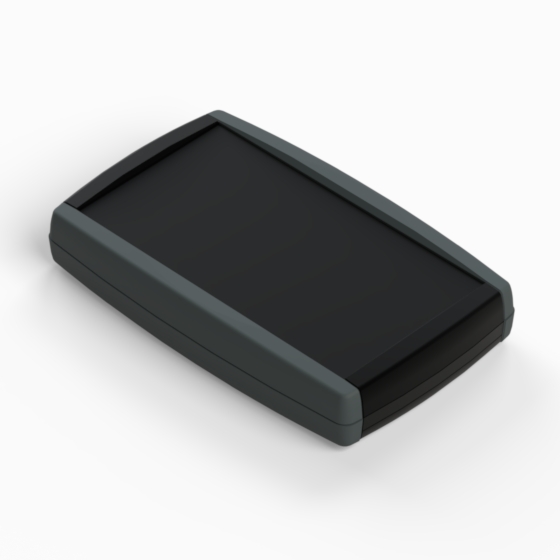

TN22-B2.29 | 6,102 | 3,78 | 1,11 |
9004 7012 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|
TN22-B2.30 | 6,102 | 3,78 | 1,11 |
9002 9018 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

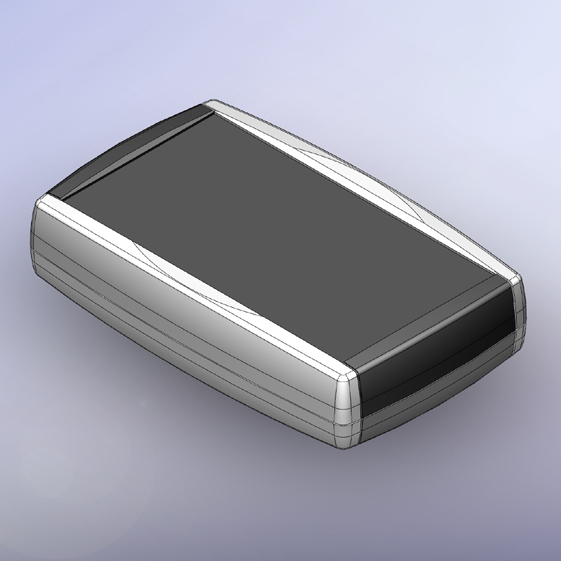

TN23.29 | 6,102 | 3,78 | 1,378 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 |
M M58 M59 |
PDF DWG |
||
|

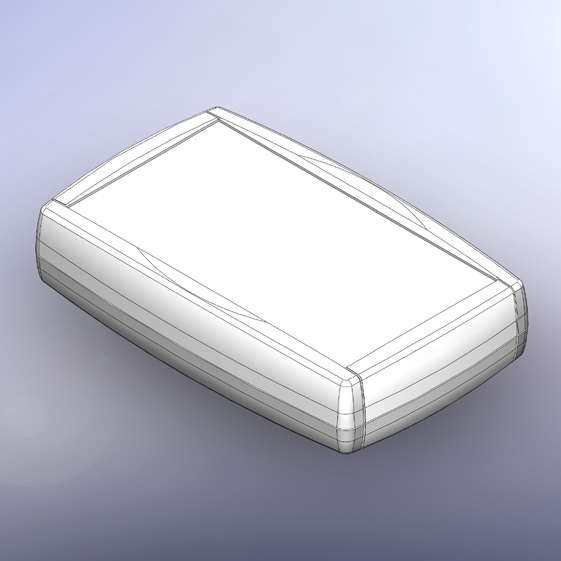

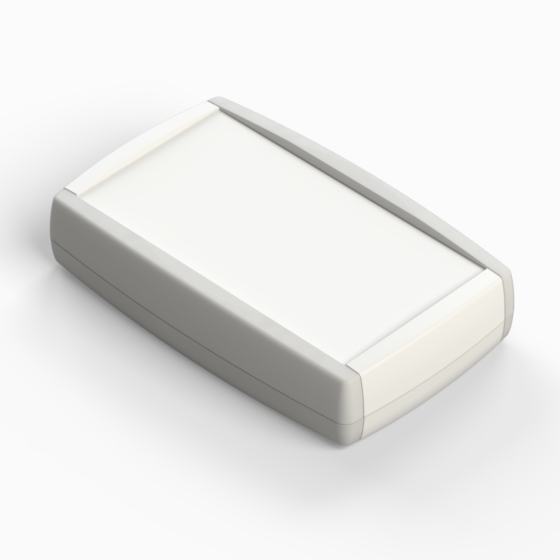

TN23.30 | 6,102 | 3,78 | 1,378 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 |
M M58 M59 |
PDF DWG |
||
|

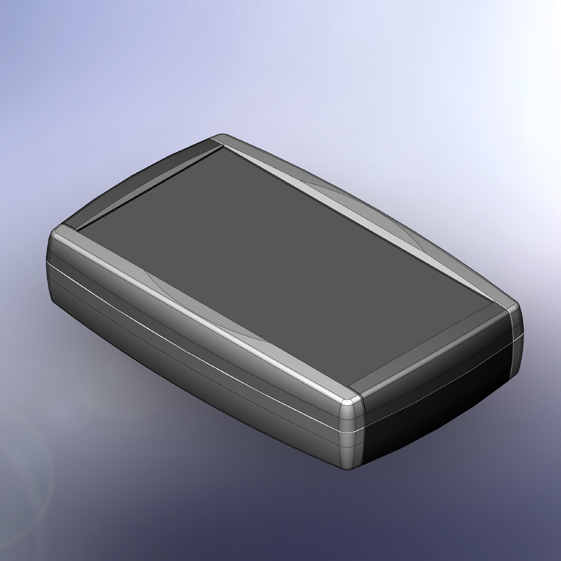

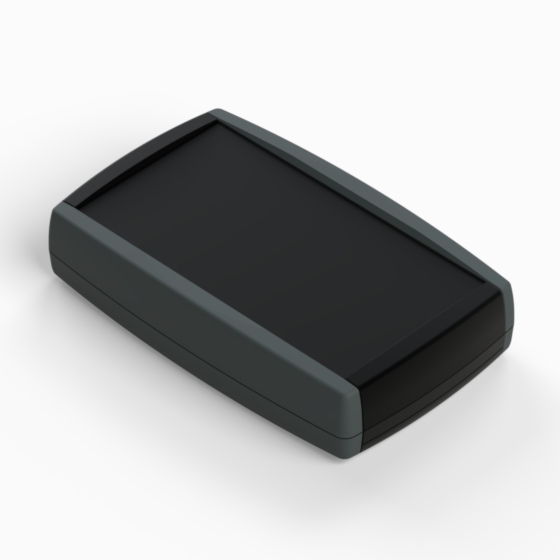

TN23-B.29 | 6,102 | 3,78 | 1,378 |
9004 7012 |
P2H-AT - 8020 | 3,74 | 3,031 | 4 | 2 x AA / 1 x 9V |
M M58 M59 |
PDF DWG |
|
|

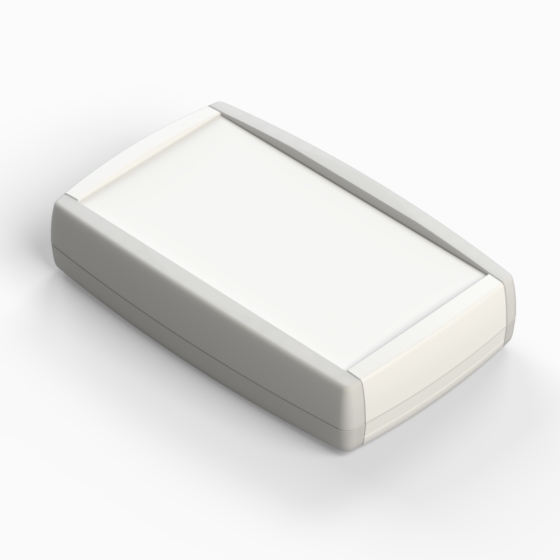

TN23-B.30 | 6,102 | 3,78 | 1,378 |
9002 9018 |
P2H-AT - 8020 | 3,74 | 3,031 | 4 | 2 x AA / 1 x 9V |
M M58 M59 |
PDF DWG |
|
|

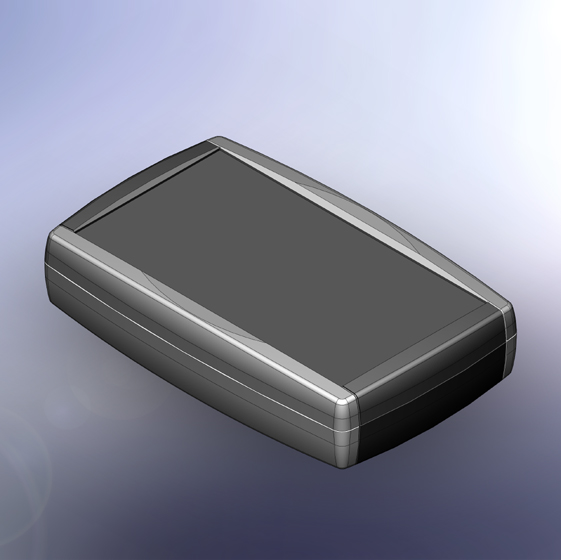

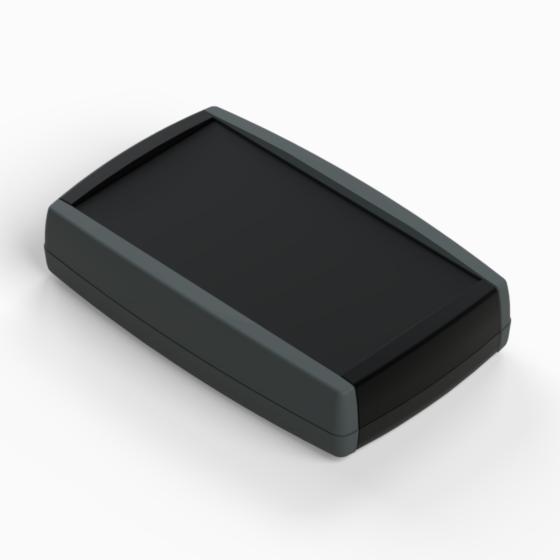

TN23-B2.29 | 6,102 | 3,78 | 1,378 |
9004 7012 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
M M58 M59 |
PDF DWG |
|
|

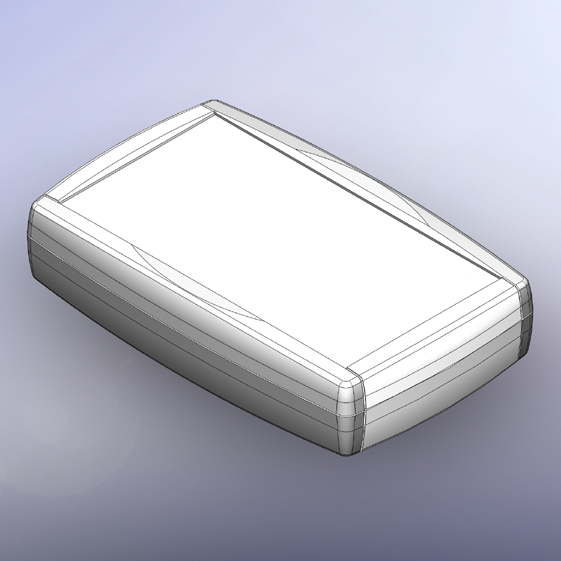

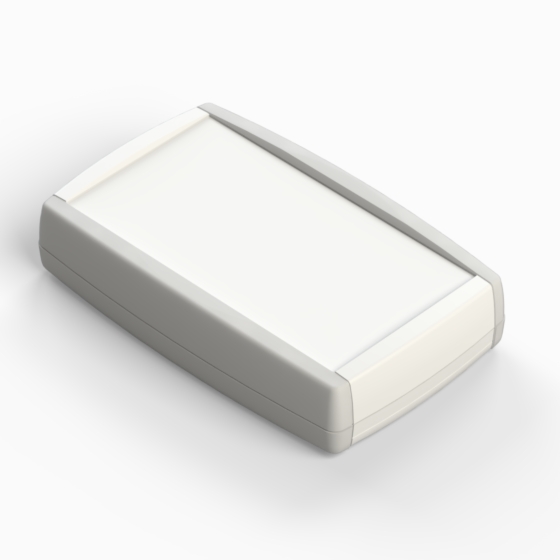

TN23-B2.30 | 6,102 | 3,78 | 1,378 |
9002 9018 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
M M58 M59 |
PDF DWG |
|
|

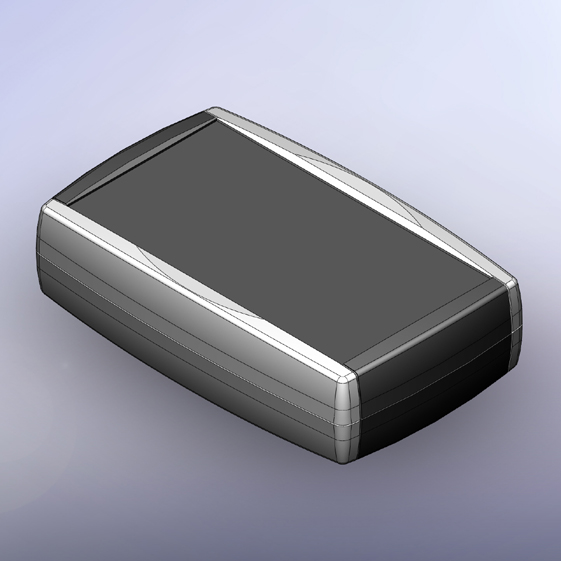

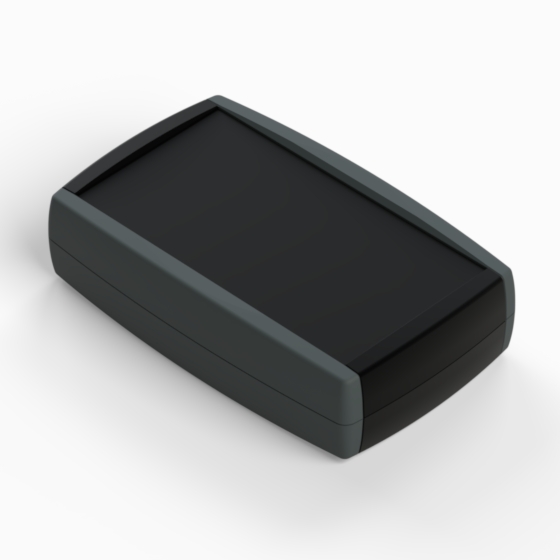

TN33.29 | 6,102 | 3,78 | 1,598 |
9004 7012 |
P2H-AT | 5,433 | 3,031 | 4 |
M M58 M59 |
PDF DWG |
||
|

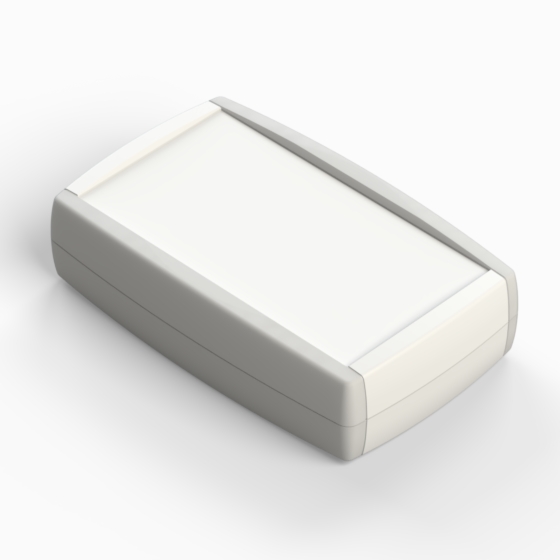

TN33.30 | 6,102 | 3,78 | 1,598 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 |
M M58 M59 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
