Description

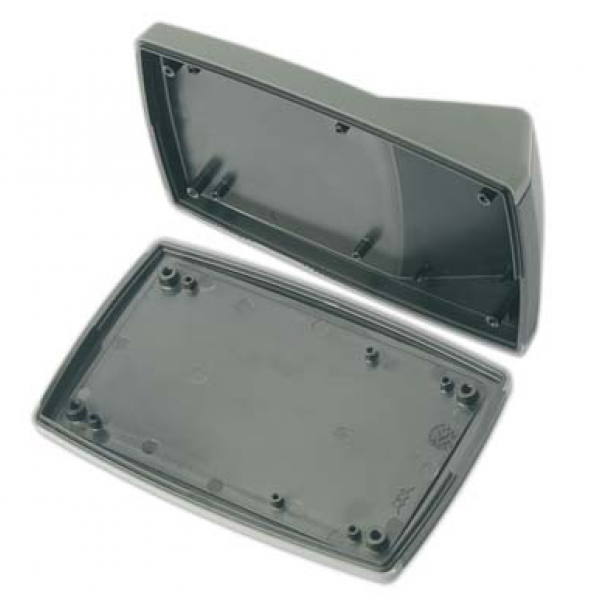

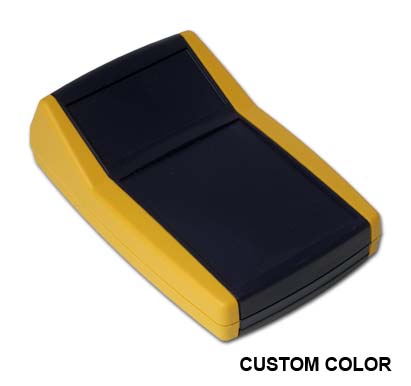

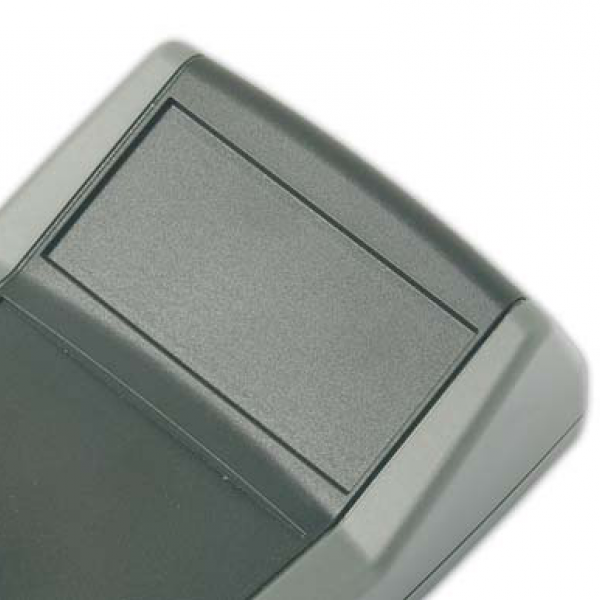

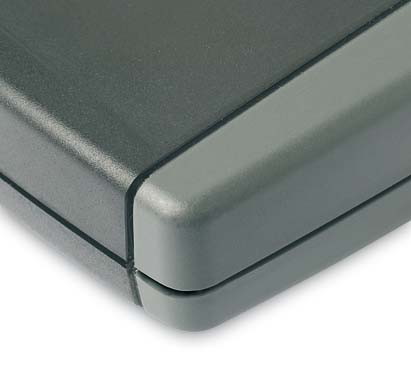

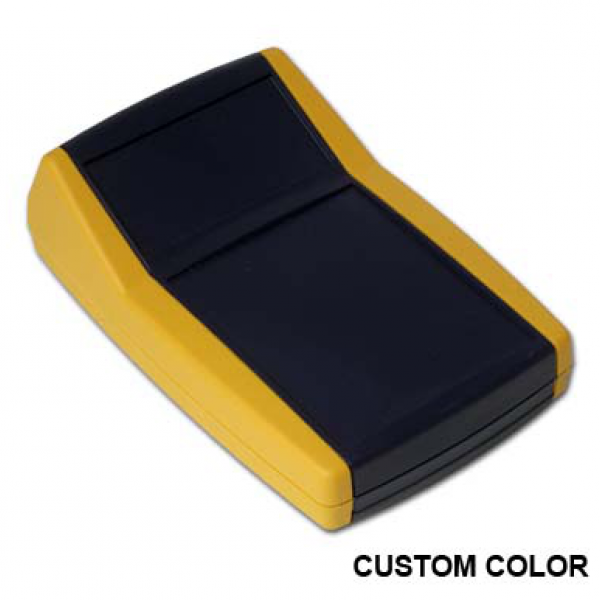

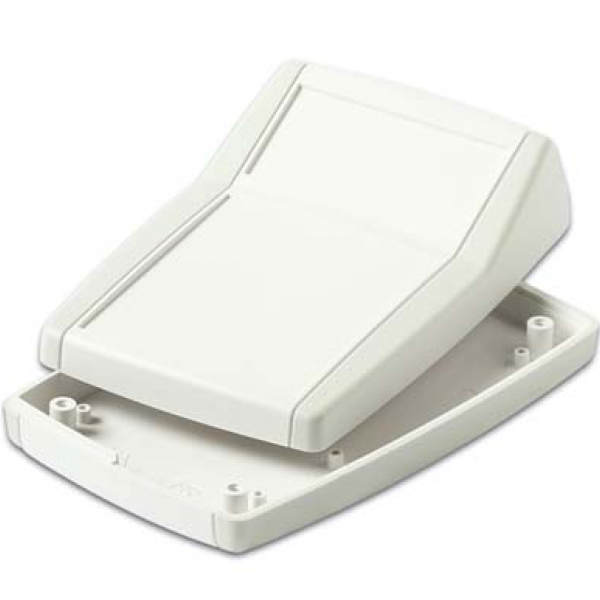

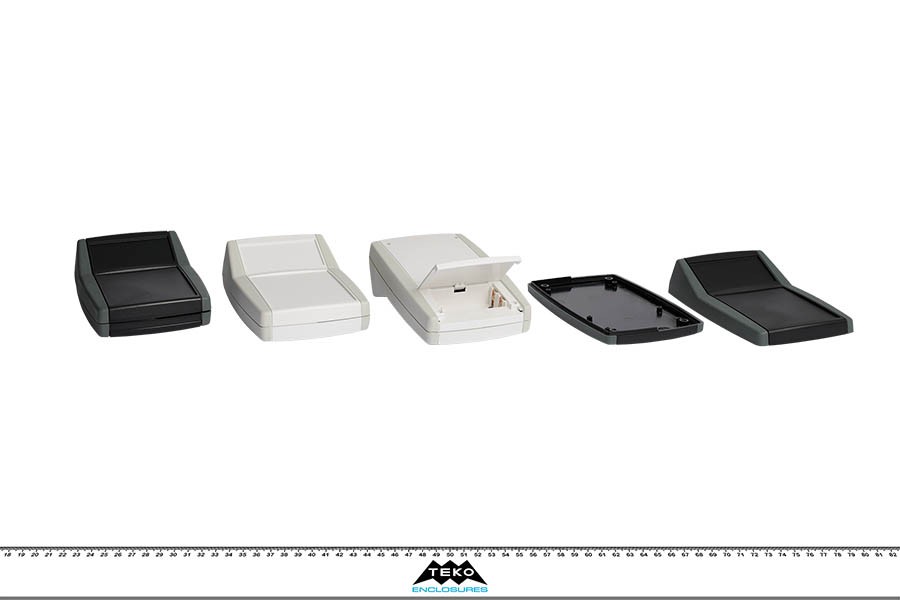

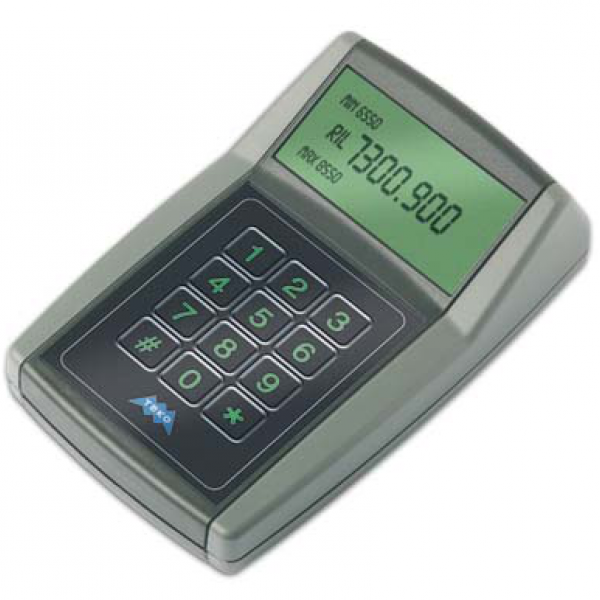

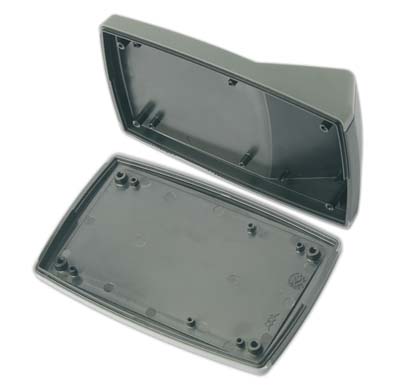

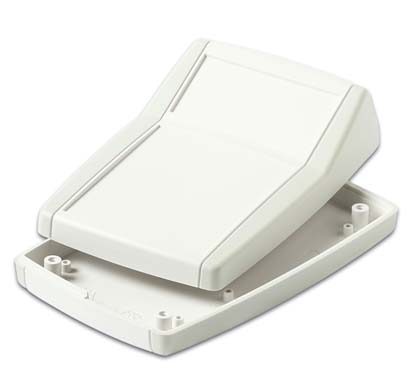

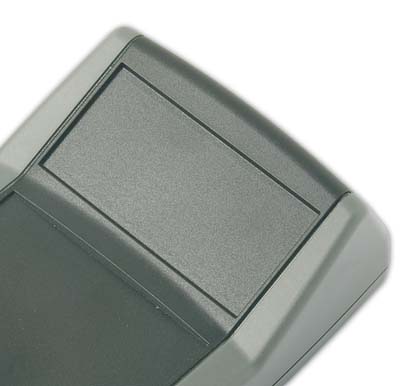

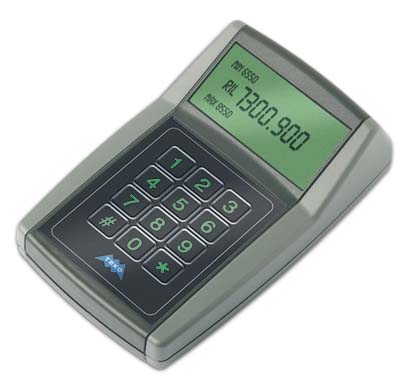

ABS Hand-Held enclosure with soft-touch elastomer grips (TPU) on the side. Matt surface, recessed area for membrane keyboard or displays. The models with “B” have a battery compartment for two 1,5V mignon cells (AA) or one 9V battery (PP3). The models with “B2” have a battery compartment for four 1,5V mignon cells (AA) or two 9V batteries. Closing by four screws. Two combinations of colours: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

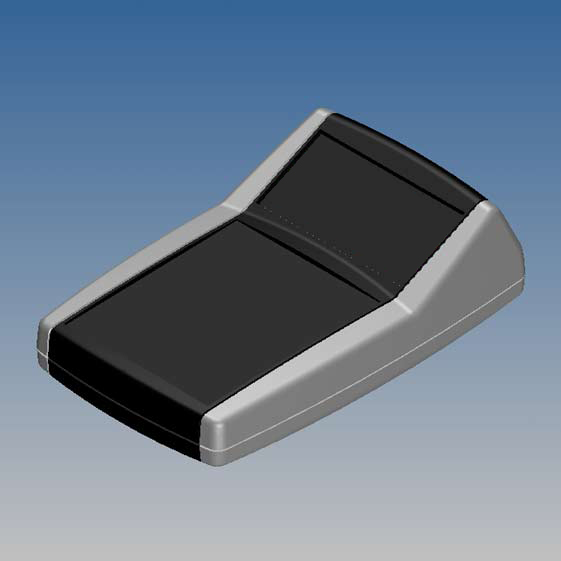

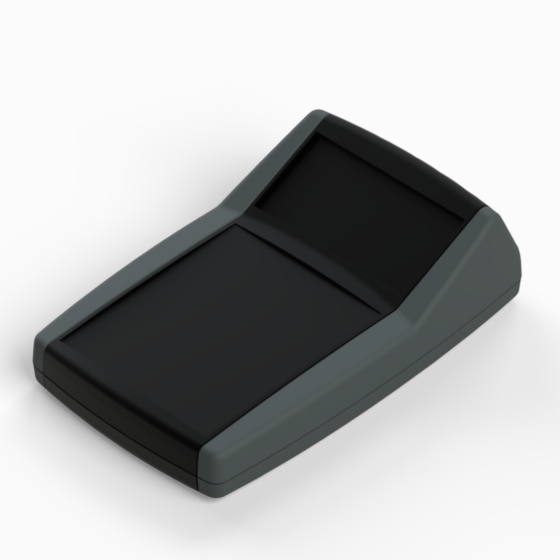

TNP21.29 | 5,906 | 3,78 | 1,811 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
PDF DWG |
||
|

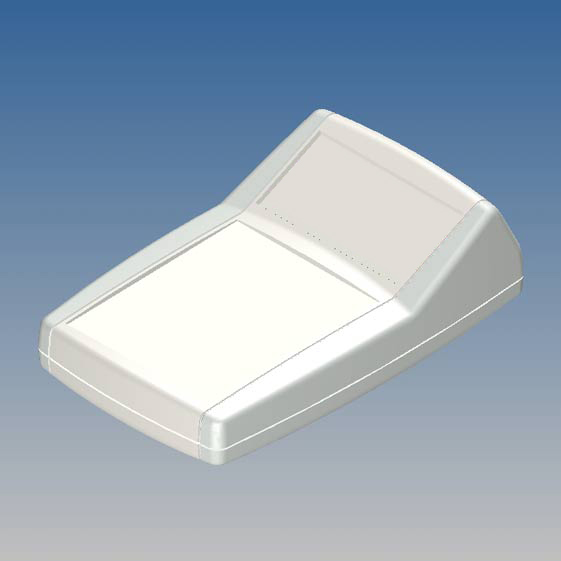

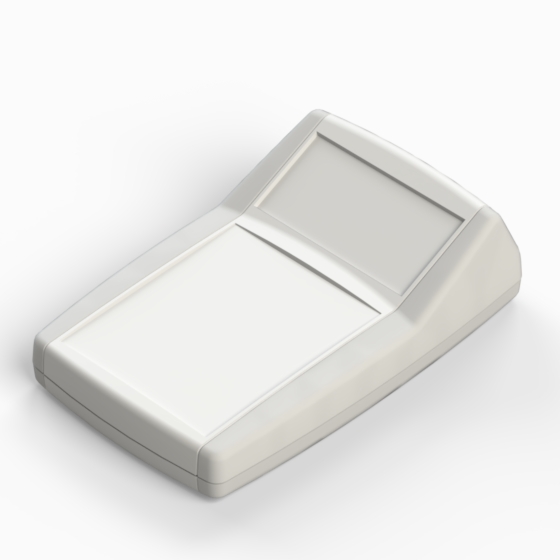

TNP21.30 | 5,906 | 3,78 | 1,811 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
PDF DWG |
||
|

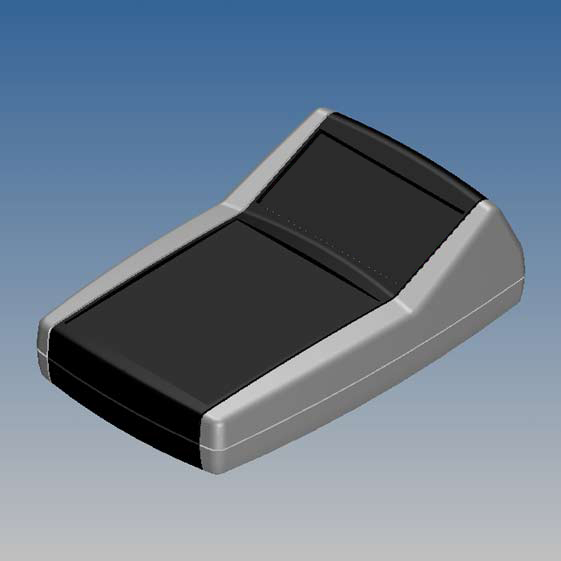

TNP22.29 | 5,906 | 3,78 | 1,969 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
PDF DWG |
||
|

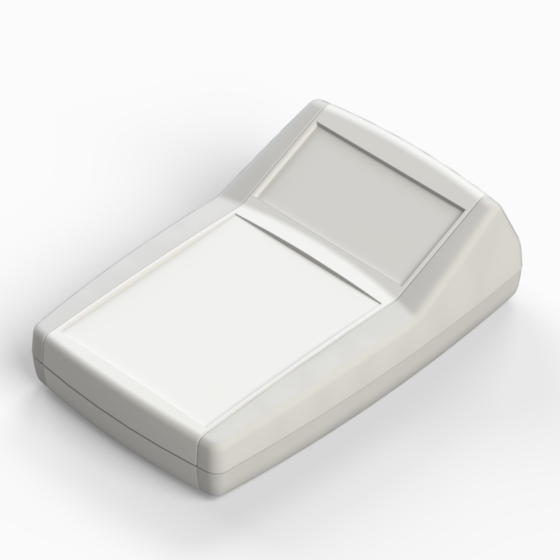

TNP22.30 | 5,906 | 3,78 | 1,969 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 | - |
PDF DWG |
||
|

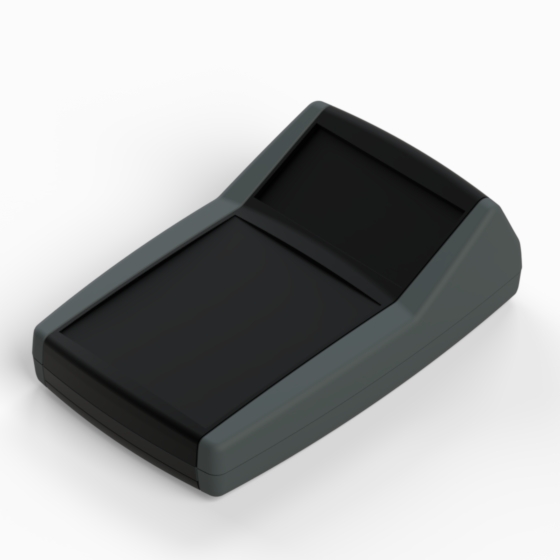

TNP22-B.29 | 5,906 | 3,78 | 1,969 |
9004 7012 |
P2H-AT - 8020 | 3,858 | 3,031 | 4 | 2 x AA / 1 x 9V |
AB9 |
PDF DWG |
|
|

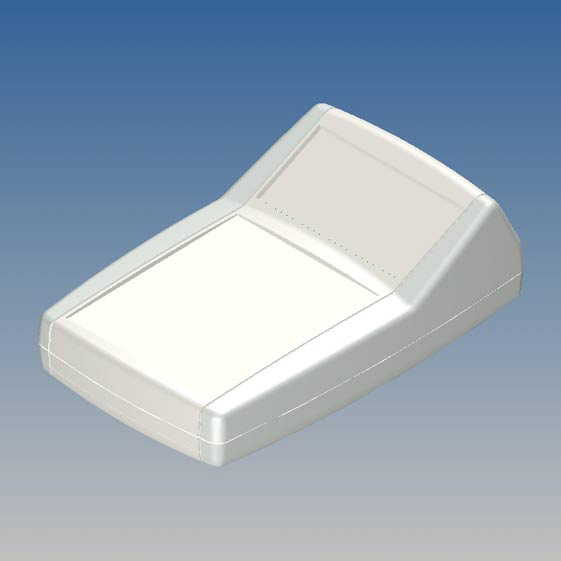

TNP22-B.30 | 5,906 | 3,78 | 1,969 |
9002 9018 |
P2H-AT - 8020 | 3,858 | 3,031 | 4 | 2 x AA / 1 x 9V |
AB9 |
PDF DWG |
|
|

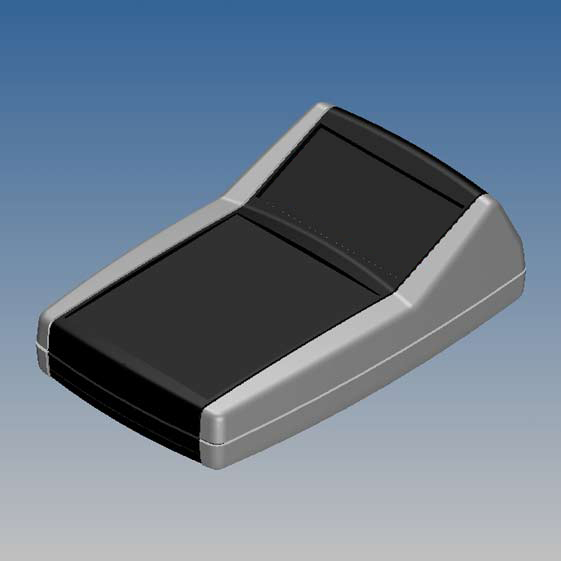

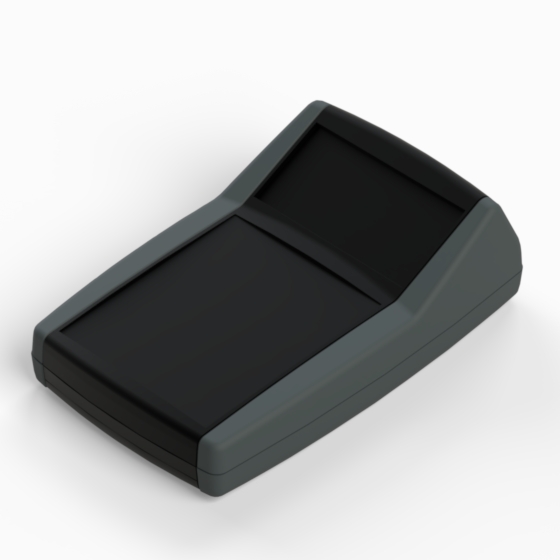

TNP22-B2.29 | 5,906 | 3,78 | 1,969 |
9004 7012 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
AB9 |
PDF DWG |
|
|
TNP22-B2.30 | 5,906 | 3,78 | 1,969 |
9002 9018 |
P2H-AT - 8020 | 3,189 | 2,323 | 4 | 4 x AA / 2 x 9V |
AB9 |
PDF DWG |
|
|

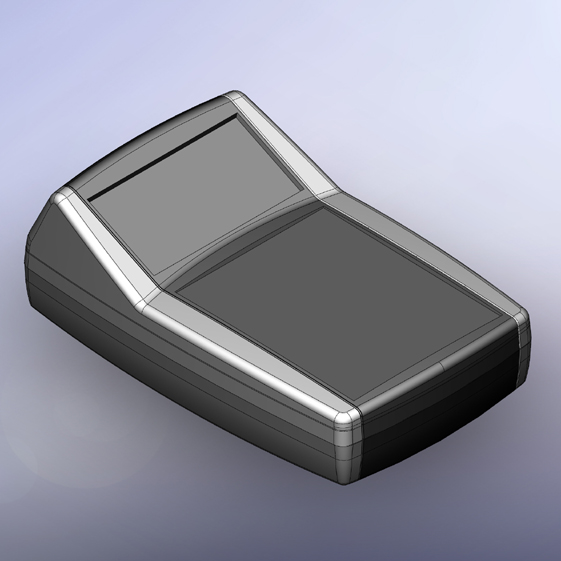

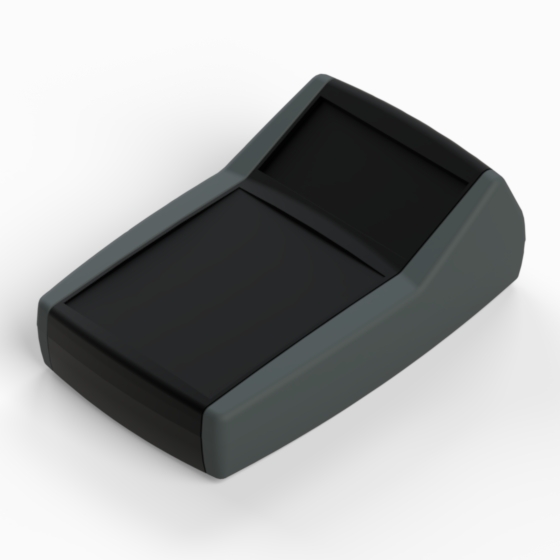

TNP23.29 | 6,102 | 3,74 | 2,165 |
9004 7012 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 |
PDF DWG |
|||
|

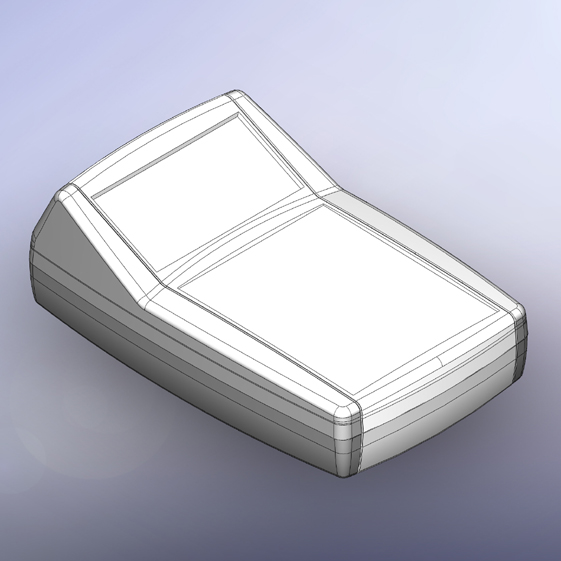

TNP23.30 | 6,102 | 3,74 | 2,165 |
9002 9018 |
P2H-AT - 8020 | 5,433 | 3,031 | 4 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
