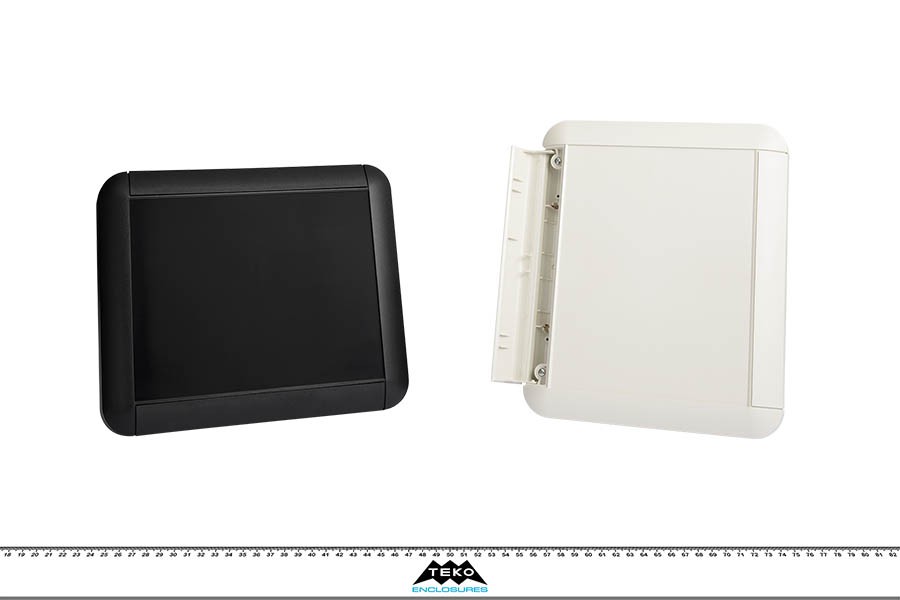

TEKWALL

Family Handheld - Electronic enclosures - Plastic

Description

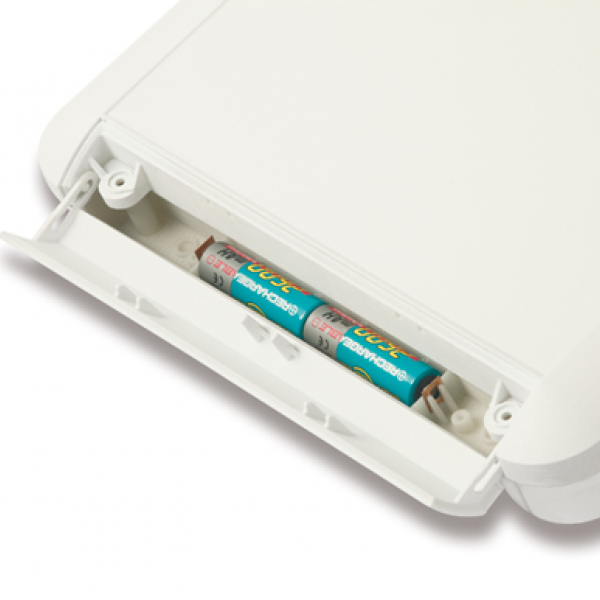

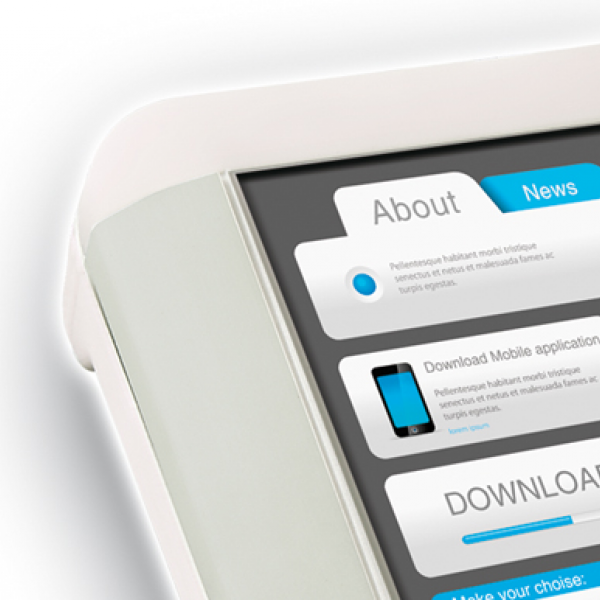

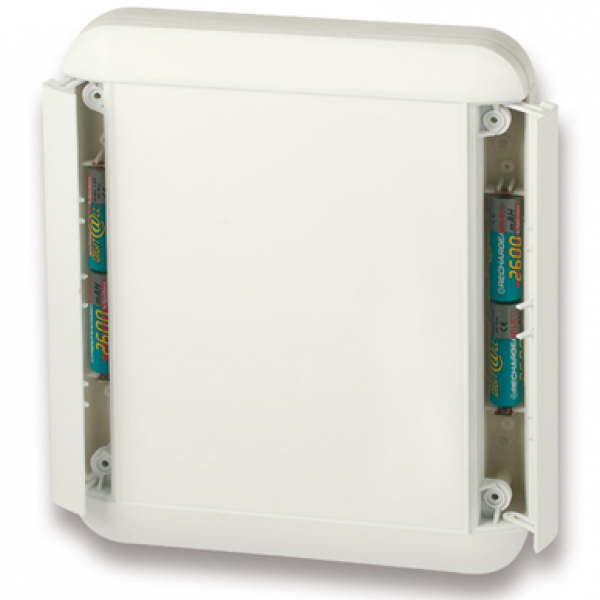

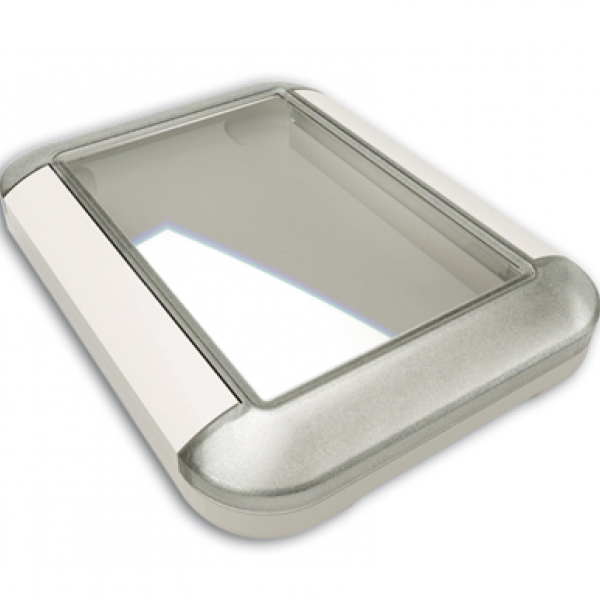

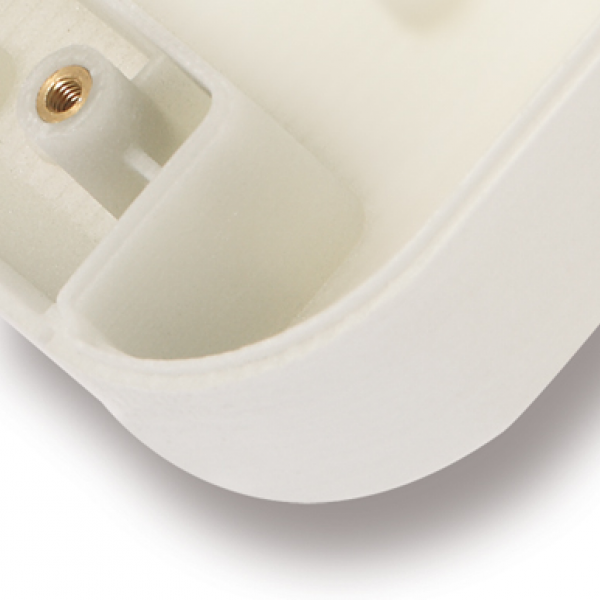

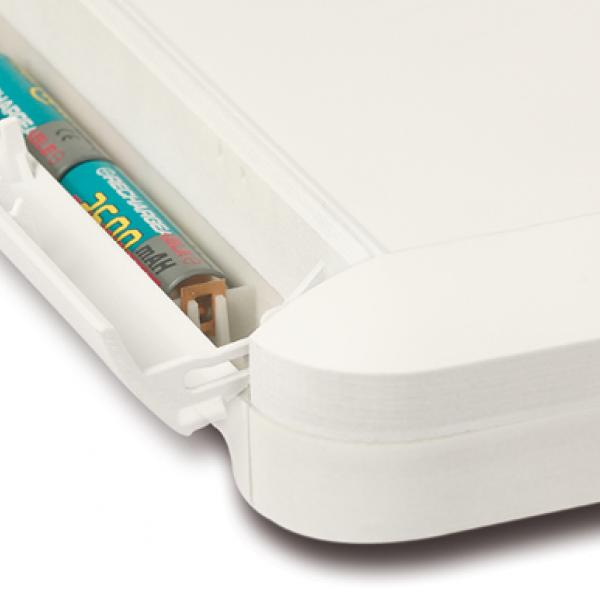

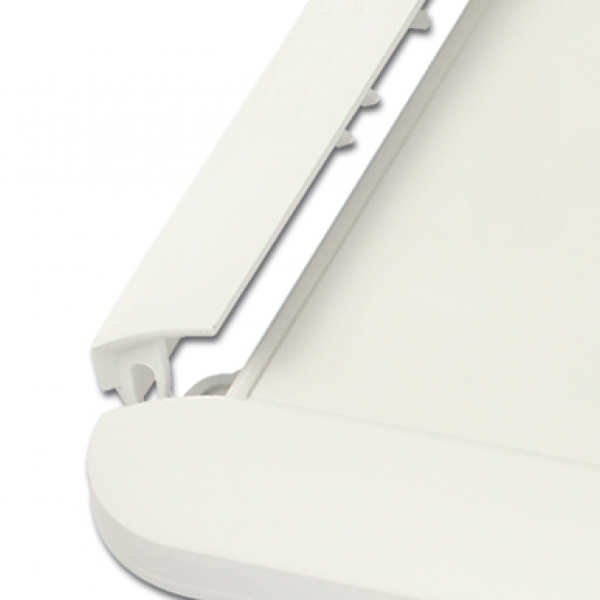

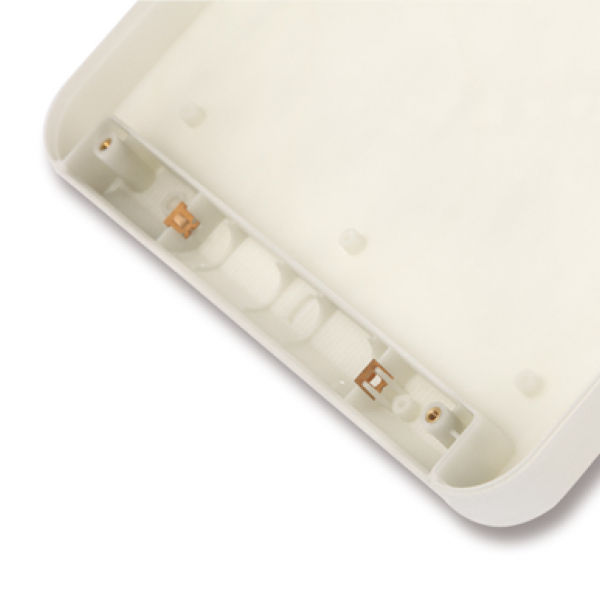

Multifunction flat enclosure, modern designed, ideal for desktop, hand-held and wall mounting applications. Wide recessed area on the top part suitable for touch-screen displays up to 10” (204,5x158,5mm). This model is equipped with IP65 sealing kits for screws and case. Internal battery compartments on both sides to accept 2+2 1,5V mignon cells (AA). Internal bosses on top and bottom for an easy fixing of the PCB. Closing by four M3 screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

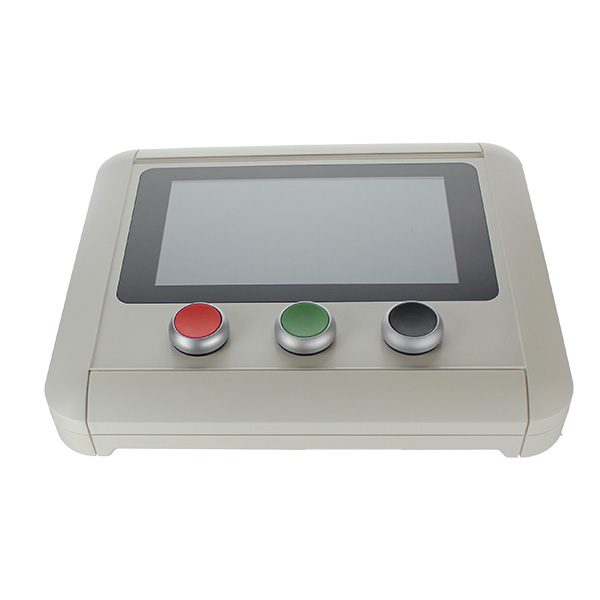

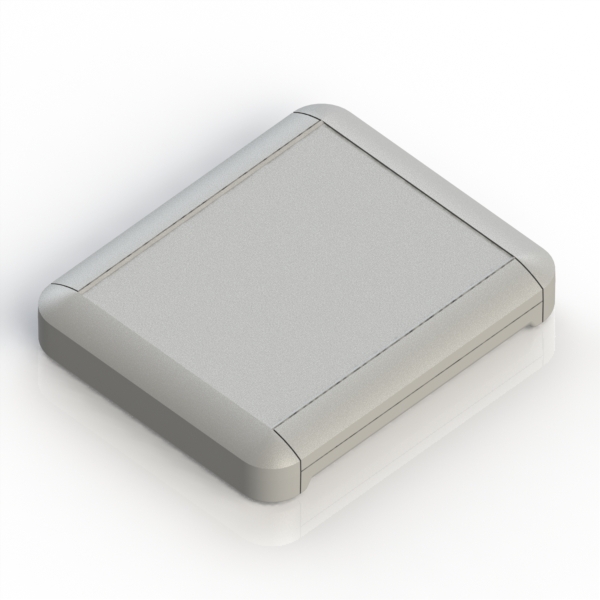

TW31.7
NEW
9,941 8,268 1,575 9002
L320 9,685 6,441 4 4 x AA PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 163,6
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG

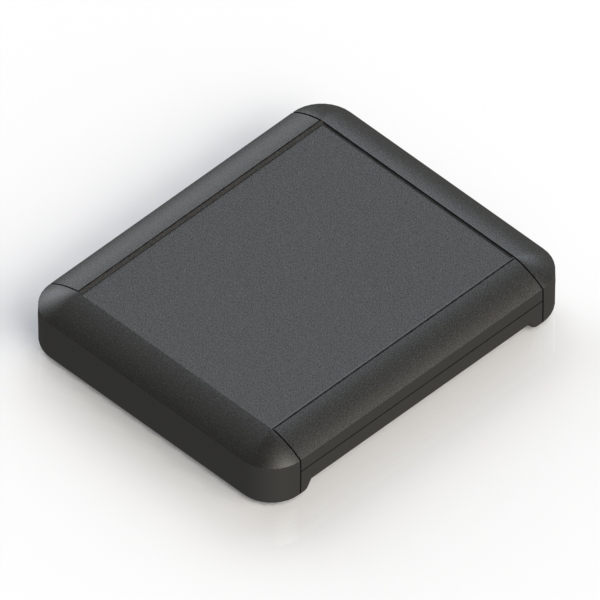

TW31.9
NEW
9,941 8,268 1,575 9004
P2H-AT 9,685 6,441 4 4 x AA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 163,6
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG

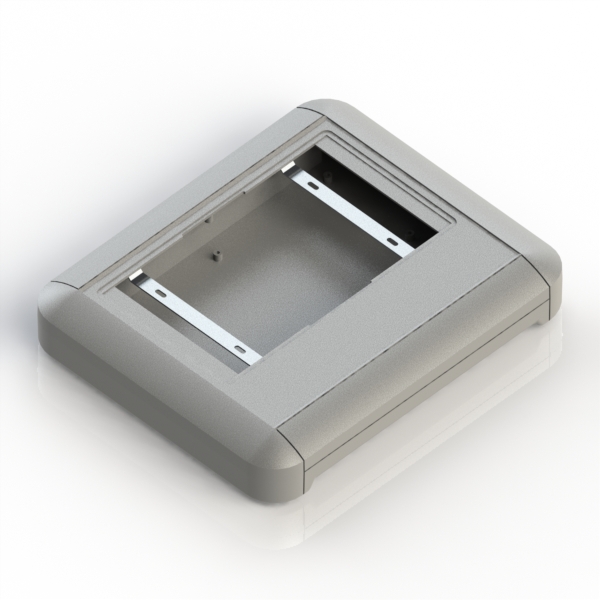

TW31_RPI.7
NEW
9,941 8,268 1,575 9002
L320 9,689 8,268 4 4xAA PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 163,6
  • Screws: 4
  • Battery: 4xAA
  • Accessories:
  • Drawings:  PDF  DWG

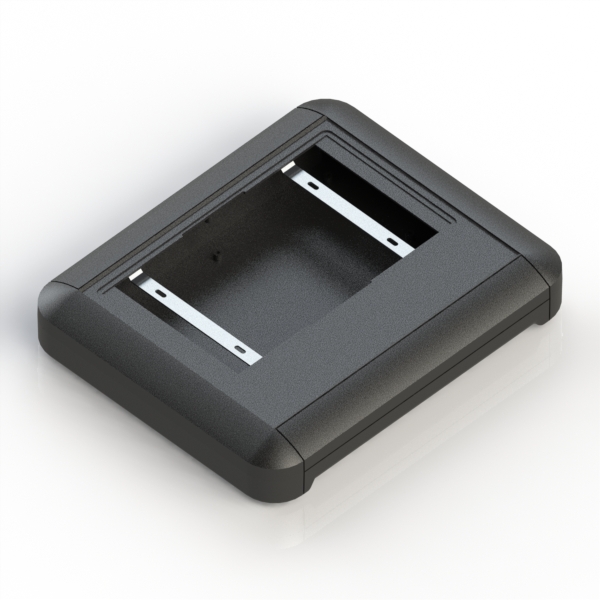

TW31_RPI.9
NEW
9,941 8,268 1,575 9004
P2H-AT 9,689 8,268 4 4xAA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 163,6
  • Screws: 4
  • Battery: 4xAA
  • Accessories:
  • Drawings:  PDF  DWG

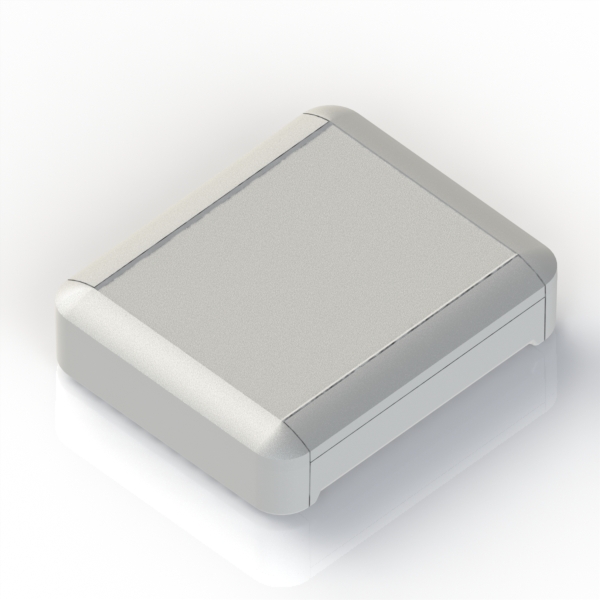

TW32.7
NEW
9,941 8,268 2,362 9002
L320 9,68 6,44 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 163,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

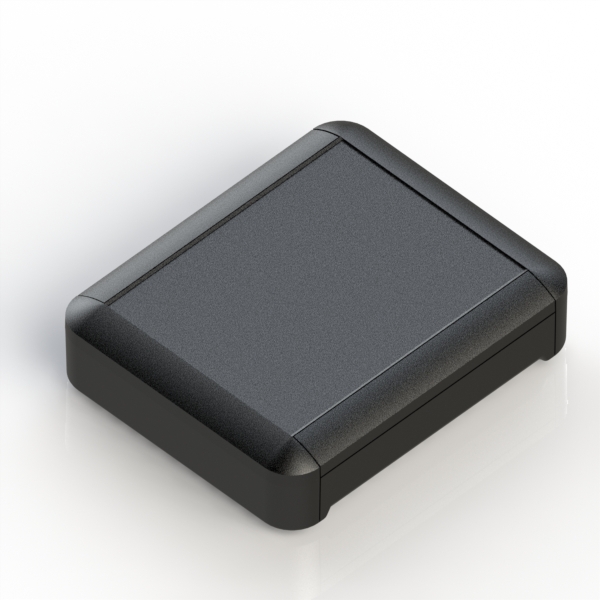

TW32.9
NEW
9,941 8,268 2,362 9004
P2H-AT 9,68 6,44 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 163,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
