Description

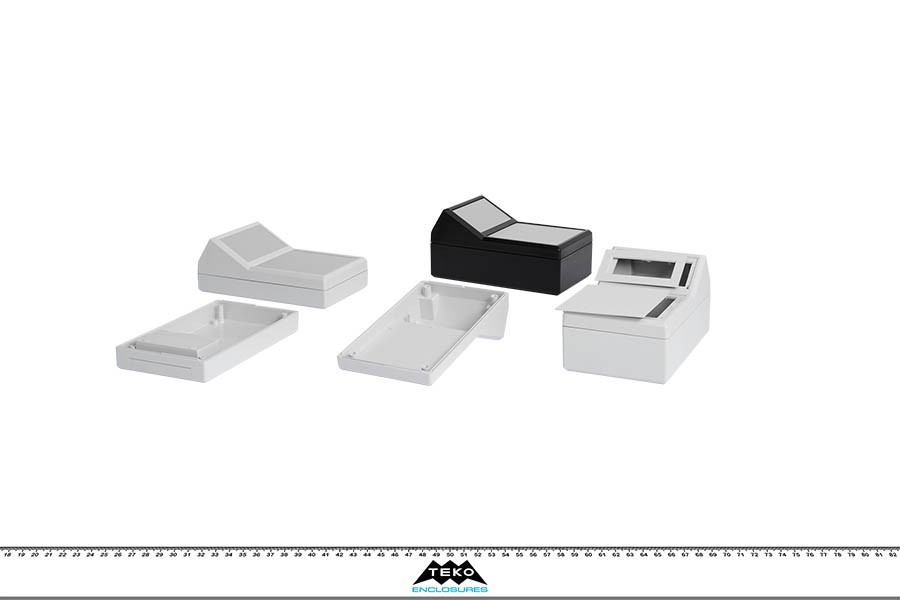

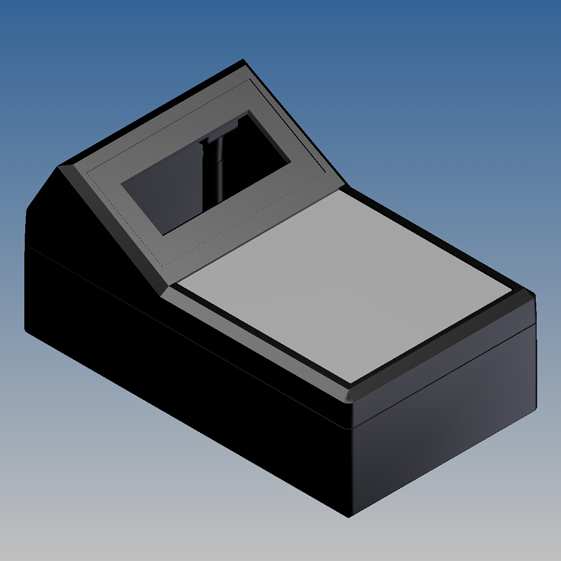

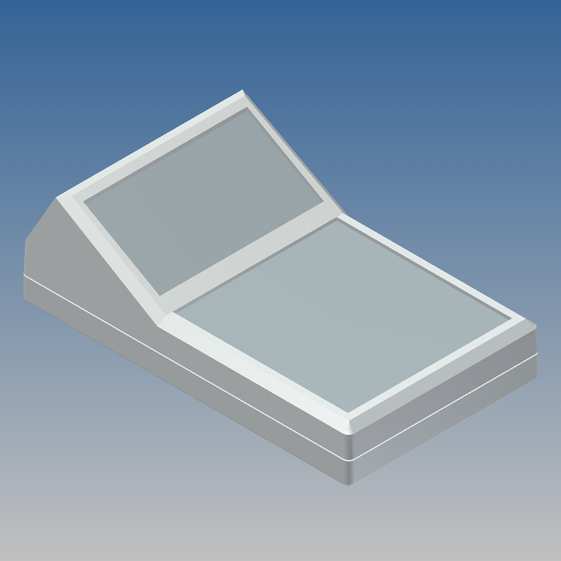

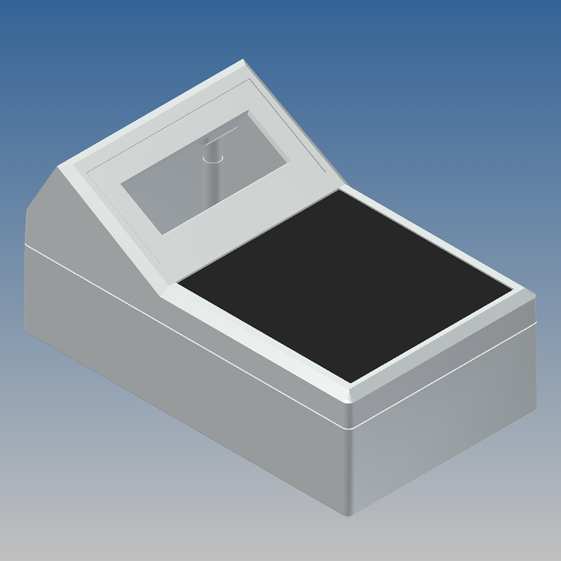

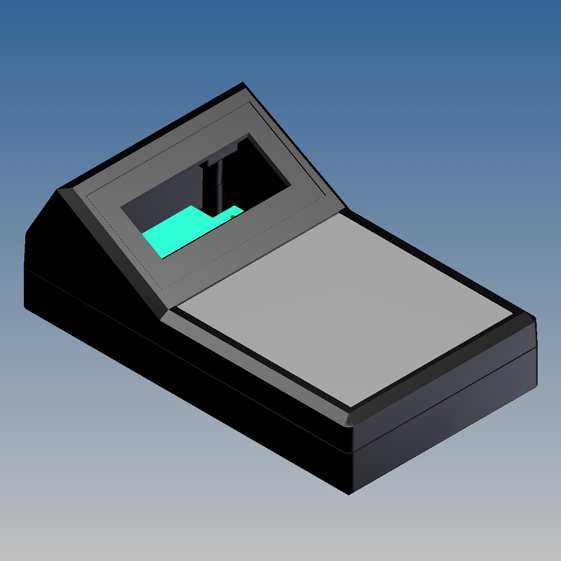

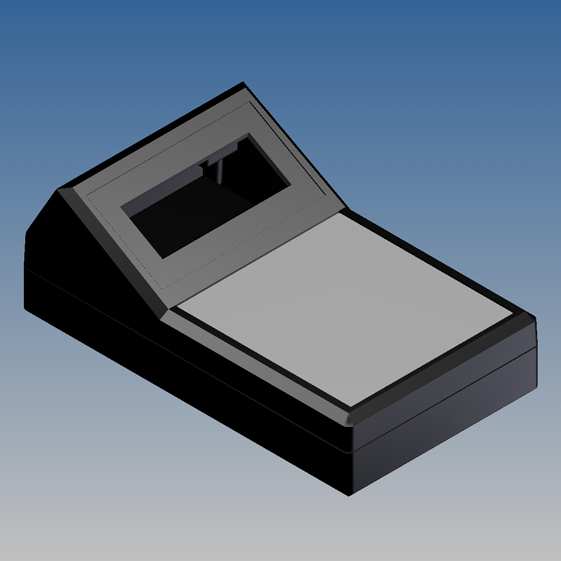

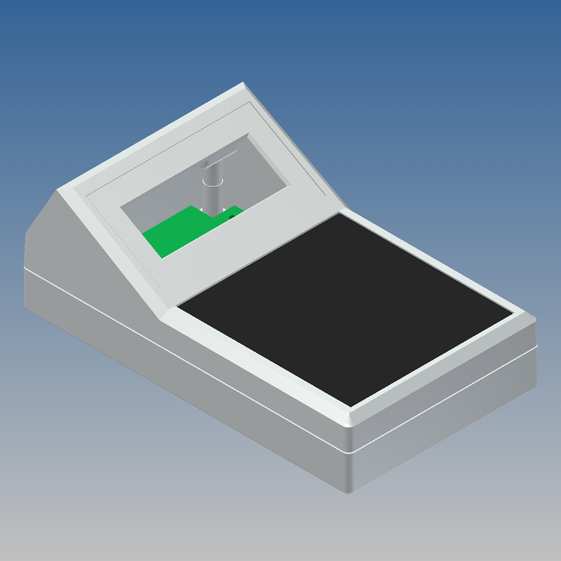

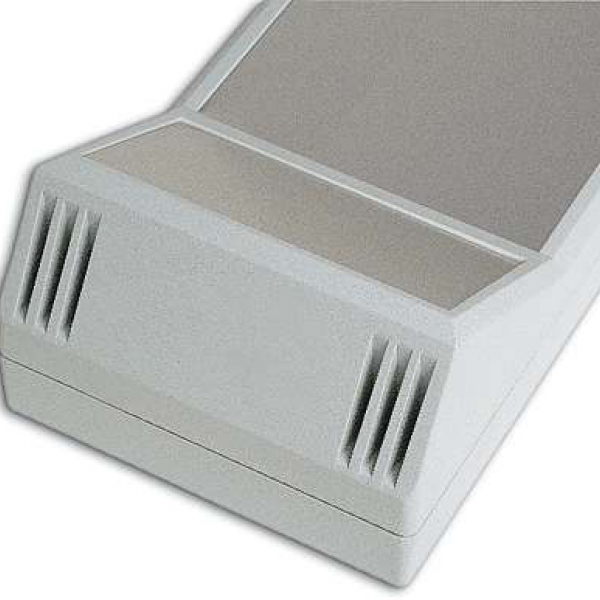

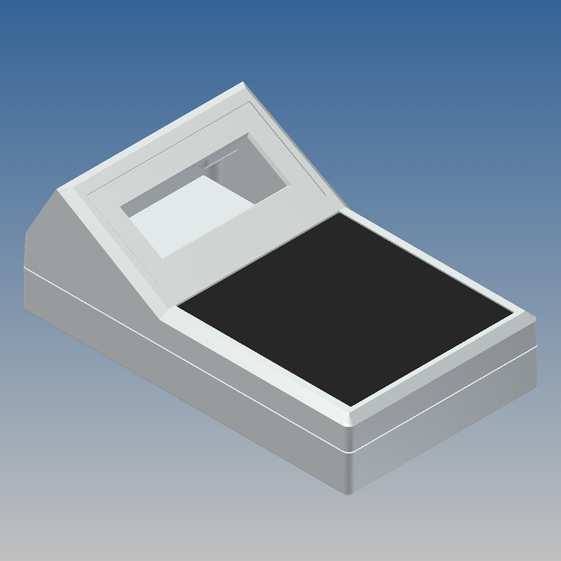

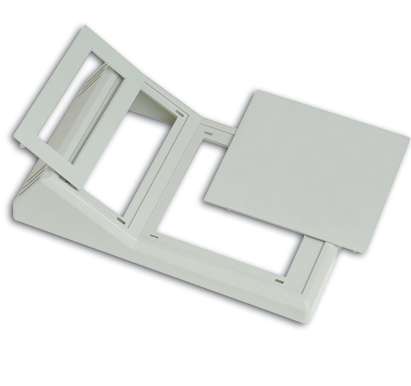

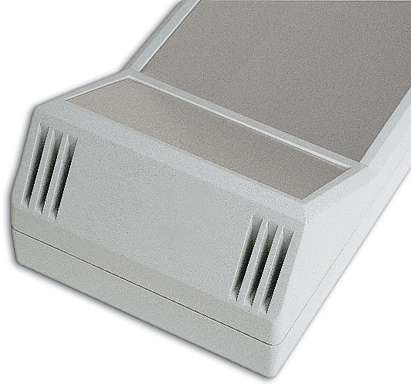

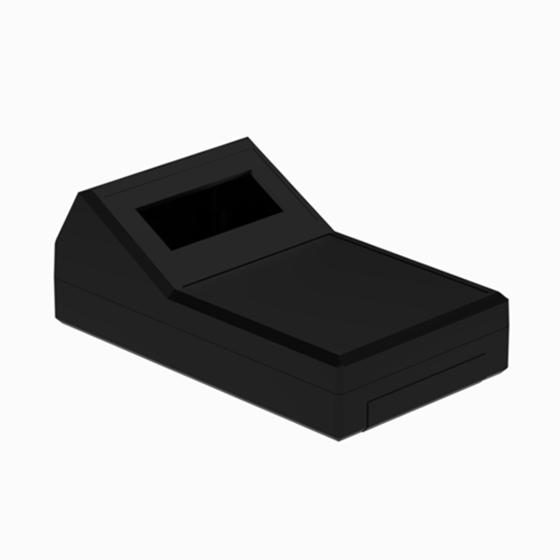

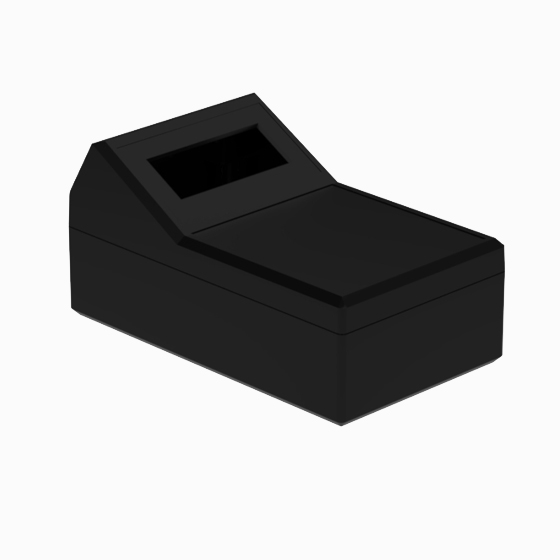

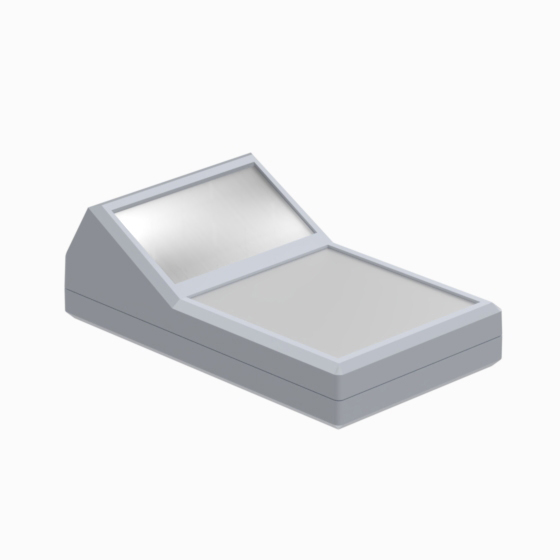

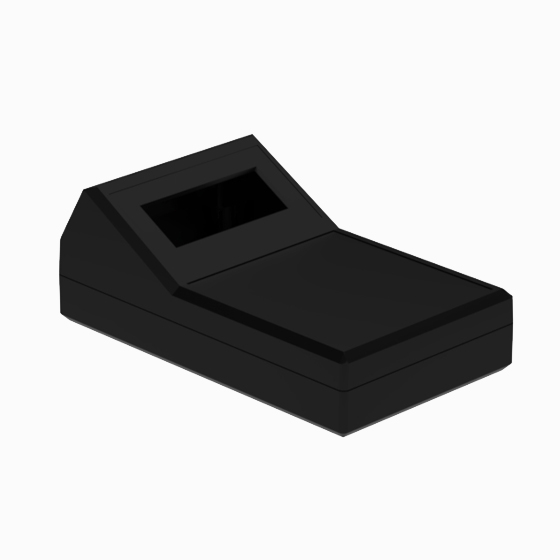

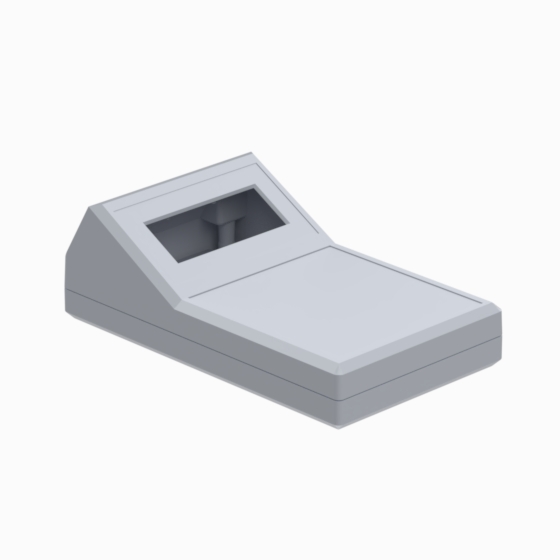

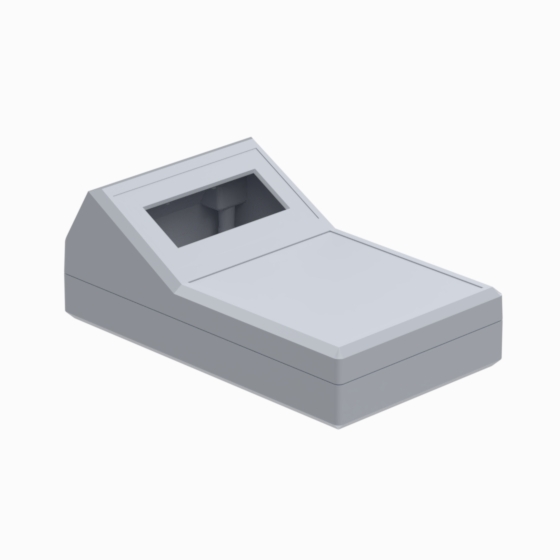

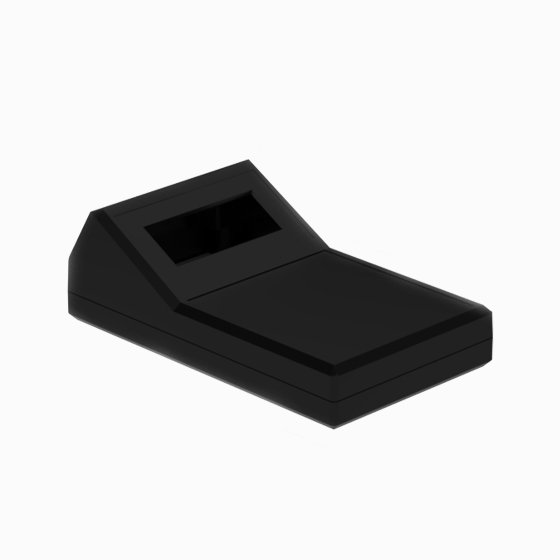

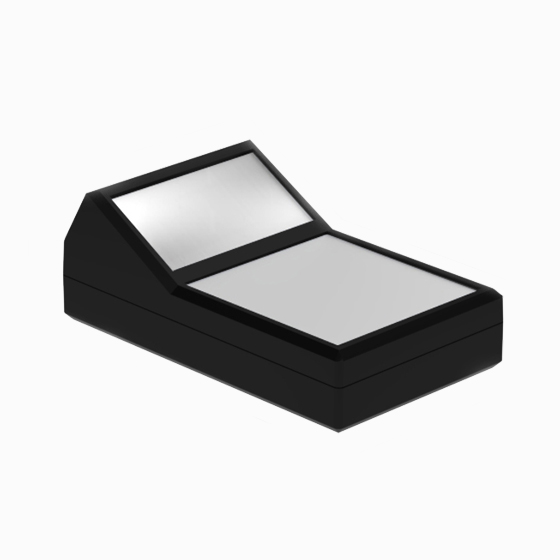

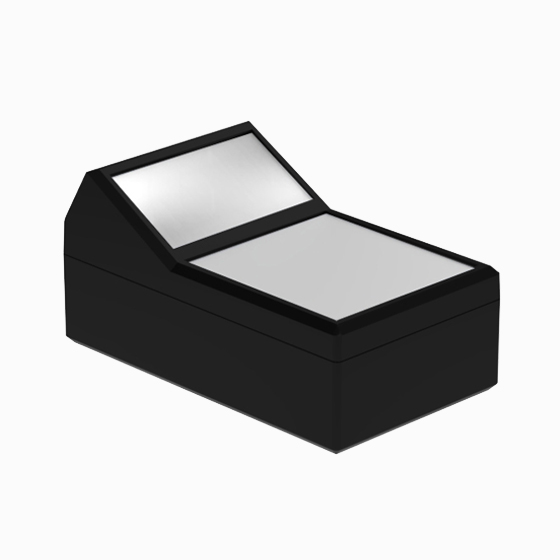

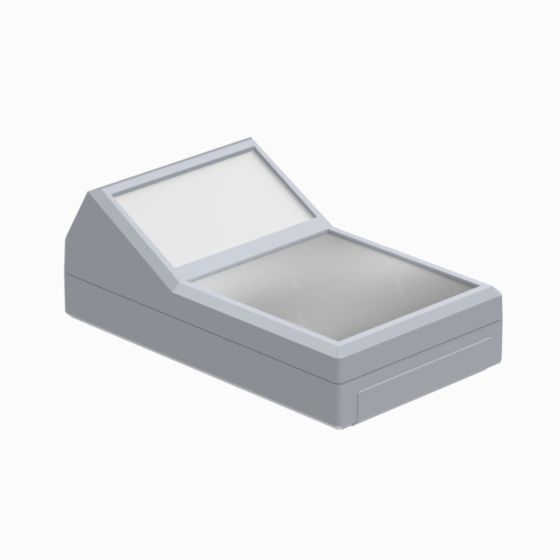

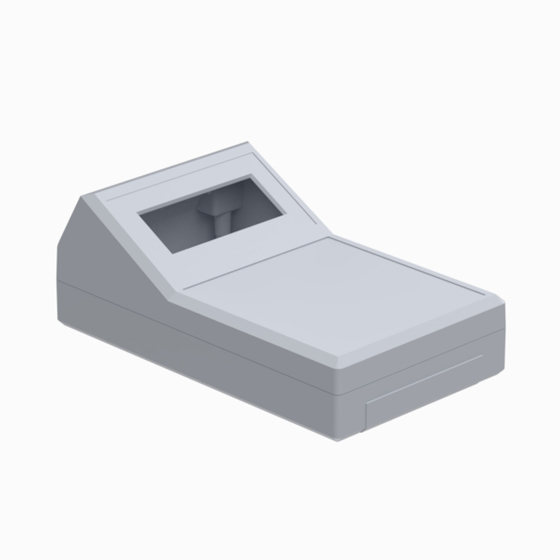

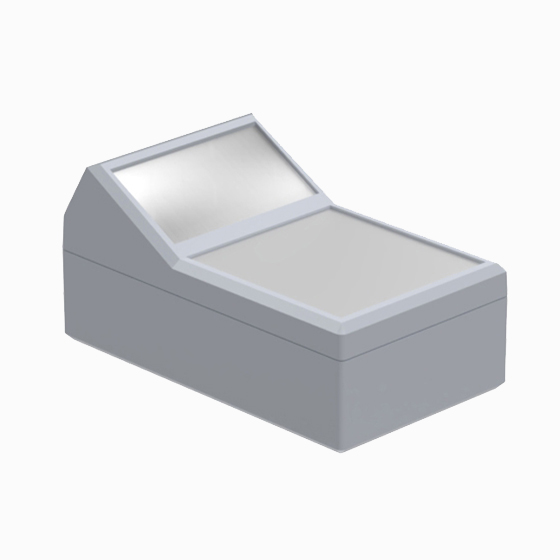

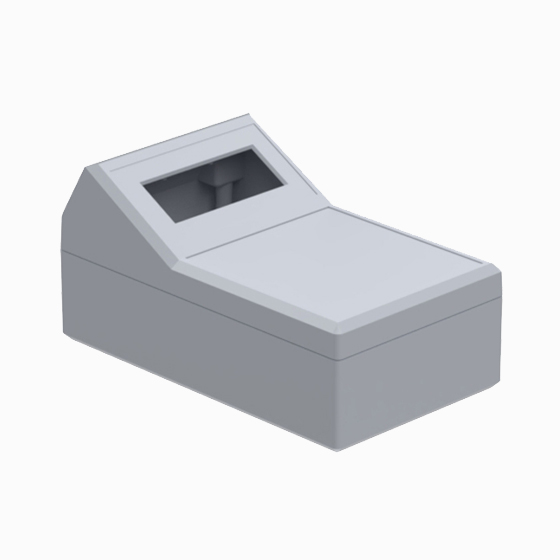

ABS enclosures with inclined cover. Matt surfaces finish. The base has integral PCB mounting studs. The models with “-B” have a 9V battery compartment with snap-on cover. The models with “D” have plastic punch-out lids for display (55 x 20 mm). Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
590.5 | 5,709 | 3,346 | 1,929 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|

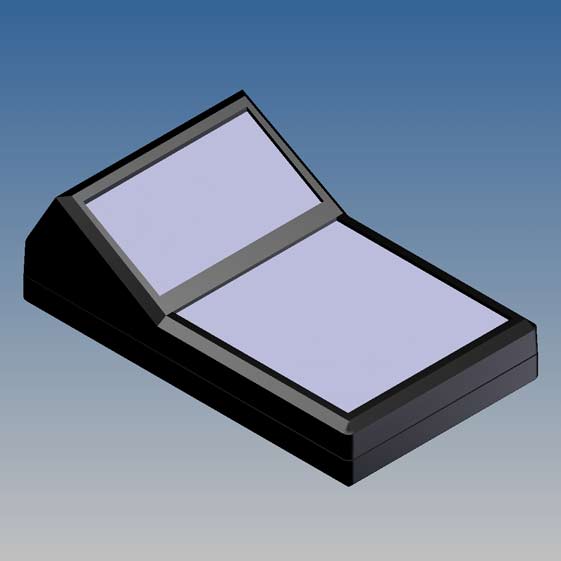

590.9 | 5,709 | 3,346 | 1,929 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|

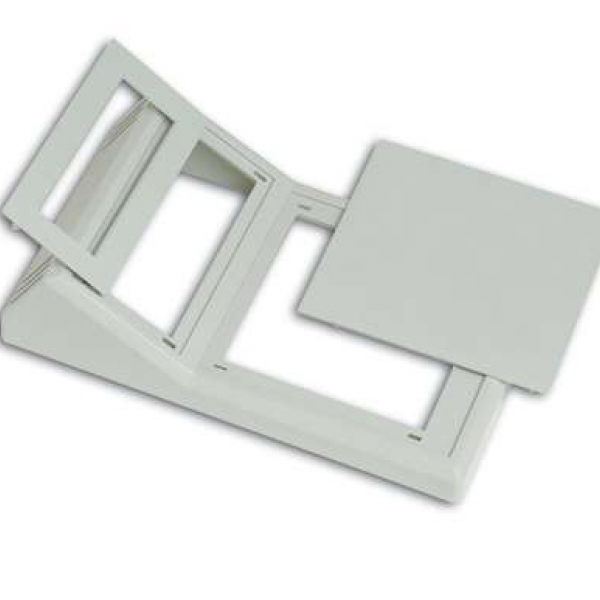

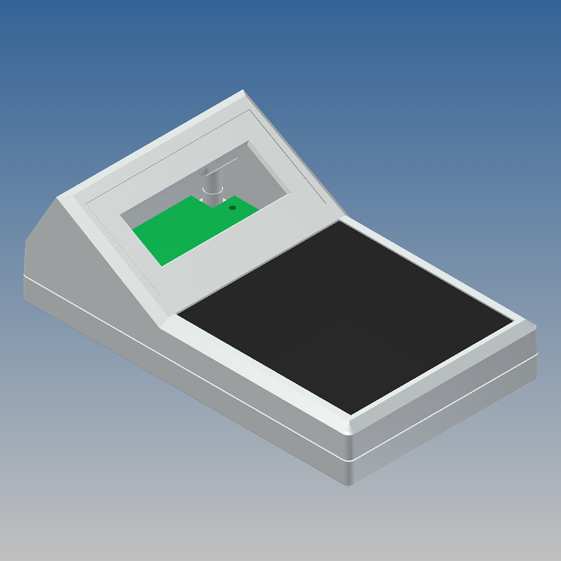

590/D.5 | 5,709 | 3,346 | 1,929 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|
590/D.9 | 5,709 | 3,346 | 1,929 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|

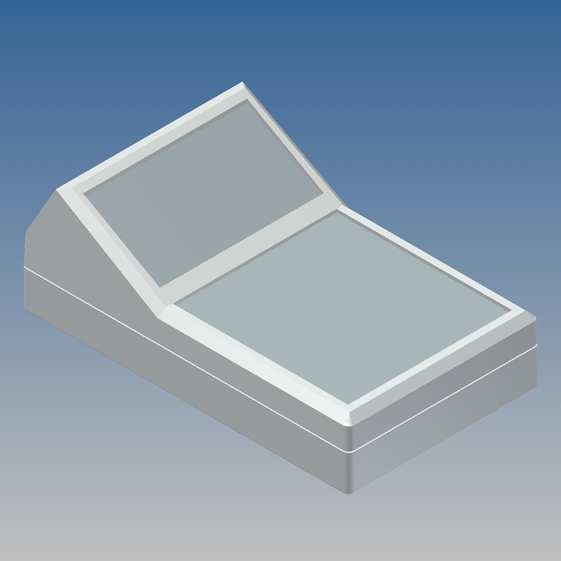

680-B.5 | 5,709 | 3,346 | 2,165 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | 1 x 9V |
AB9 |
PDF DWG |
|
|

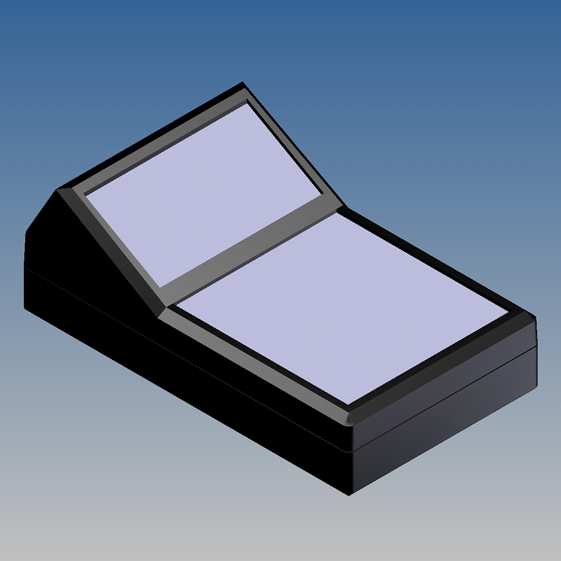

680-B.9 | 5,709 | 3,346 | 2,165 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | 1 x 9V |
AB9 |
PDF DWG |
|
|
680D-B.5 | 5,709 | 3,346 | 2,165 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | 1 x 9V |
AB9 |
PDF DWG |
|
|
680D-B.9 | 5,709 | 3,346 | 2,165 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | 1 x 9V |
AB9 |
PDF DWG |
|
|
690.5 | 5,709 | 3,346 | 2,165 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|
690.9 | 5,709 | 3,346 | 2,165 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|
690/D.5 | 5,709 | 3,346 | 2,165 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|
690/D.9 | 5,709 | 3,346 | 2,165 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|

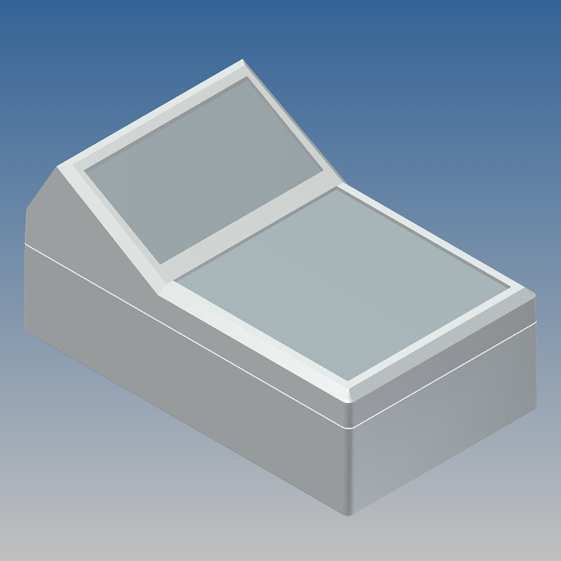

790.5 | 5,709 | 3,346 | 2,874 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|

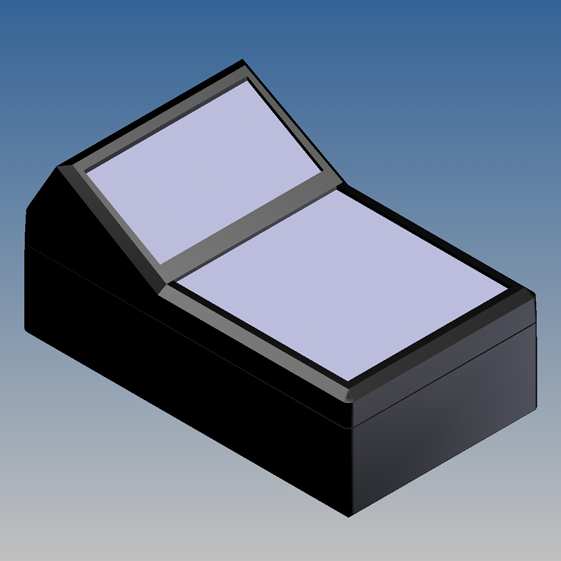

790.9 | 5,709 | 3,346 | 2,874 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|
790/D.5 | 5,709 | 3,346 | 2,874 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
|
|
790/D.9 | 5,709 | 3,346 | 2,874 |
9004 |
P2H-AT | 3,843 | 2,961 | 4 | - |
MT1 |
PDF DWG |
