Description

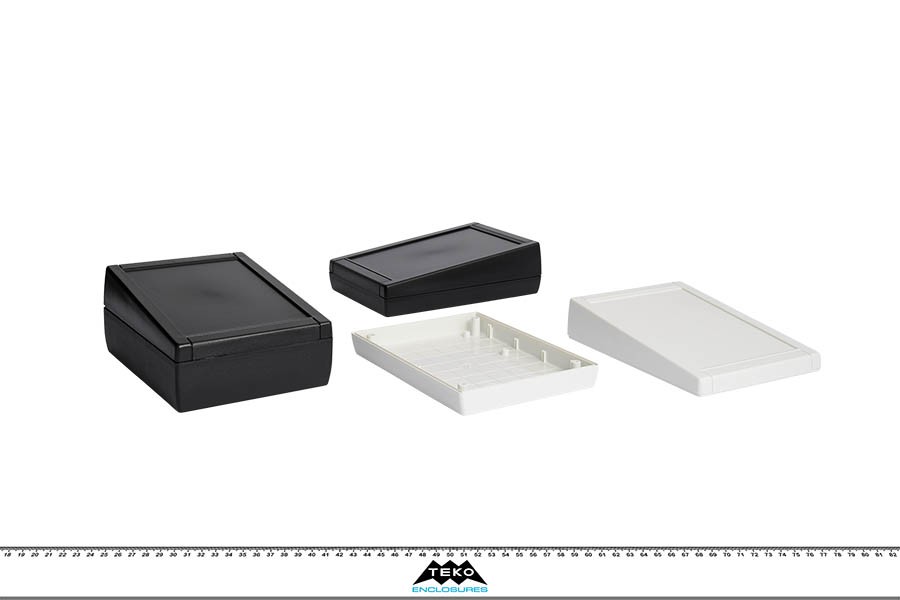

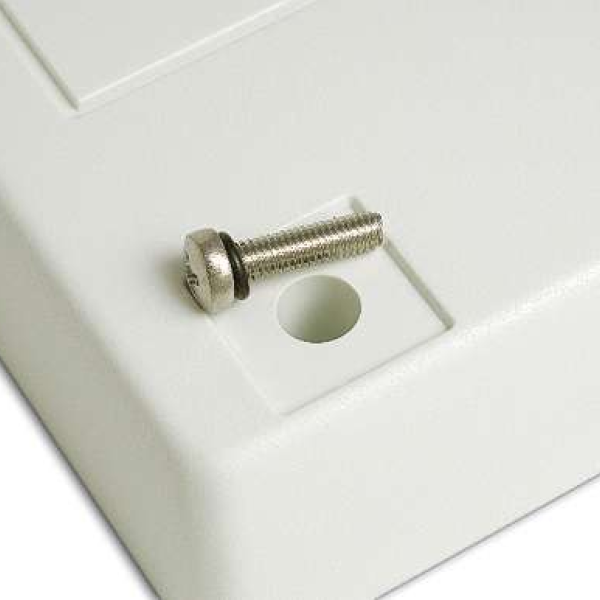

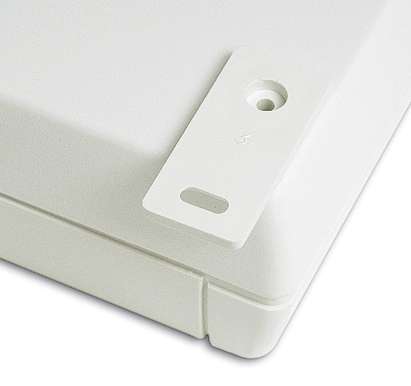

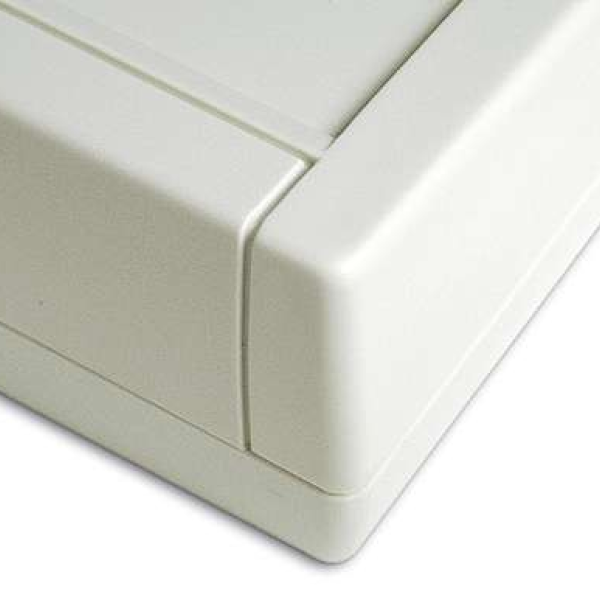

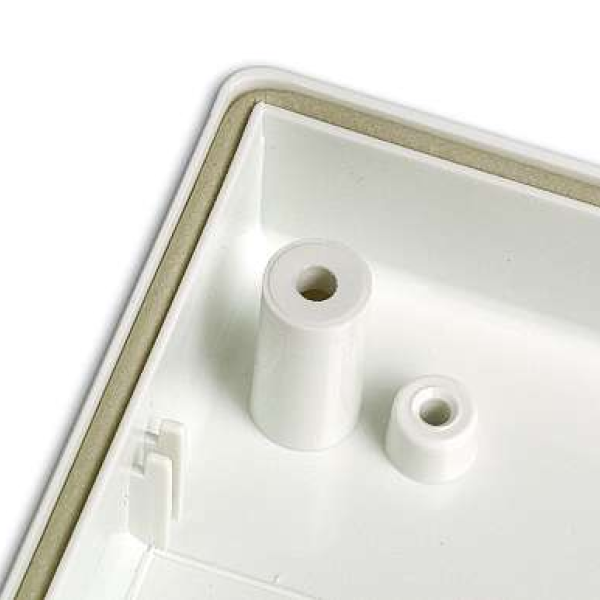

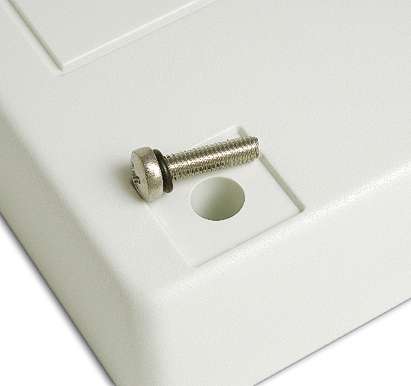

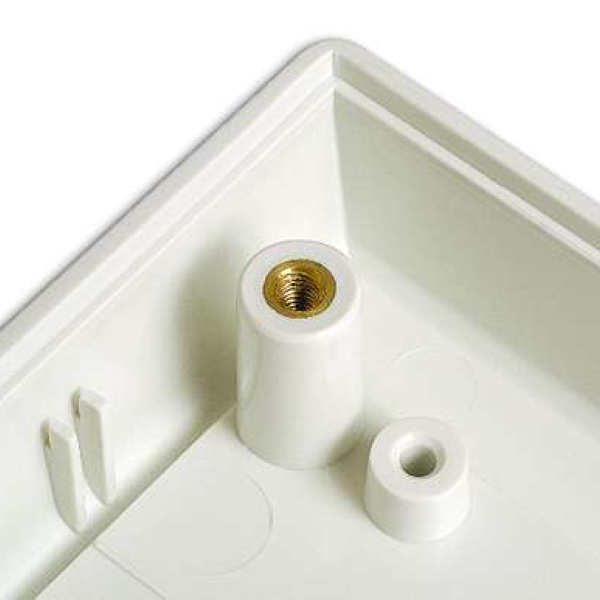

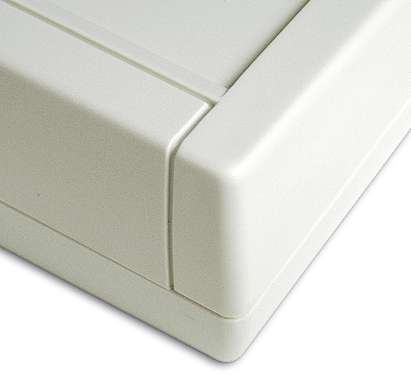

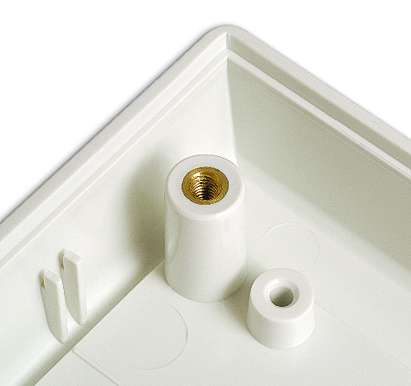

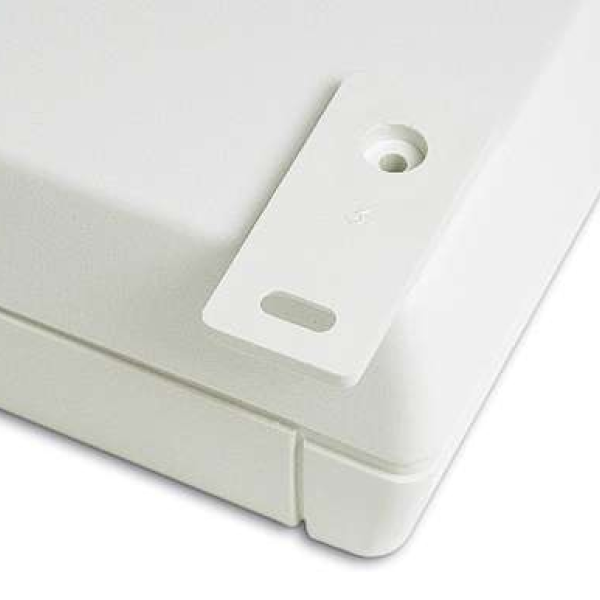

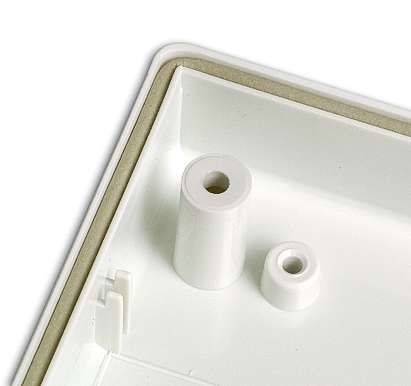

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

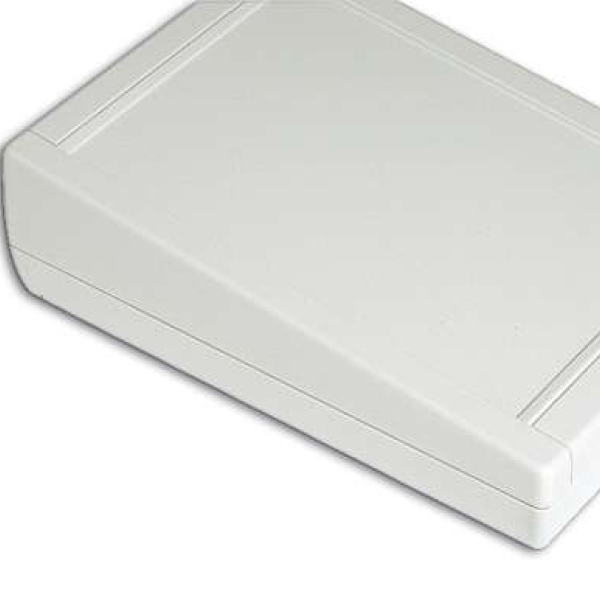

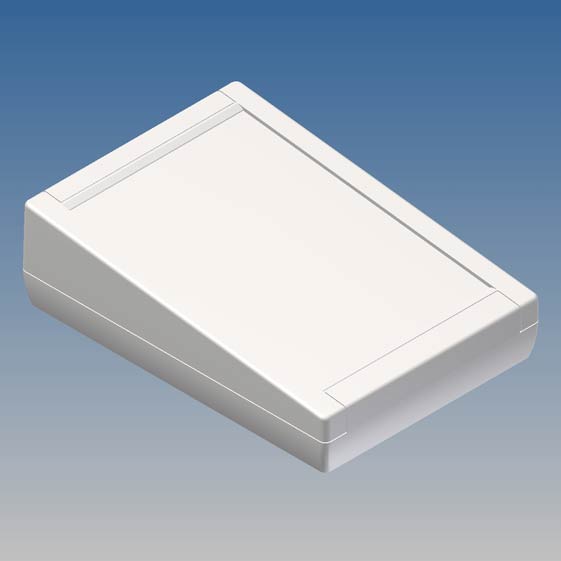

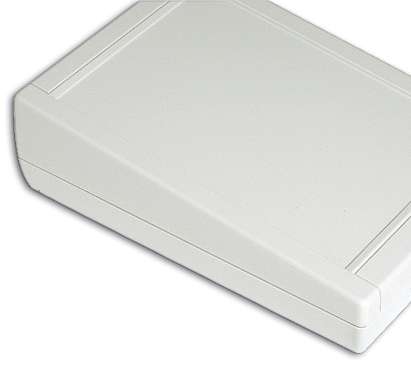

TK11S.7 | 7,421 | 5,256 | 2,224 |
9002 |
FORMACROM 9249FC | 6,929 | 4,685 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

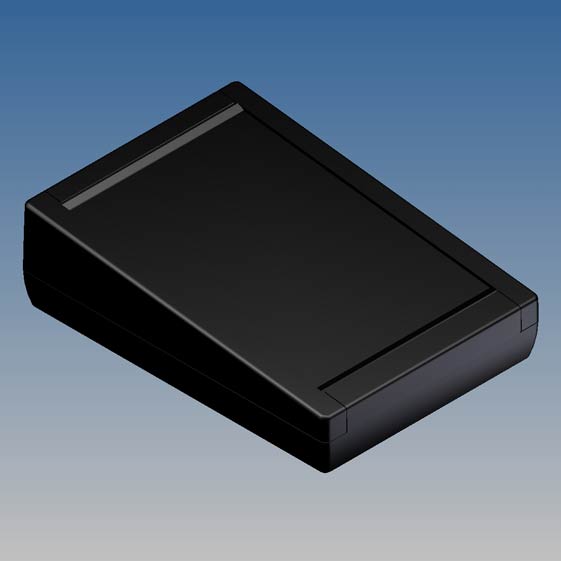

TK11S.9 | 7,421 | 5,256 | 2,224 |
9004 |
TERLURAN GP-35 | 6,929 | 4,685 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

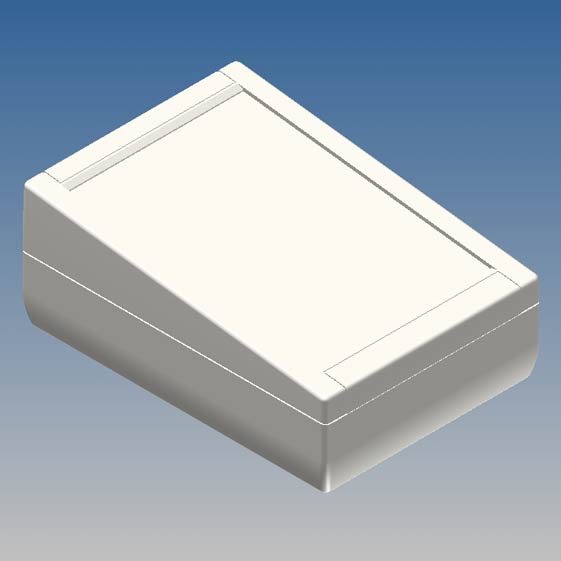

TK33S.7 | 7,421 | 5,256 | 2,984 |
9002 |
FORMACROM 9249FC | 6,929 | 4,685 | 4 | - |
MT2 |
PDF DWG |
View
|
|

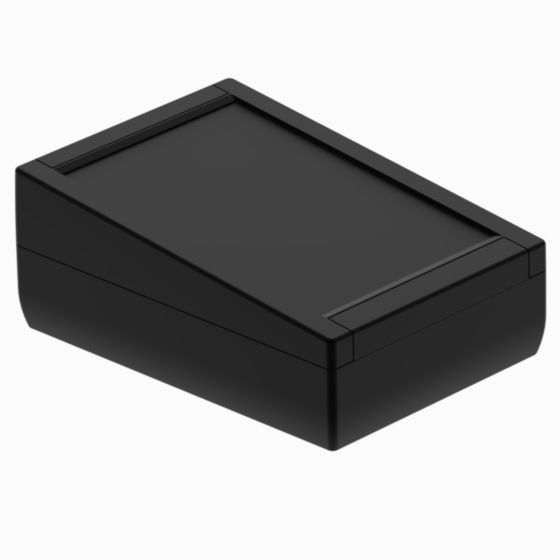

TK33S.9 | 7,421 | 5,256 | 2,984 |
9004 |
TERLURAN GP-35 | 6,929 | 4,685 | 4 | - |
MT2 |
PDF DWG |
View
|
|

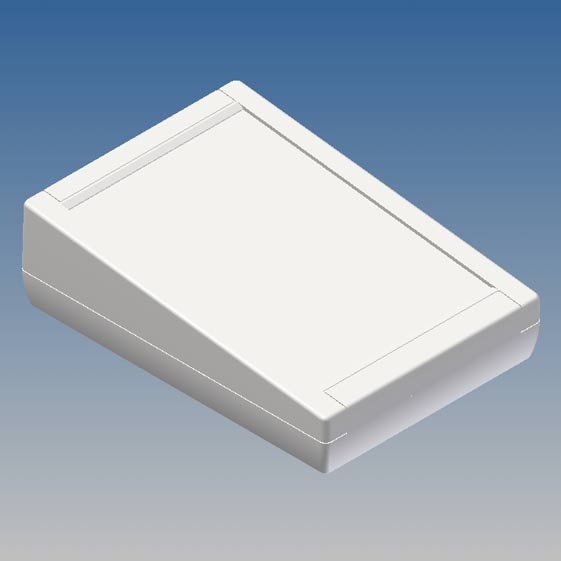

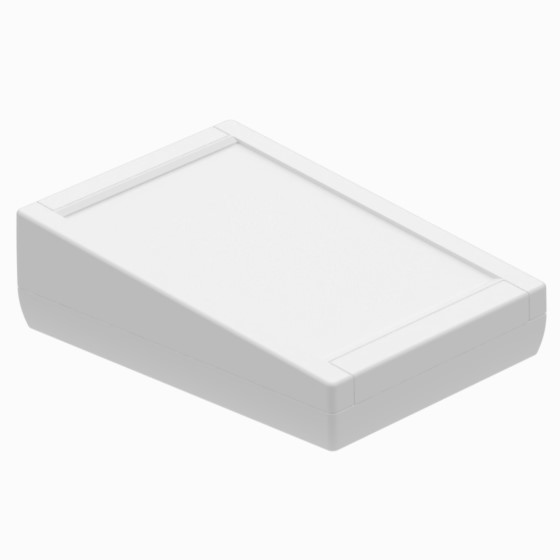

TKK11S.7 | 7,421 | 5,256 | 2,224 |
9002 |
FORMACROM 9249FC | 6,929 | 4,685 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

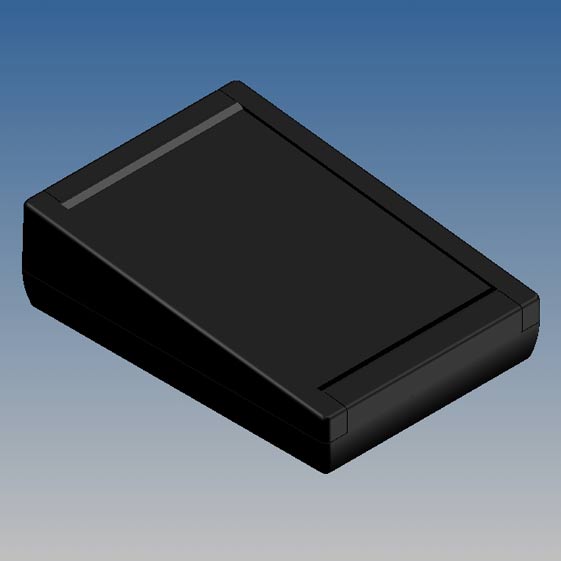

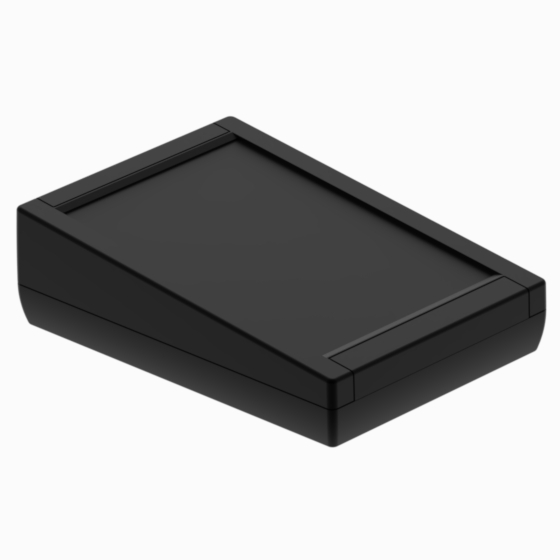

TKK11S.9 | 7,421 | 5,256 | 2,224 |
9004 |
TERLURAN GP-35 | 6,929 | 4,685 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

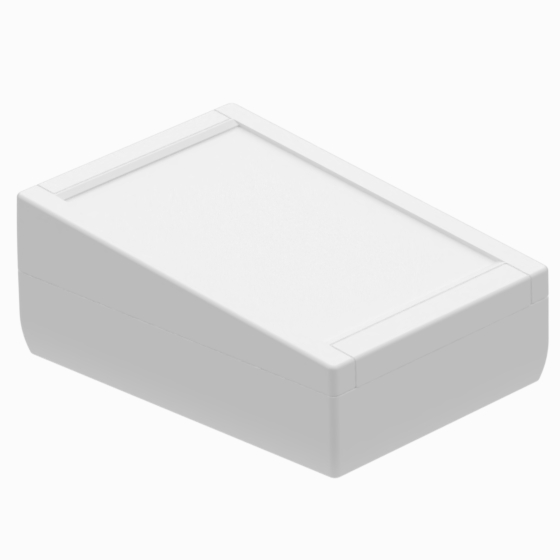

TKK33S.7 | 7,421 | 5,256 | 2,984 |
9002 |
FORMACROM 9249FC | 6,929 | 4,685 | 4 | - |
MT2 |
PDF DWG |
View
|
|

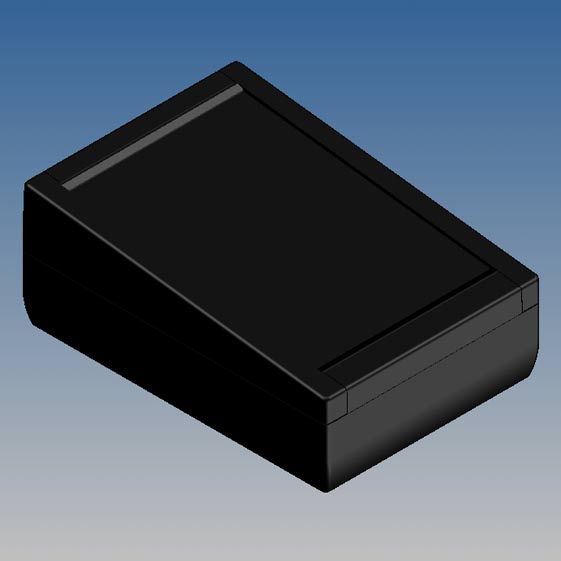

TKK33S.9 | 7,421 | 5,256 | 2,984 |
9004 |
TERLURAN GP-35 | 6,929 | 4,685 | 4 | - |
MT2 |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
