Description

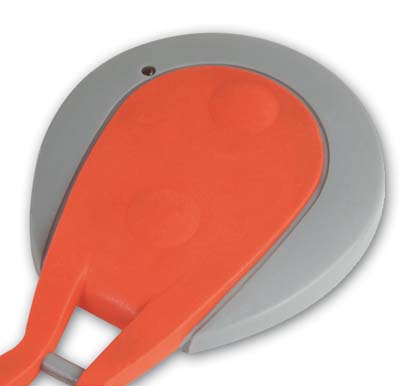

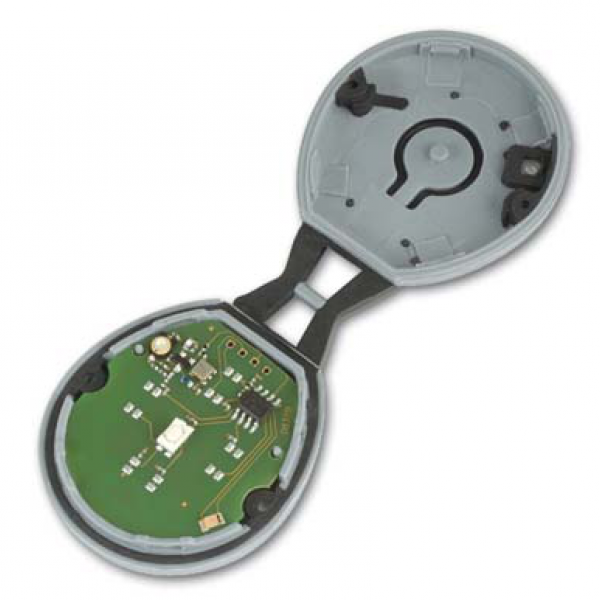

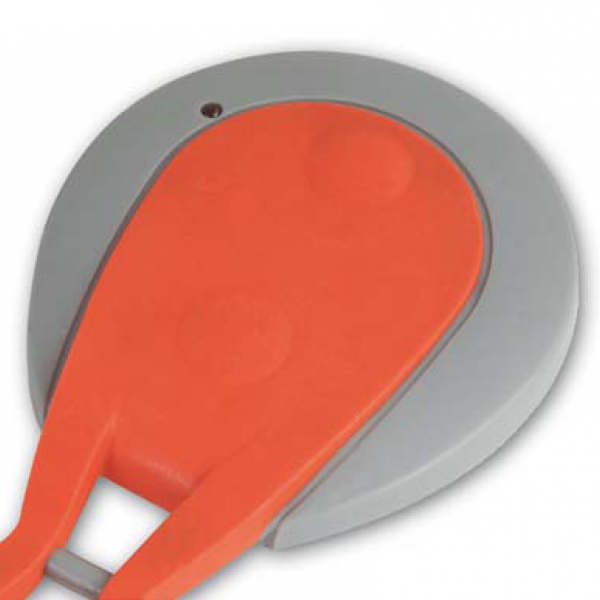

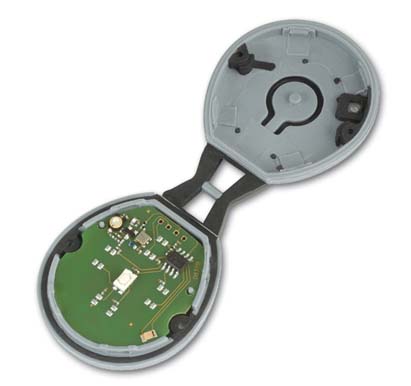

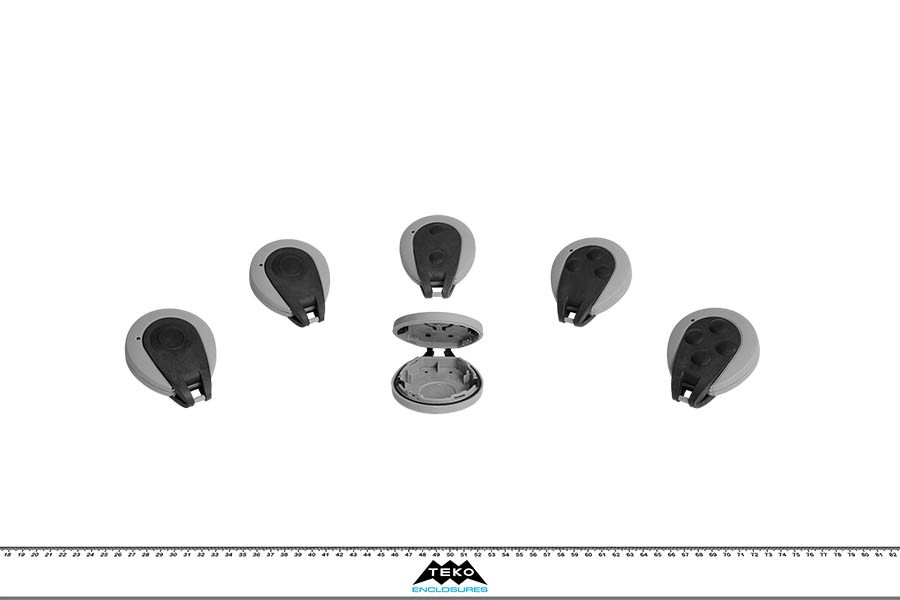

Small enclosure with ergonomic design, moulded in two materials, using multi-shot injection.Four models available, from one to four push buttons figuration. Protection class up to IP 65. Base with integral PCB mounting studs. Closing by two screws. Two-colours combination: Grey RAL 7046/ Black RAL 9004 . Applications: transmitters, personal security, home automation.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

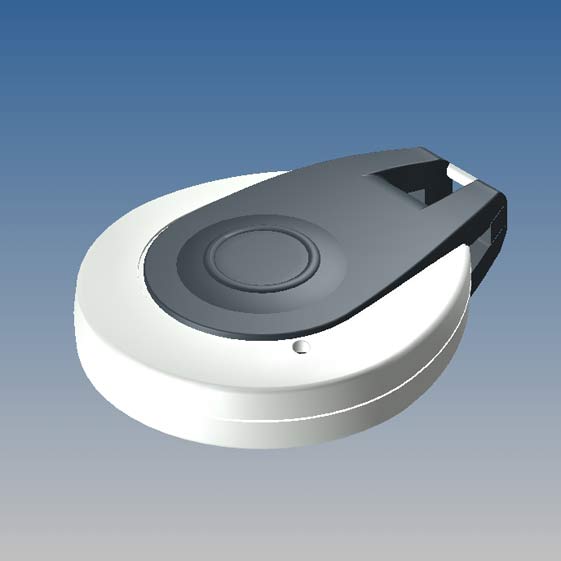

OV-IP/1.36 | 2,236 | 1,732 | 0,571 |
7046 9004 |
6512_ENC1 - TC4PAN | 1,496 | 1,417 | 2 | CR2032 |
AB2032 |
PDF DWG |
|
|
OV-IP/2.36 | 2,236 | 1,732 | 0,571 |
7046 9004 |
6512_ENC1 - TC4PAN | 1,496 | 1,417 | 2 | CR2032 |
AB2032 |
PDF DWG |
|
|

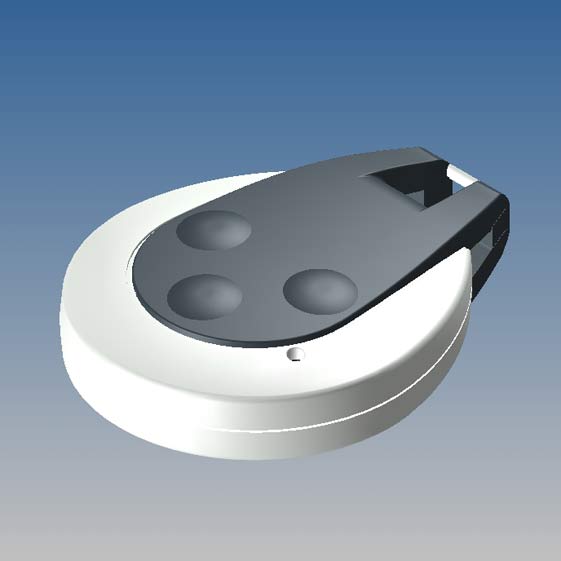

OV-IP/3.36 | 2,236 | 1,732 | 0,571 |
7046 9004 |
6512_ENC1 - TC4PAN | 1,496 | 1,417 | 2 | CR2032 |
AB2032 |
PDF DWG |
|
|

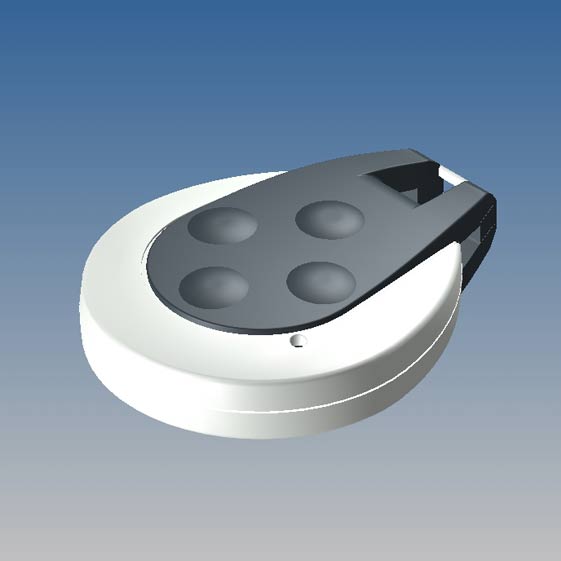

OV-IP/4.36 | 2,236 | 1,732 | 0,571 |
7046 9004 |
6512_ENC1 - TC4PAN | 1,496 | 1,417 | 2 | CR2032 |
AB2032 |
PDF DWG |
