Description

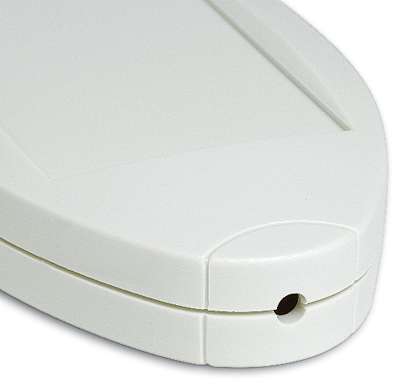

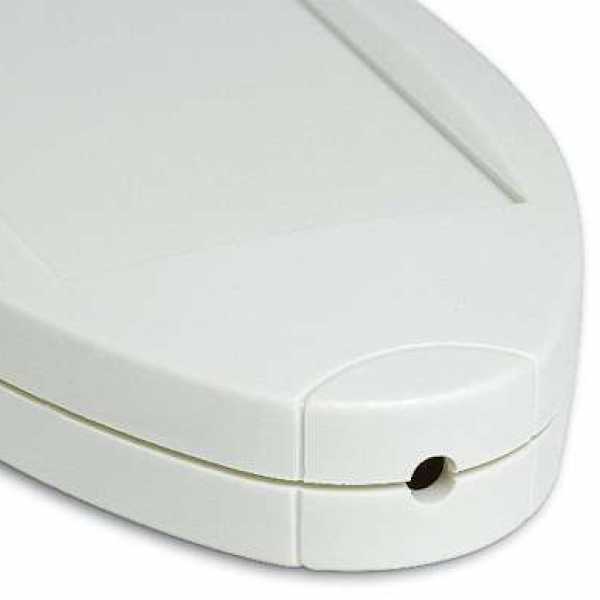

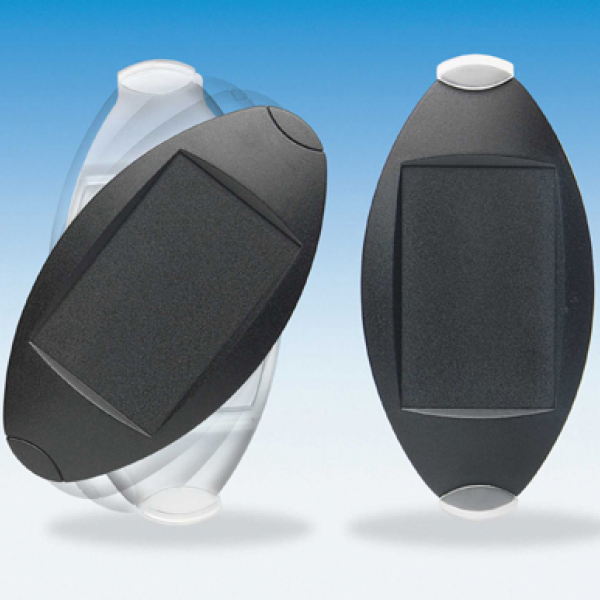

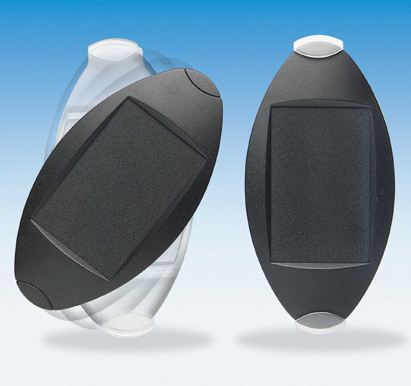

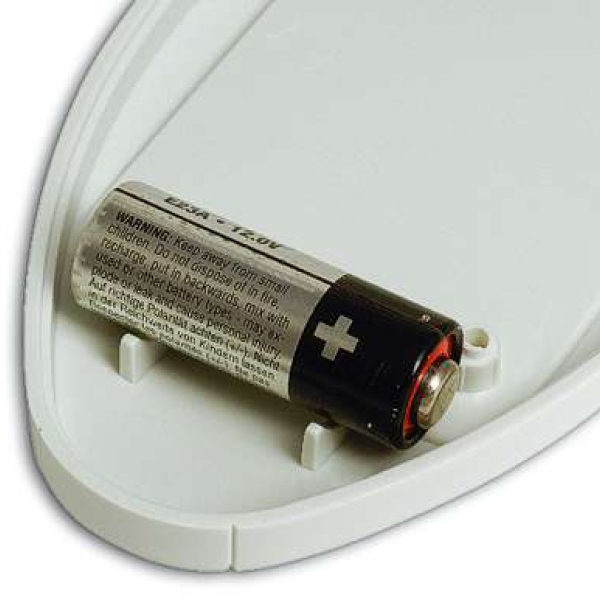

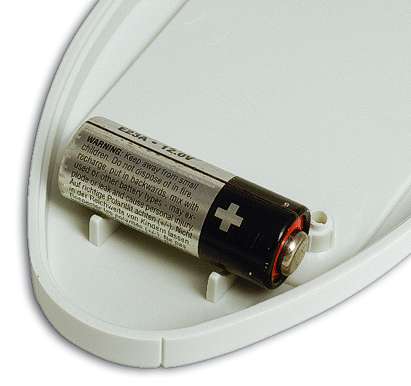

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Space for a 12V battery or small 3V round cells. The model “OVO-2IR” has a front opening for a LED. Closing by two screws.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

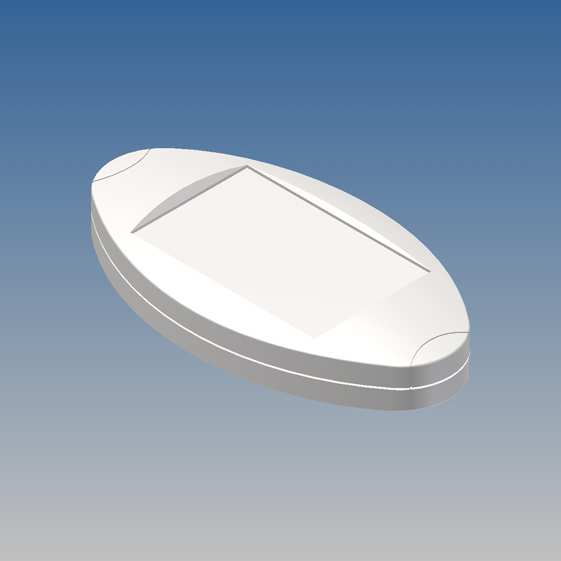

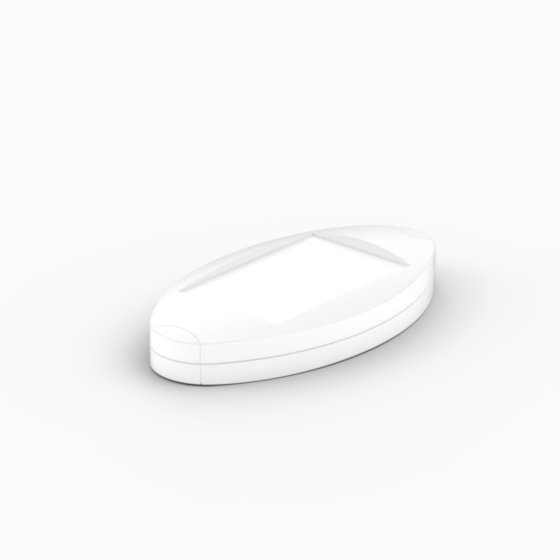

OVO-2.7 | 3,76 | 2,008 | 0,681 |
9002 |
L320 | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
|
|

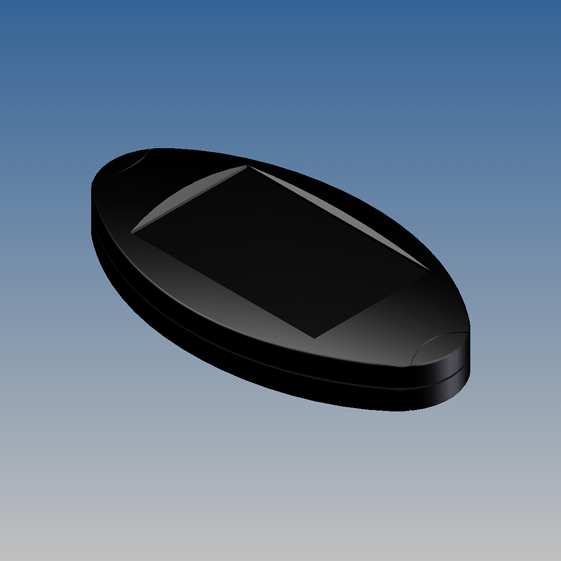

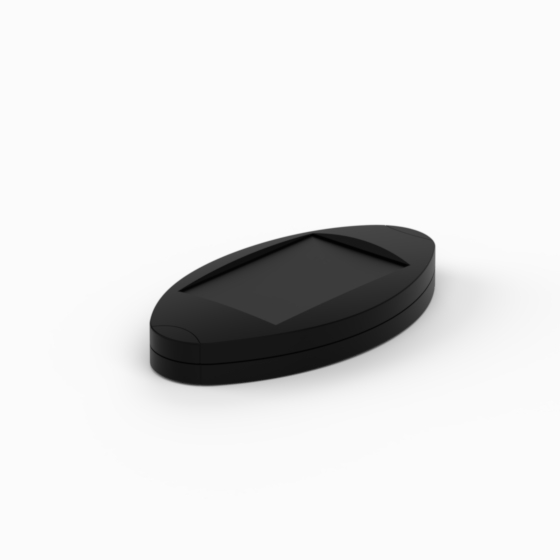

OVO-2.9 | 3,76 | 2,008 | 0,681 |
9004 |
P2H-AT | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
|
|

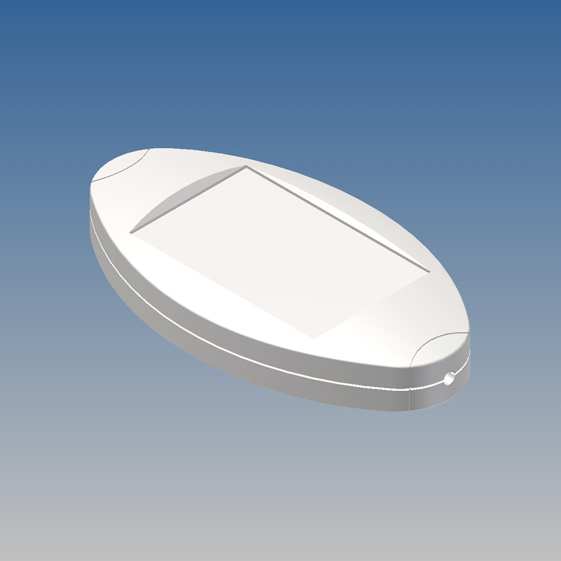

OVO-2IR.7 | 3,76 | 2,008 | 0,681 |
9002 |
L320 | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
|
|

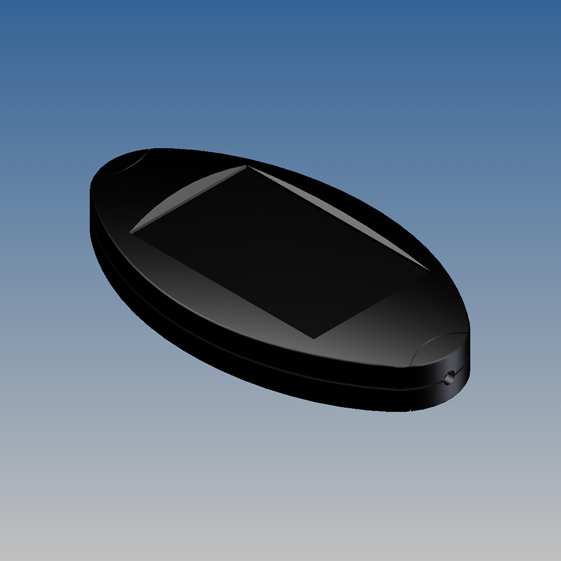

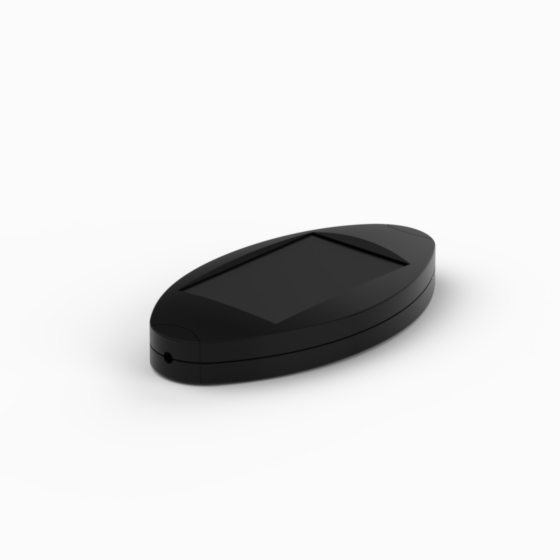

OVO-2IR.9 | 3,76 | 2,008 | 0,681 |
9004 |
P2H-AT | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
