Description

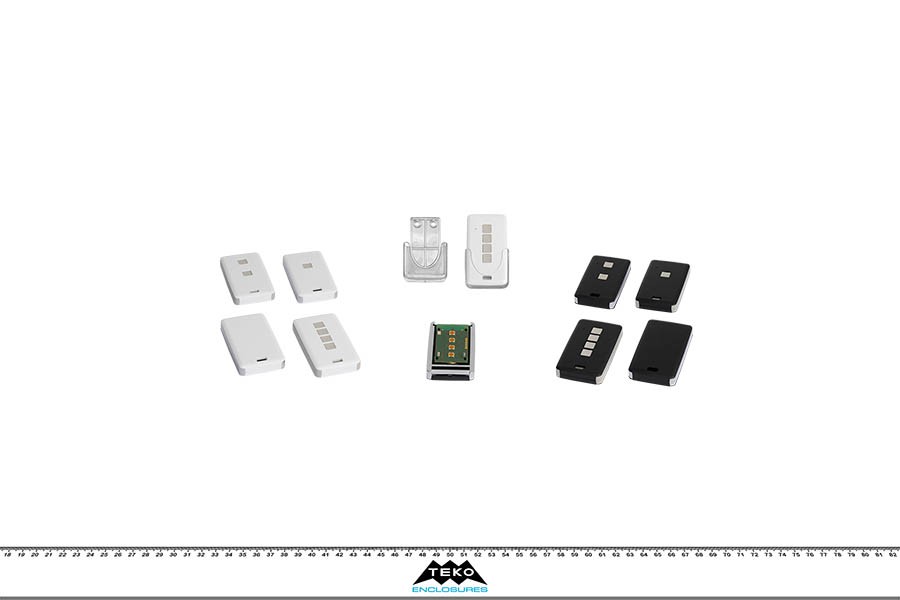

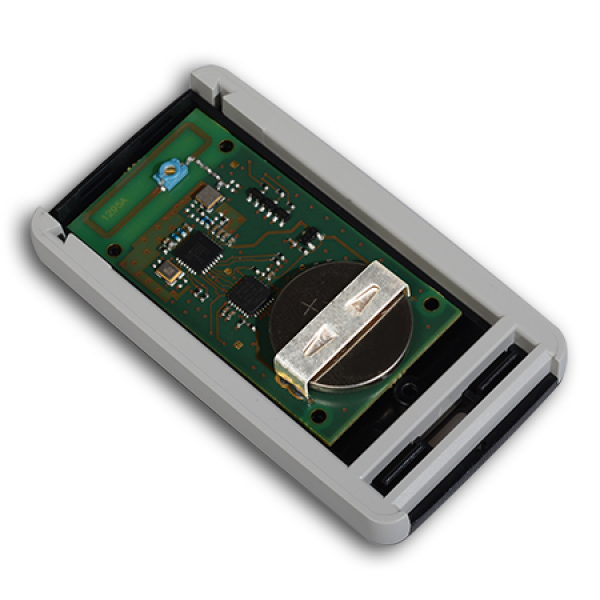

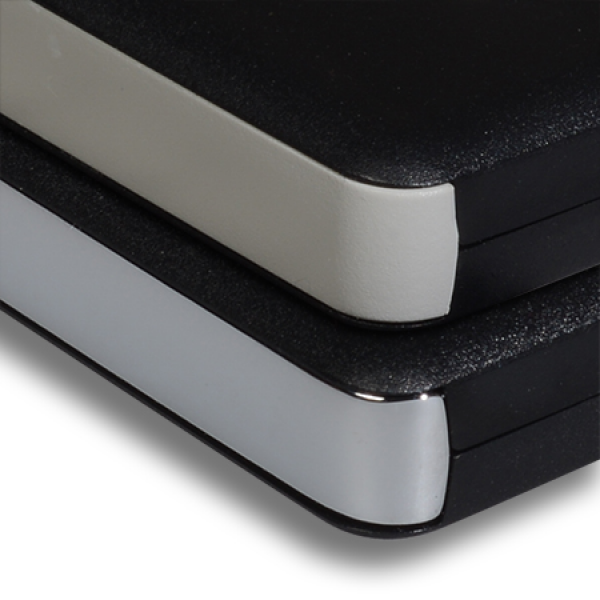

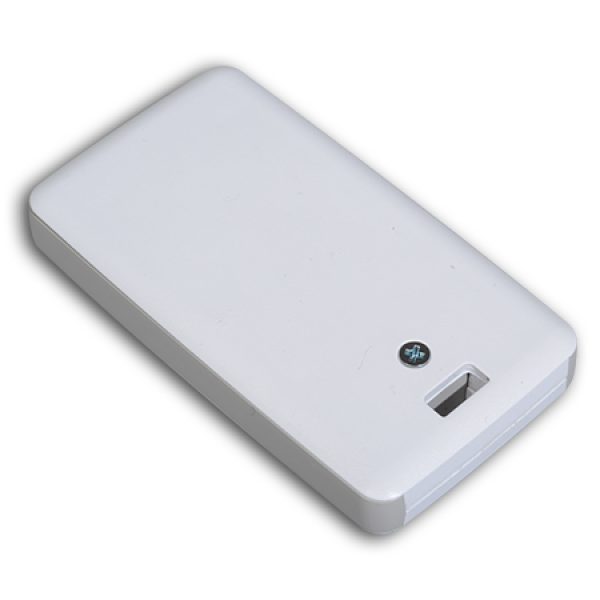

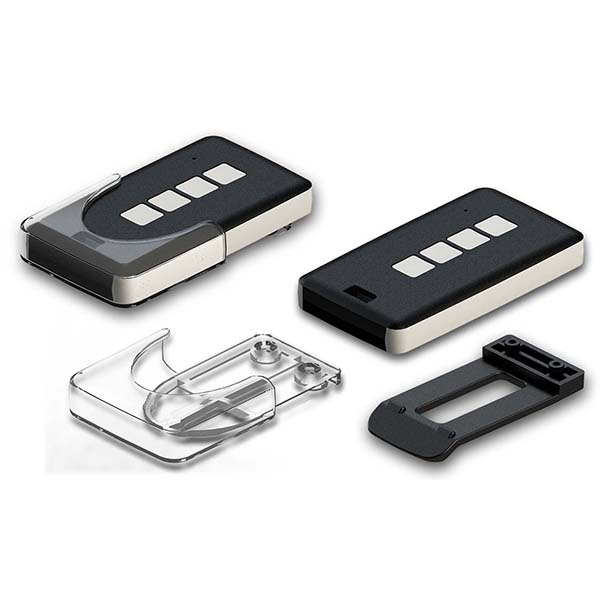

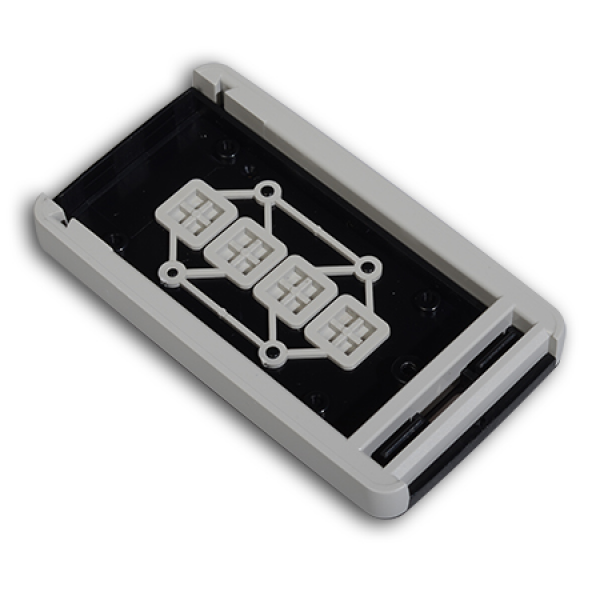

Modern design for the remote control case featuring rounded edges available both as compact unit (13120) and with push button combination from one to four (13121, 13122, 13124). Internal pillars for PCB fixing. Two colour versions: white/light gray and black/light gray. Protection bumper in plastic or polished chromed metal. LED hole on the cover. Closing by one screw. Suitable to accept button cells and battery holder AB2032.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

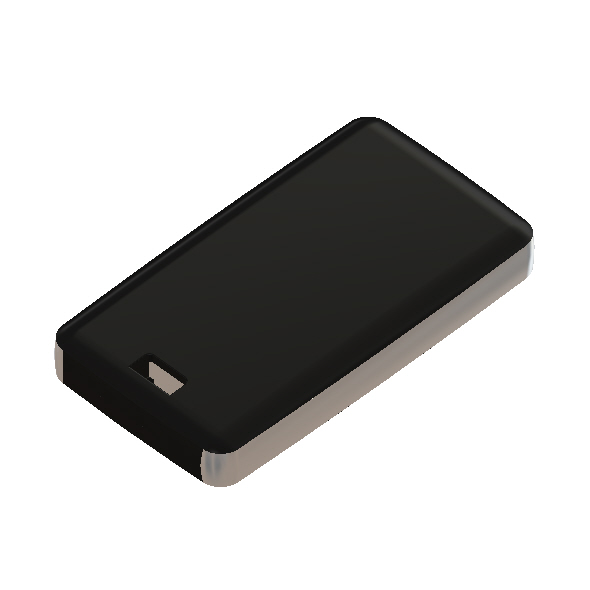

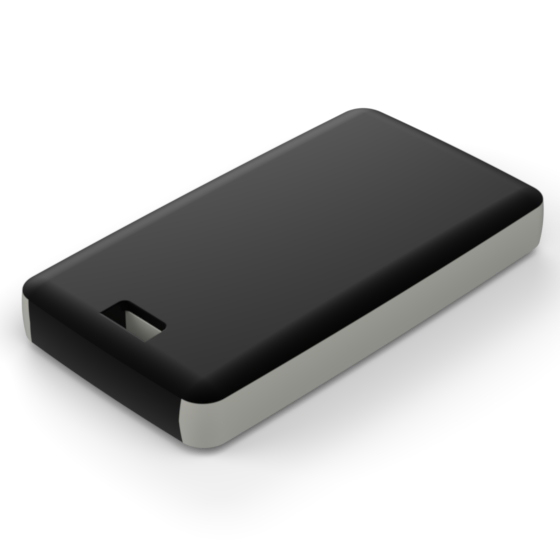

13120.23 | 2,815 | 1,547 | 0,453 |
9004 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

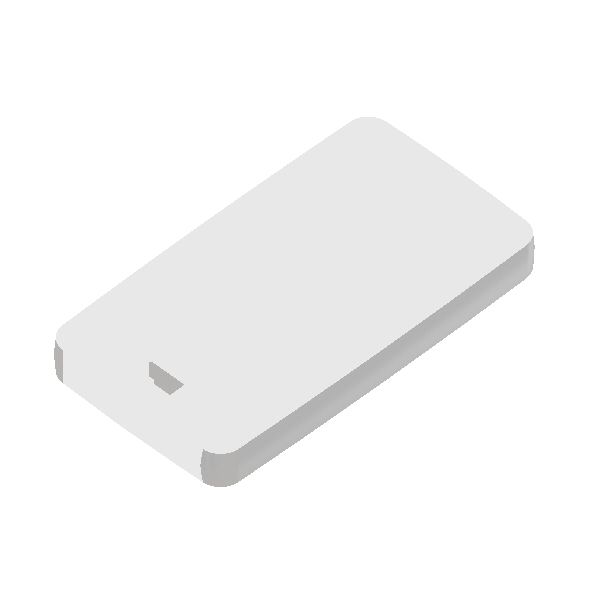

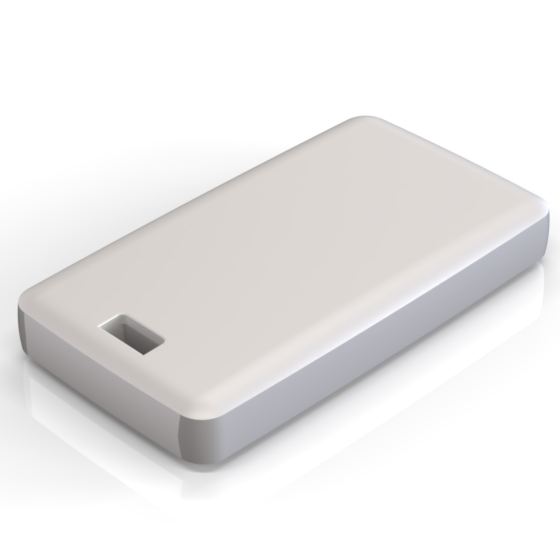

13120.30 | 2,815 | 1,547 | 0,453 |
9002 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

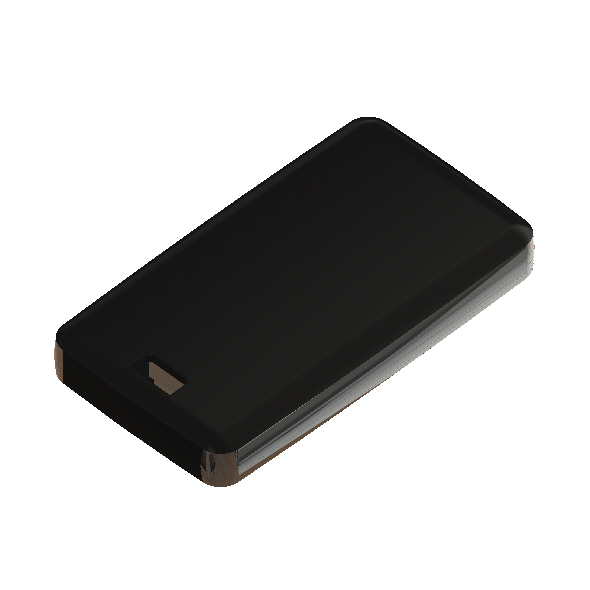

13120.44 | 2,815 | 1,547 | 0,453 |
9004 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

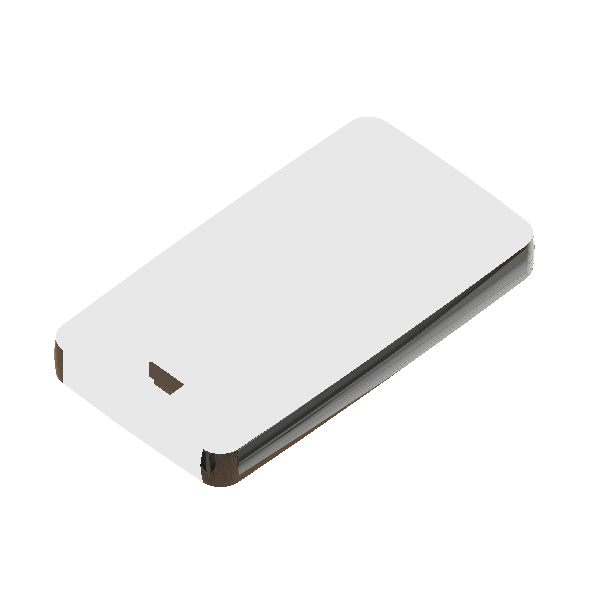

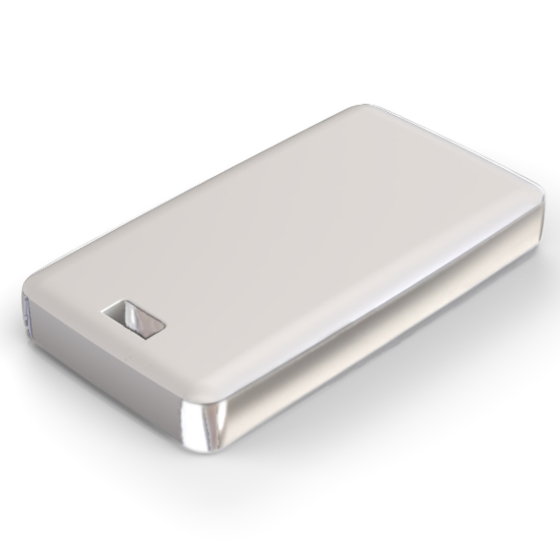

13120.47 | 2,815 | 1,547 | 0,453 |
9002 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

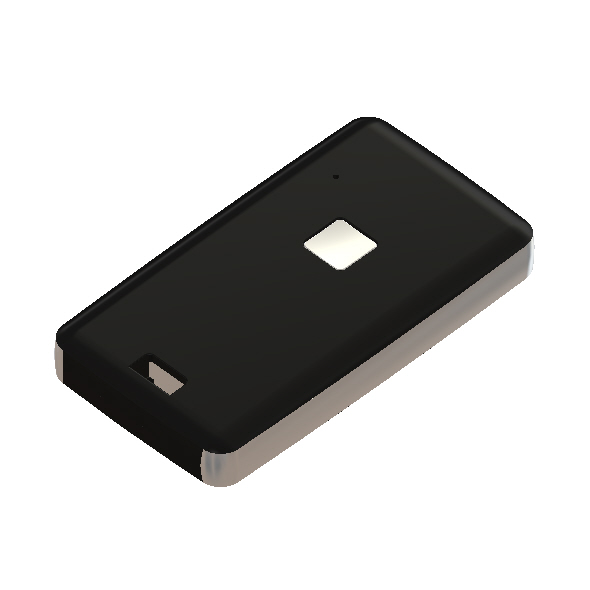

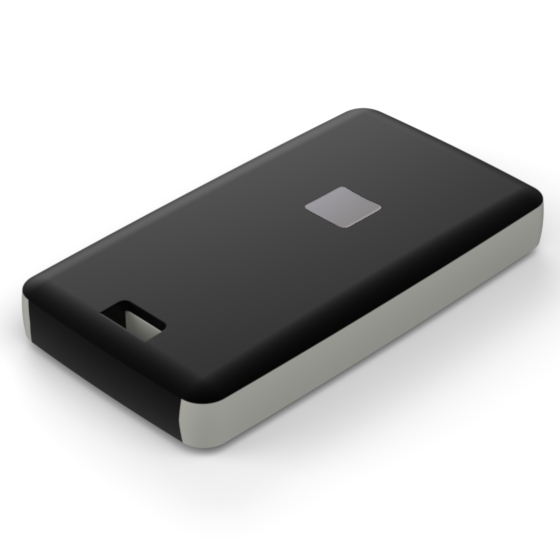

13121.23 | 2,815 | 1,547 | 0,453 |
9004 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

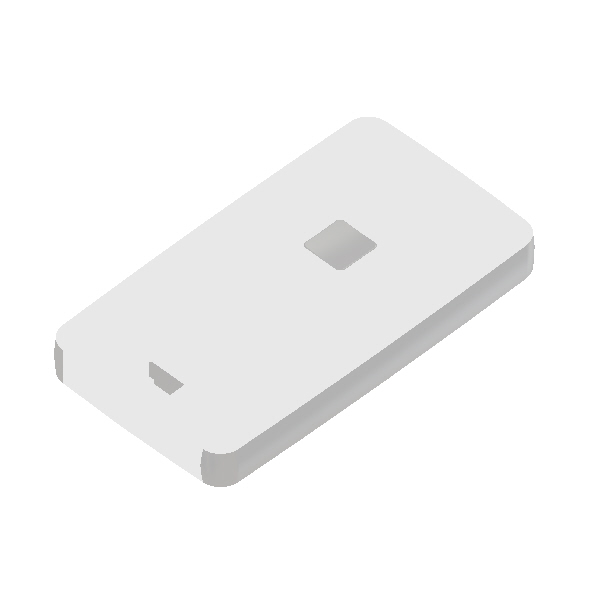

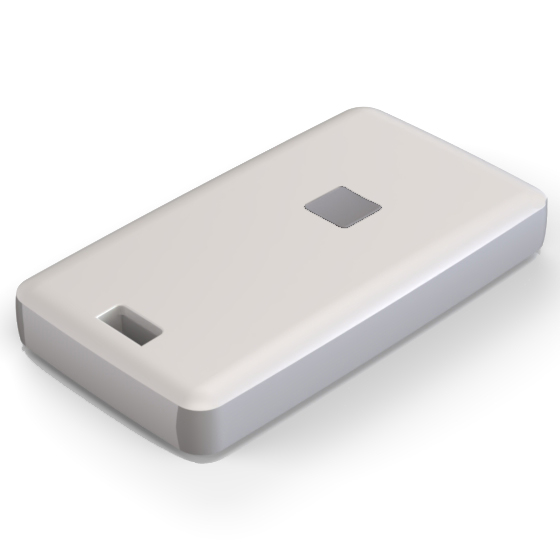

13121.30 | 2,815 | 1,547 | 0,453 |
9002 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

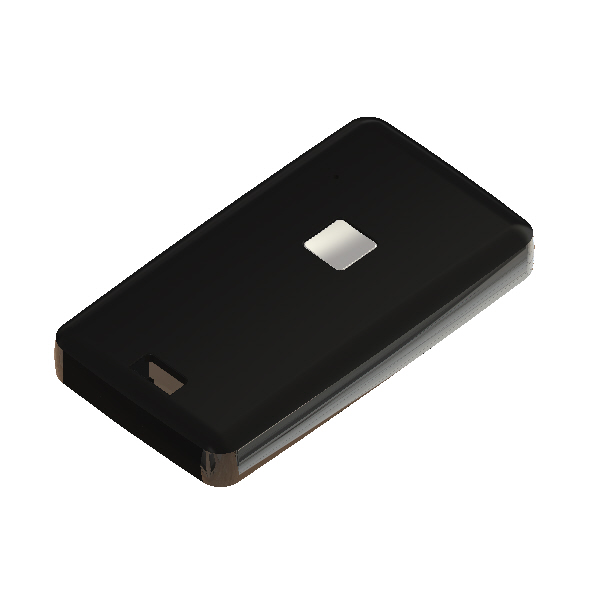

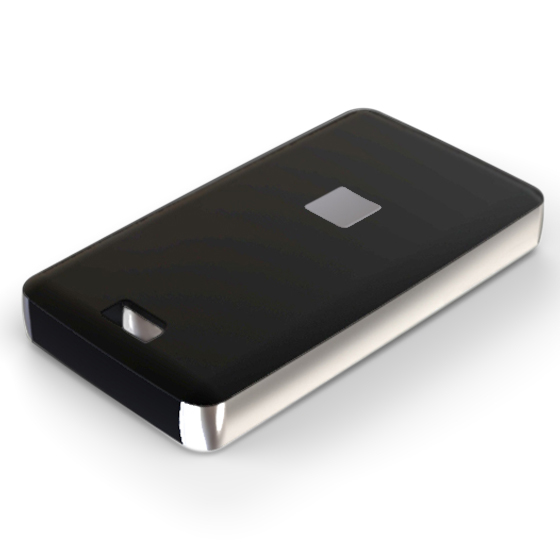

13121.44 | 2,815 | 1,547 | 0,453 |
9004 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

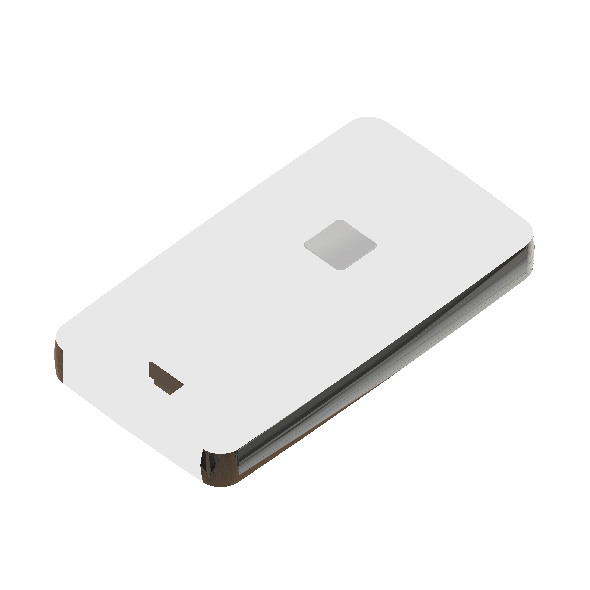

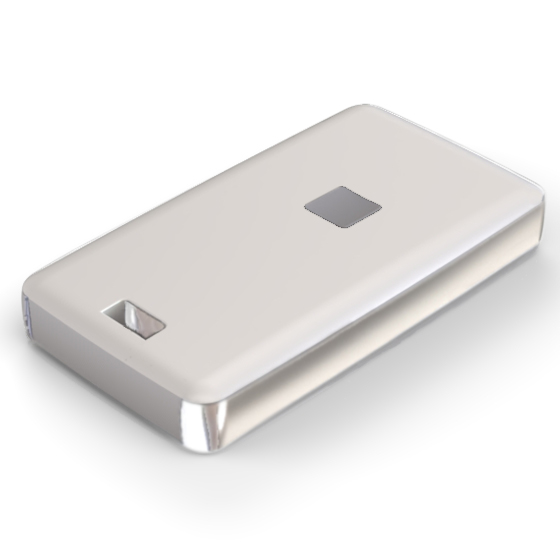

13121.47 | 2,815 | 1,547 | 0,453 |
9002 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

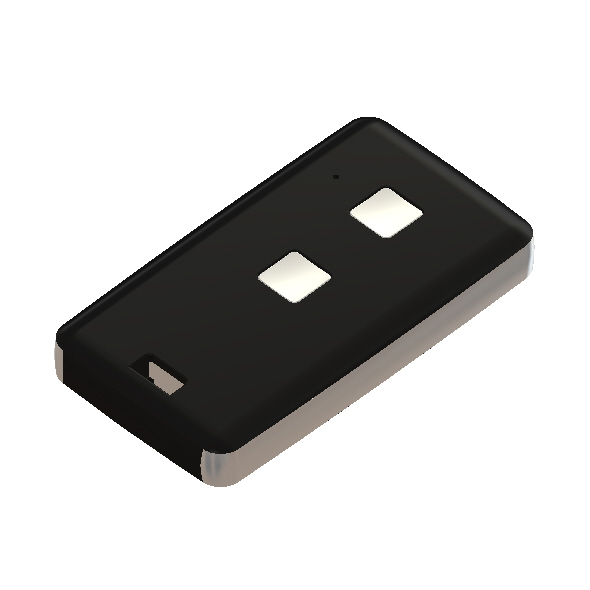

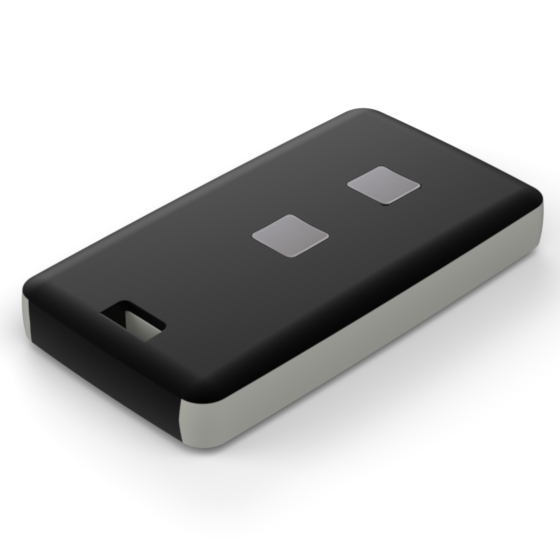

13122.23 | 2,815 | 1,547 | 0,453 |
9004 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

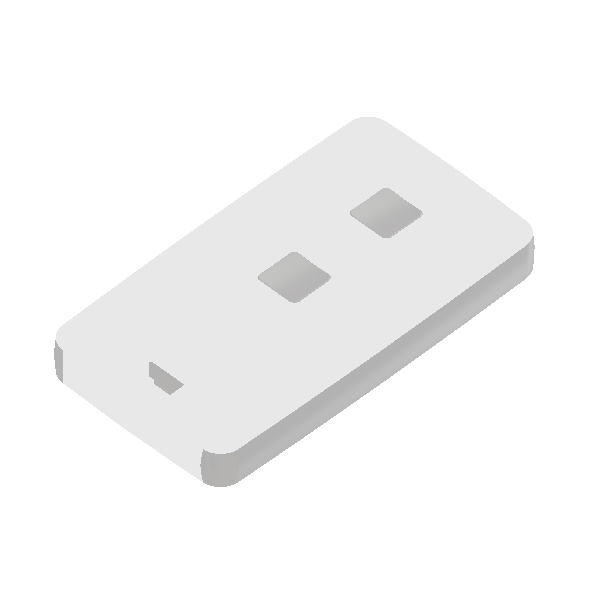

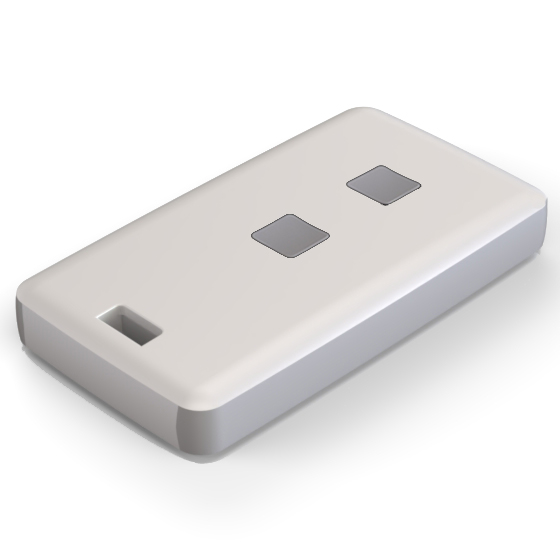

13122.30 | 2,815 | 1,547 | 0,453 |
9002 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

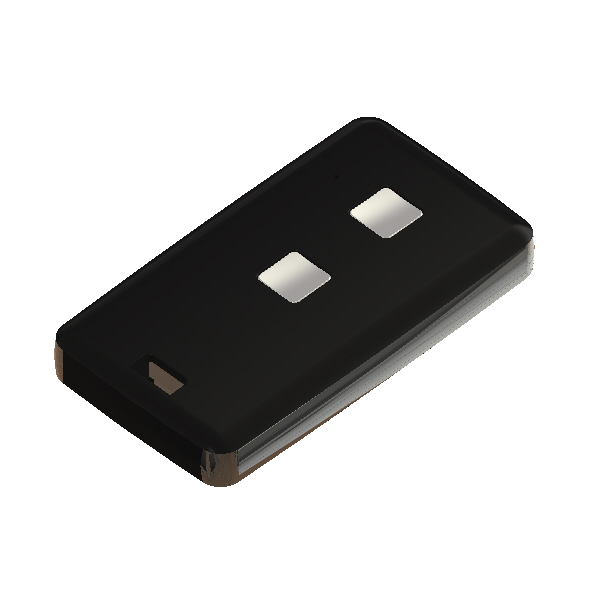

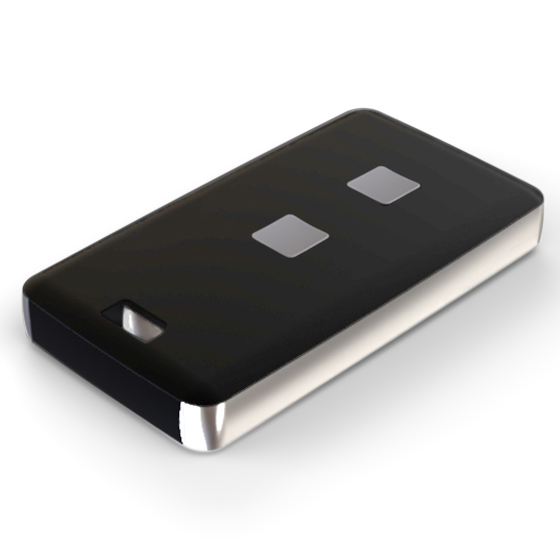

13122.44 | 2,815 | 1,547 | 0,453 |
9004 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

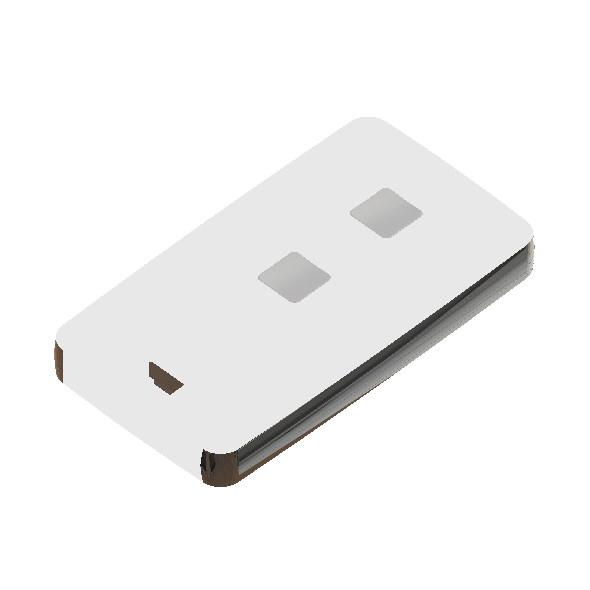

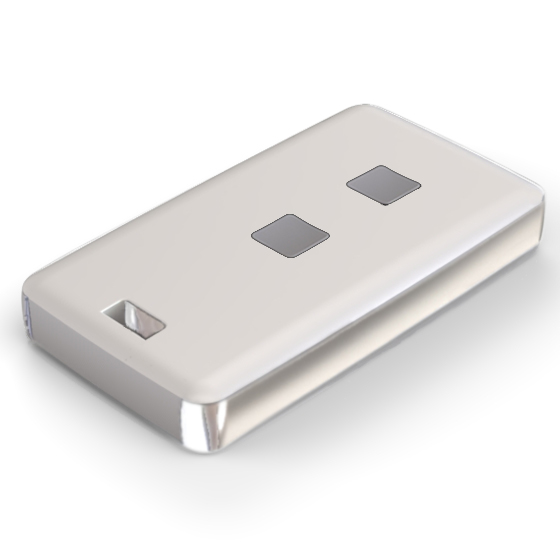

13122.47 | 2,815 | 1,547 | 0,453 |
9002 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

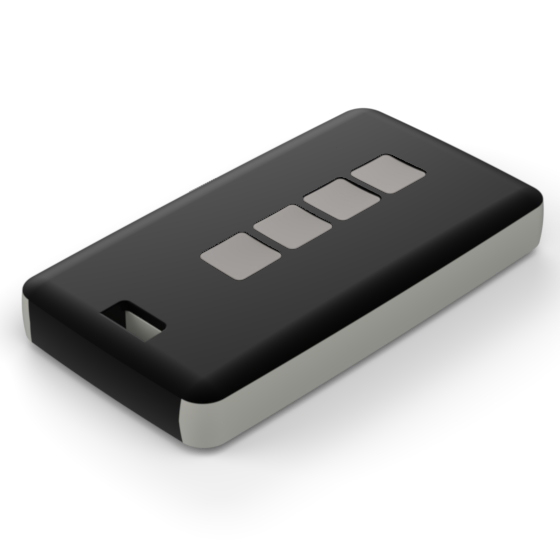

13124.23 | 2,815 | 1,547 | 0,453 |
9004 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

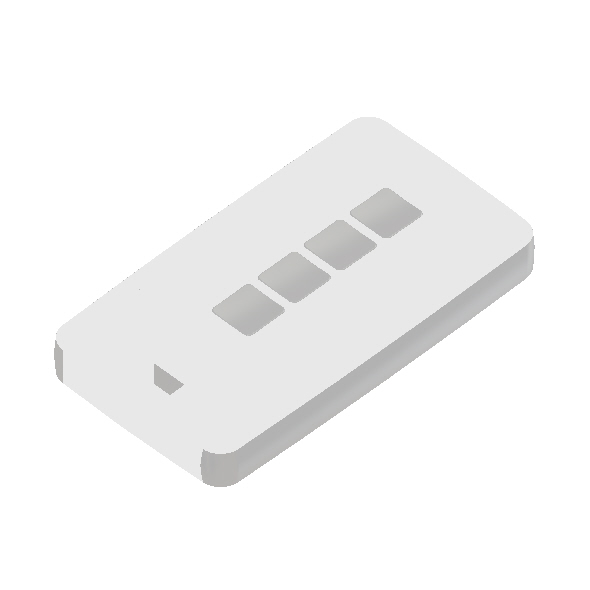

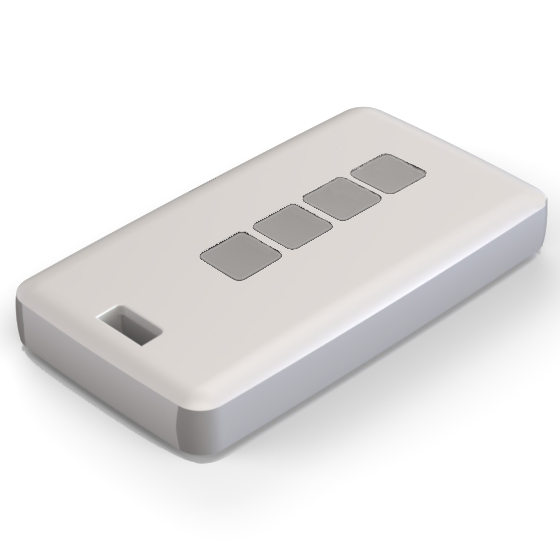

13124.30 | 2,815 | 1,547 | 0,453 |
9002 9018 |
P2H-AT | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

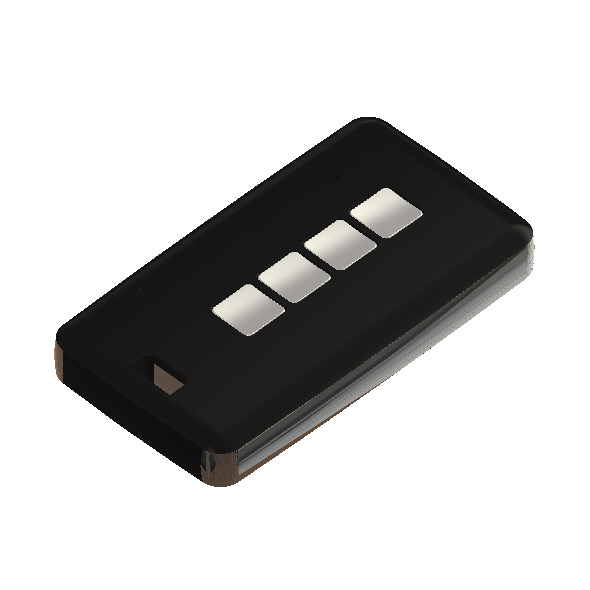

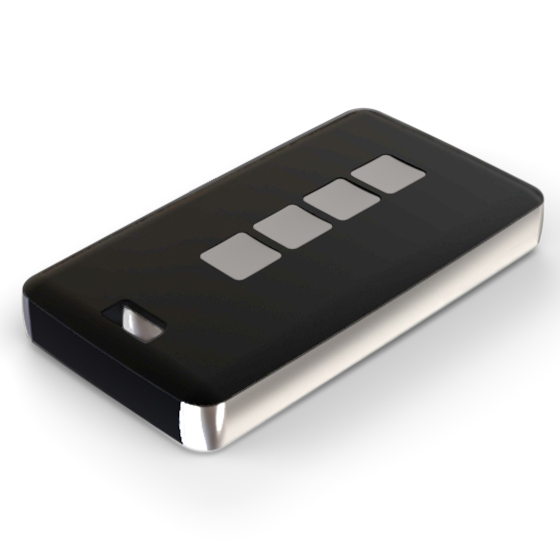

13124.44 | 2,815 | 1,547 | 0,453 |
9004 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

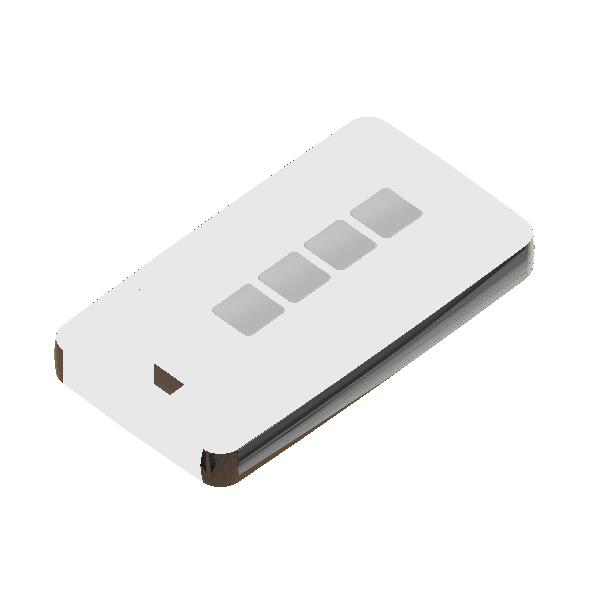

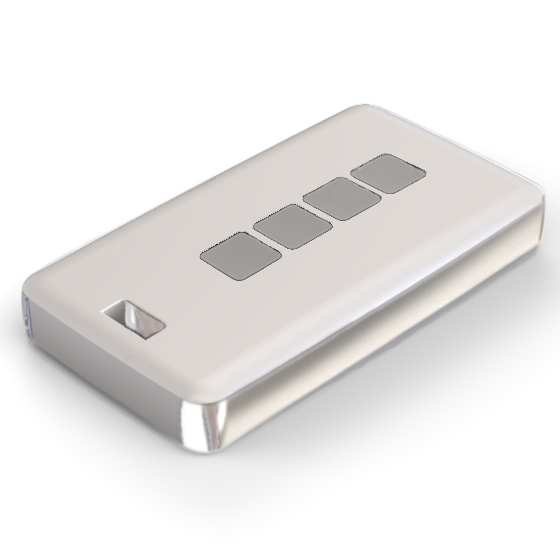

13124.47 | 2,815 | 1,547 | 0,453 |
9002 |
P2H-AT - ZA4C1 | 2,047 | 1,063 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
