SE-DW

Family Pocket - Electronic enclosures - Plastic

Description

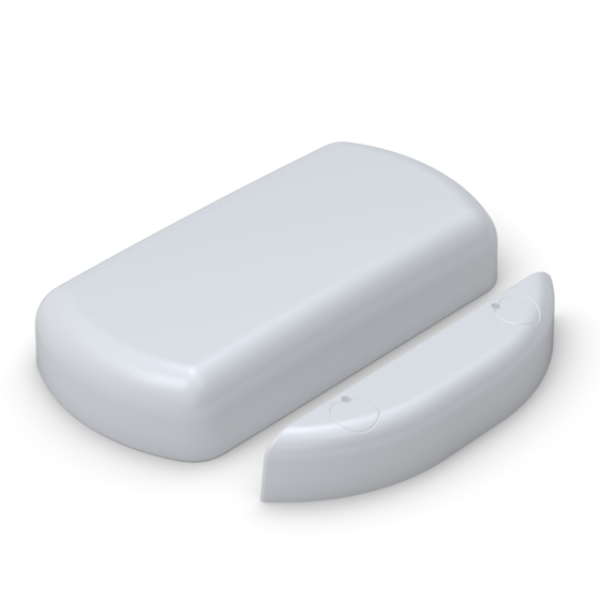

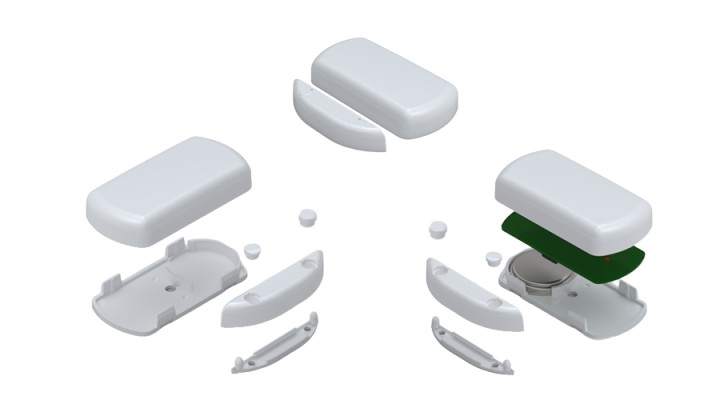

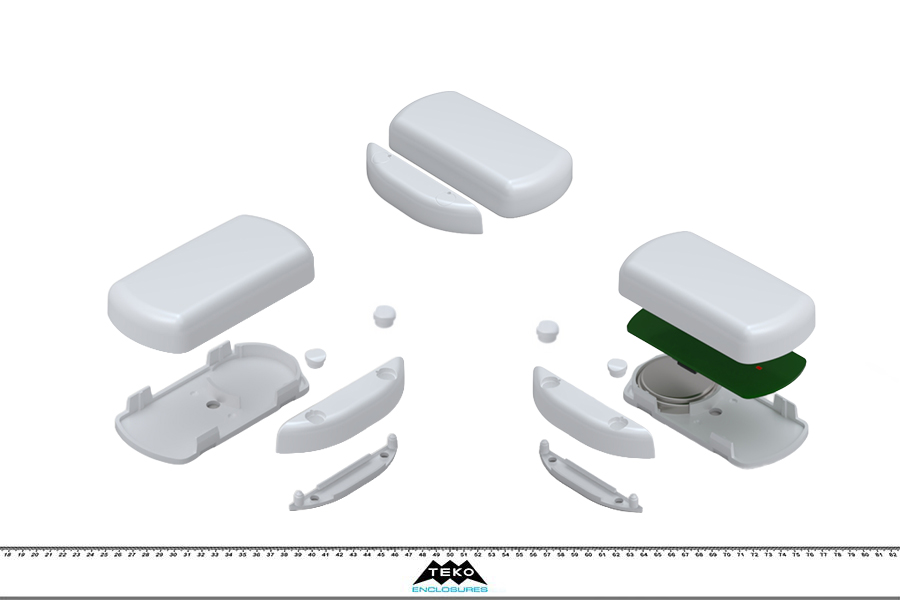

Kit of enclosures designed for the housing of cards and magnetic sensors can detect the opening or closing of doors or windows.

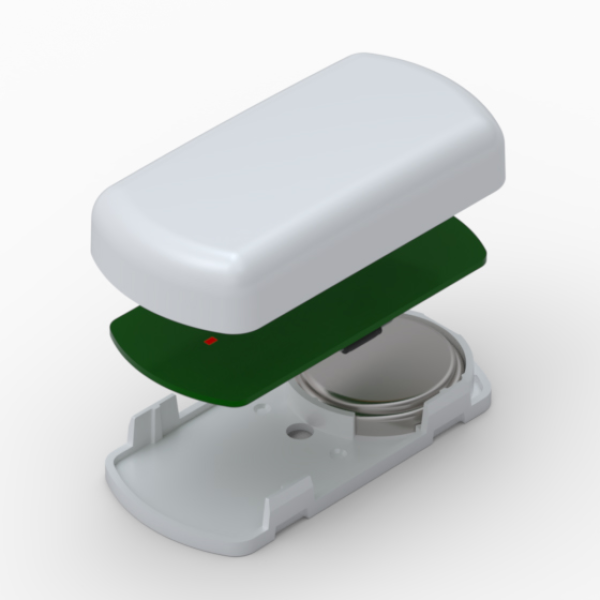

Inside the card case is a slot for a CR2450 button battery (not included). A hole for antitamper switch and a zone permeable to the light of a status led make it suitable for professional use.

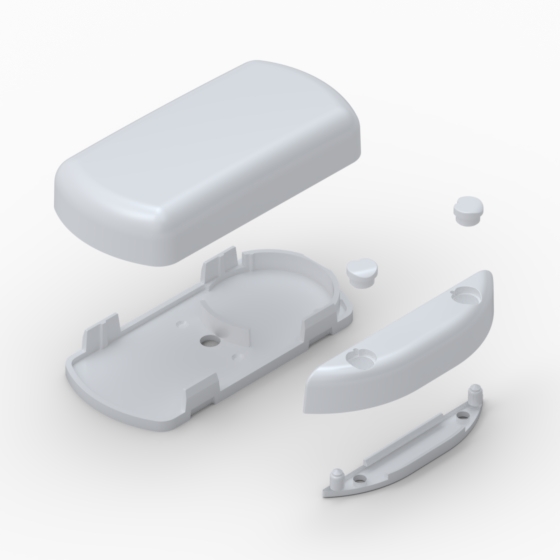

The smaller container is designed for the magnet housing, and is equipped with two interlocking caps to cover and protect the wall mounting screws.
Printed in white V0 self-extinguishing ABS material, they are equipped with an effective and intuitive snap closure system.
You can also buy separately the container for the board suitable for other environmental detection applications, such as flood detectors.
The contemporary line and the small size make it suitable for applications that require a functional aesthetic within design environments.
Possibility of customization with digital prints or laser markings.


Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
SE-DW.3
NEW
      9003
ASYBLEND T65         PDF
DWG
View
SE01.3
NEW
2,39 1,19 0,43 9003
ASYBLEND T65       CR2450 PDF
DWG
View
