Description

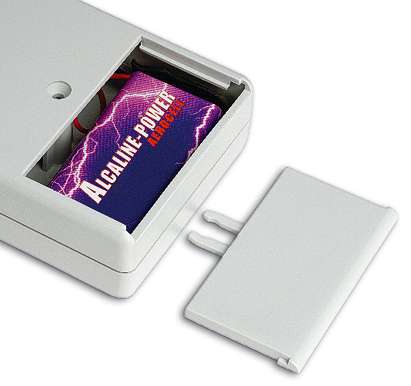

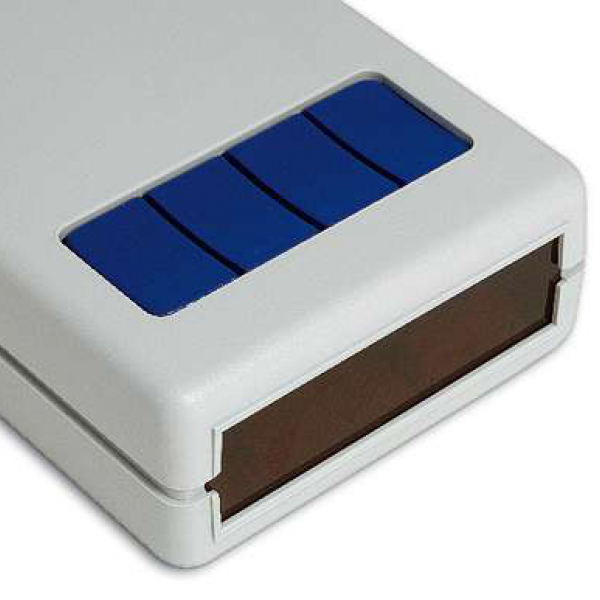

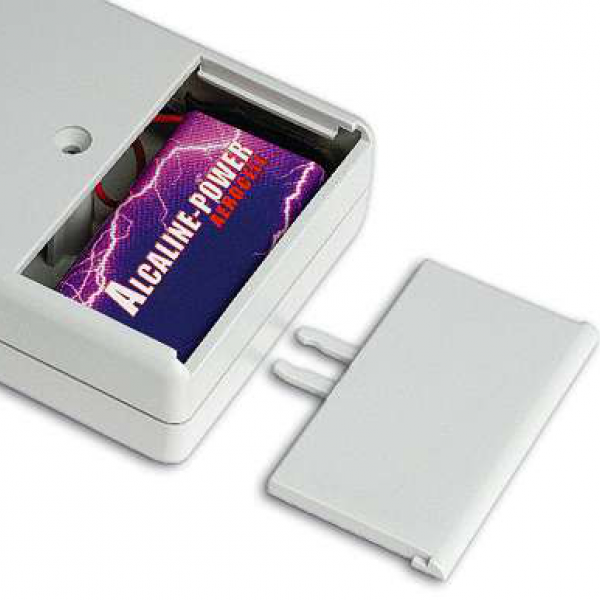

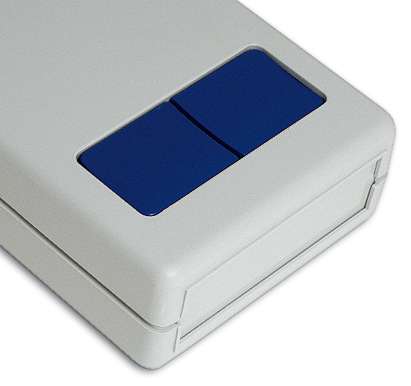

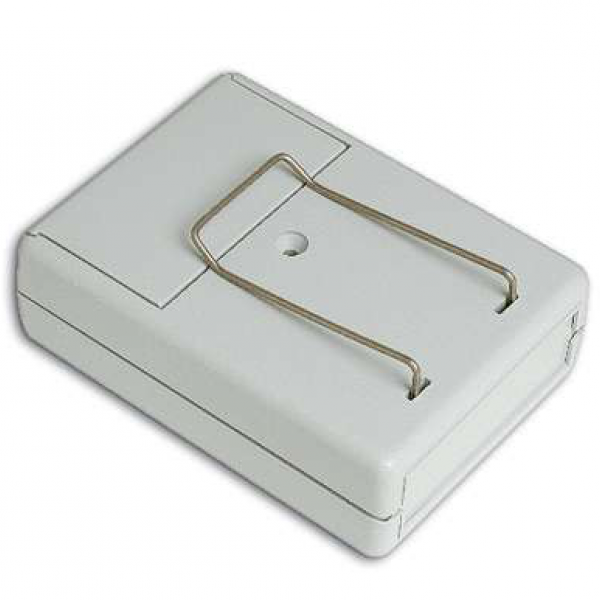

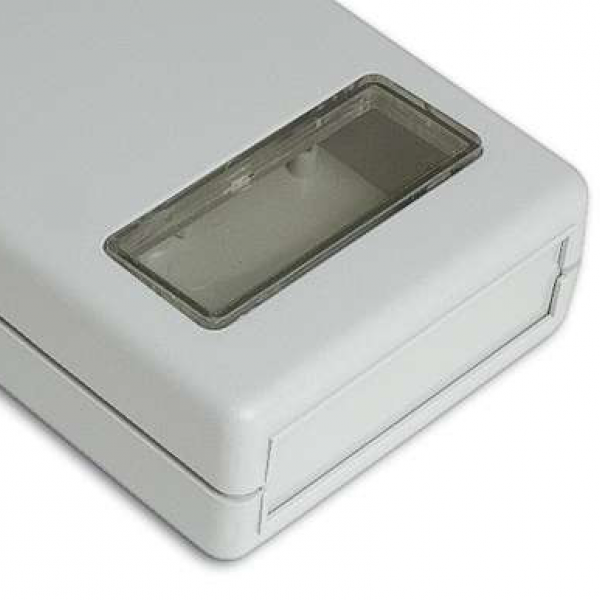

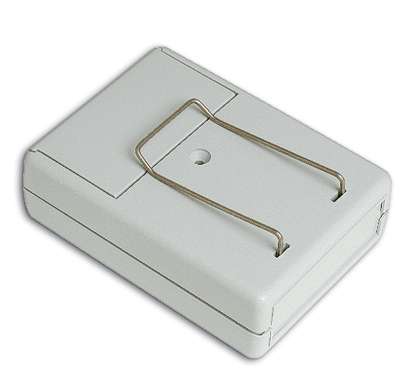

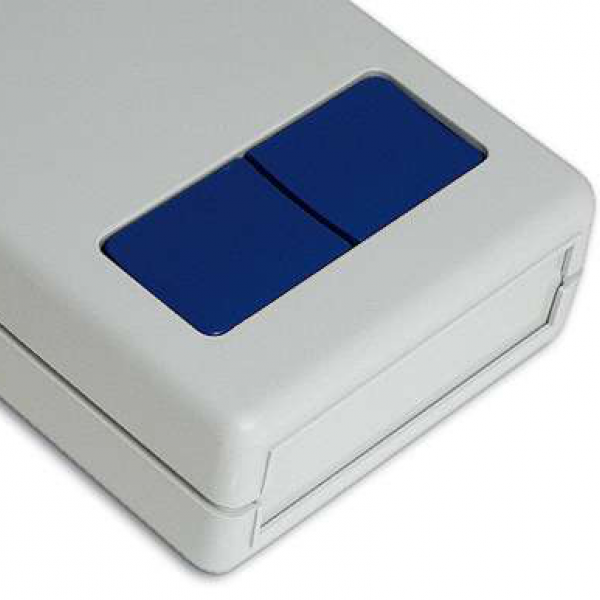

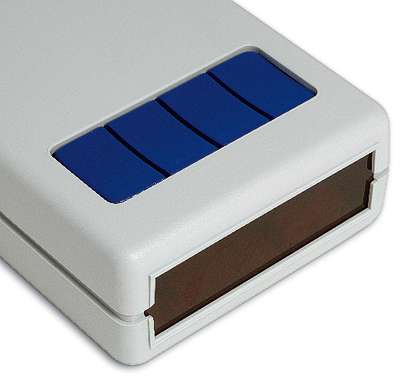

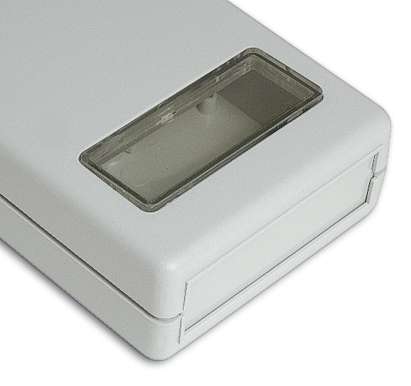

ABS enclosures with rounded corners. 9V battery compartment with a snap sliding lid. The model “10124” have one, two and four blue push-buttons set. The model “10005-DW1” have on the top a transparent window. The models “10005-B”, “10005-DW1” and “10124” have a front IR-panel replaceable by a plastic panel coloured as the box. Matt surface finish. Closing by only one screw. Upon request stainless steel clip (Mod. CL1).
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

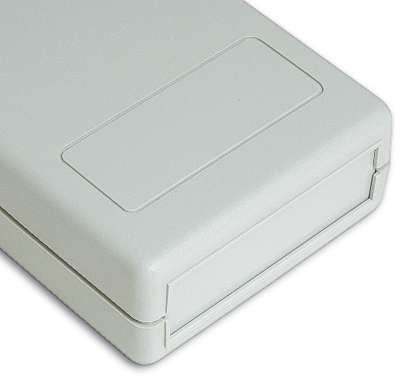

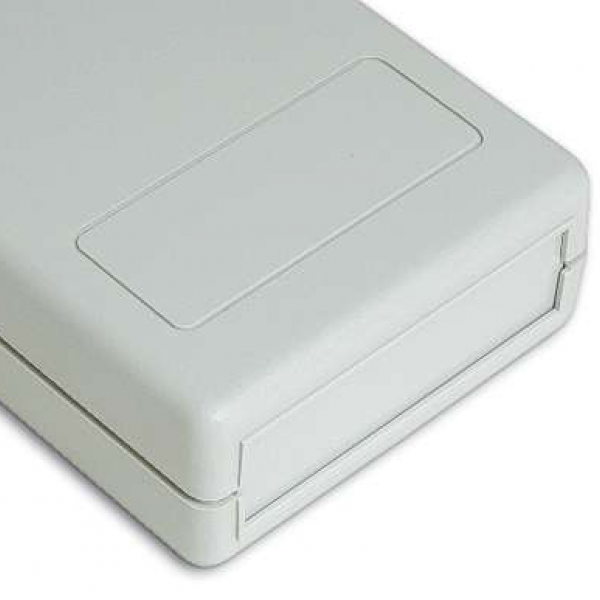

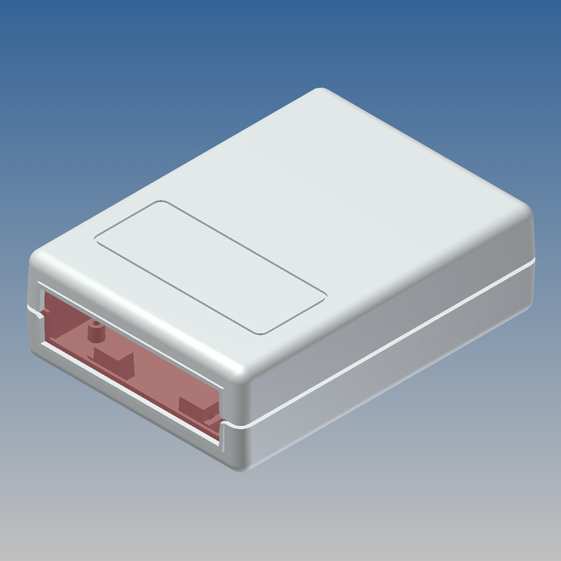

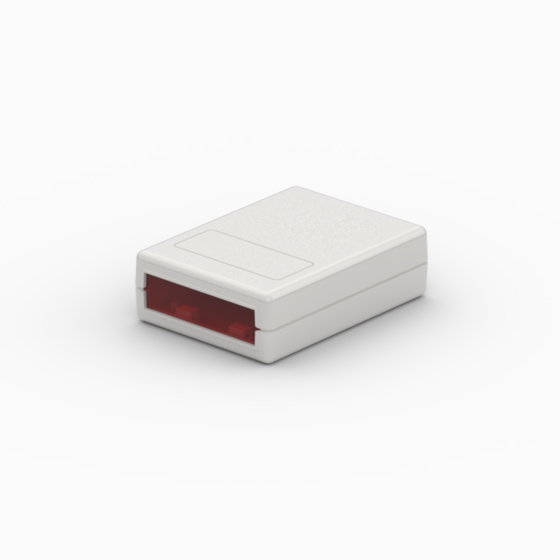

10005-B.5 | 3,228 | 2,362 | 0,984 |
9018 |
AG-ATY | 2,067 | 1,378 | 1 | 1 x 9V |
CL1 |
PDF DWG |
|
|

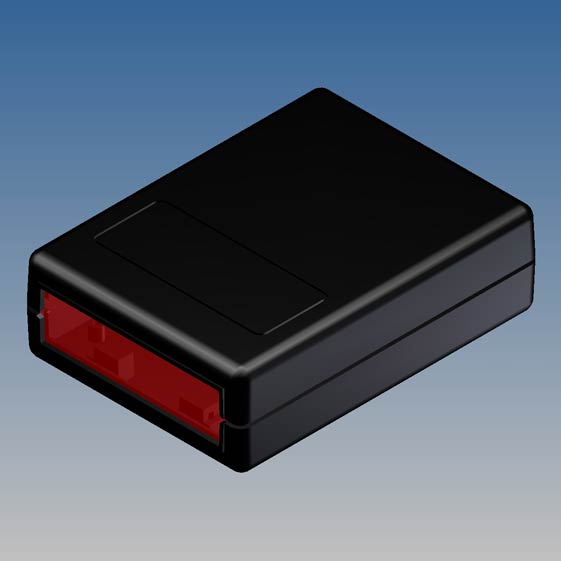

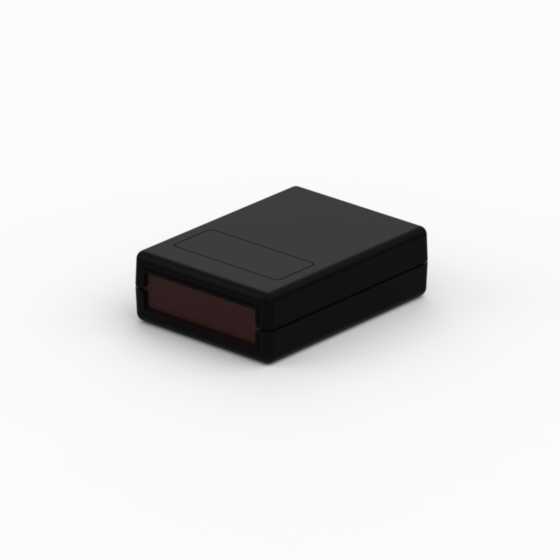

10005-B.9 | 3,228 | 2,362 | 0,984 |
9004 |
P2H-AT | 2,067 | 1,378 | 1 | 1 x 9V |
CL1 |
PDF DWG |
|
|

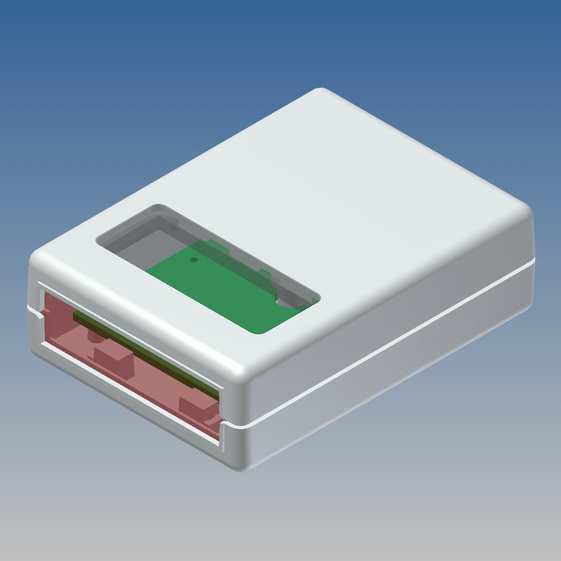

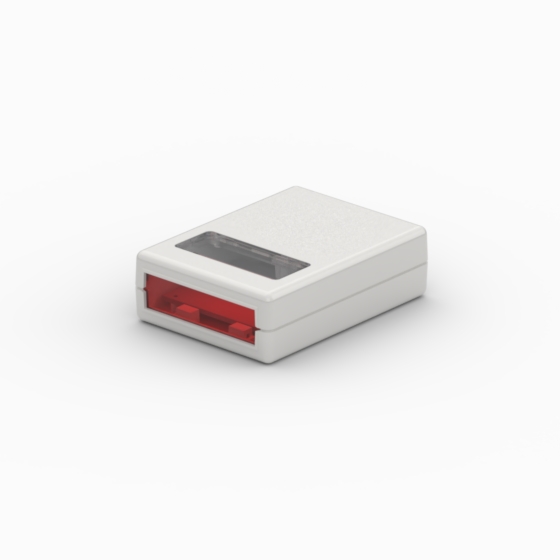

10005-DW1.5 | 3,228 | 2,362 | 0,984 |
9018 |
AG-ATY | 2,067 | 1,378 | 1 | 1 x 9V |
CL1 |
PDF DWG |
|
|

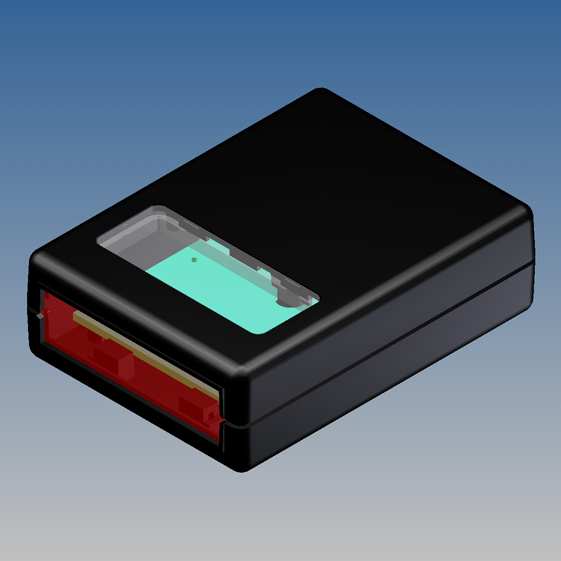

10005-DW1.9 | 3,228 | 2,362 | 0,984 |
9004 |
P2H-AT | 2,067 | 1,378 | 1 | 1 x 9V |
CL1 |
PDF DWG |
|
|

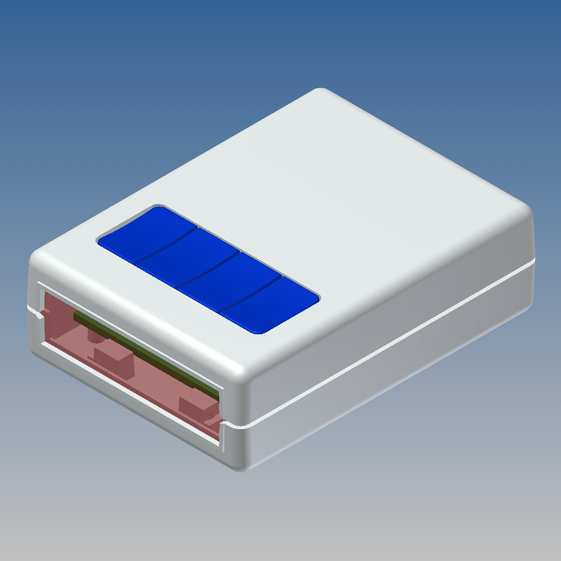

10124.5 | 3,228 | 2,362 | 0,984 |
9018 |
AG-ATY | 2,067 | 1,378 | 1 | 1 x 9V |
CL1 |
PDF DWG |
|
|

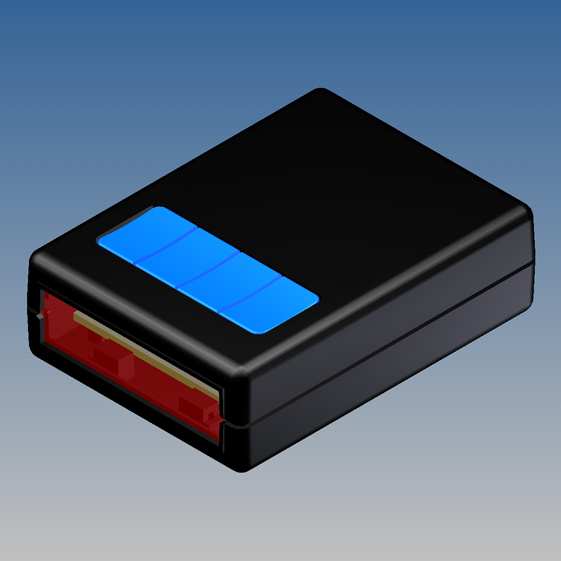

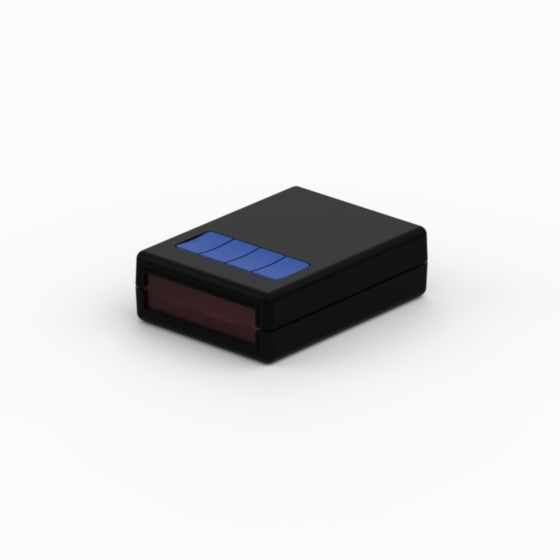

10124.9 | 3,228 | 2,362 | 0,984 |
9004 |
P2H-AT | 2,067 | 1,378 | 1 | 1 x 9V |
CL1 |
PDF DWG |
