Description

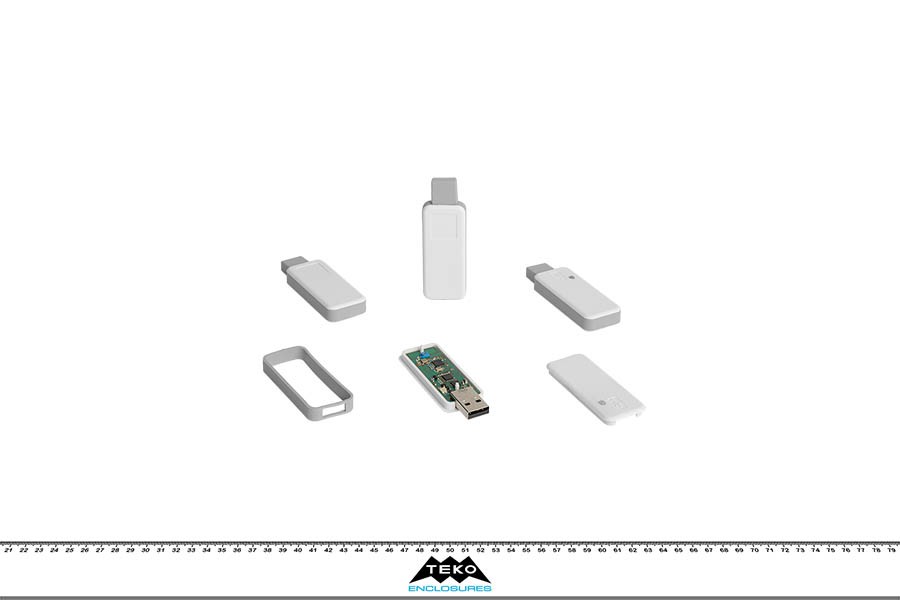

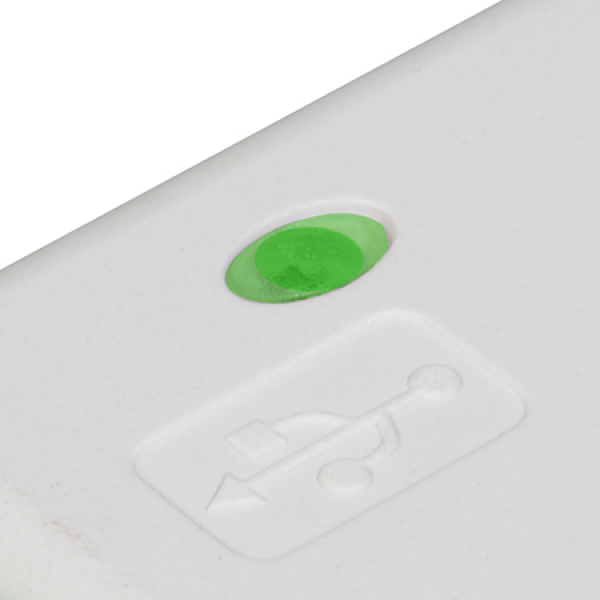

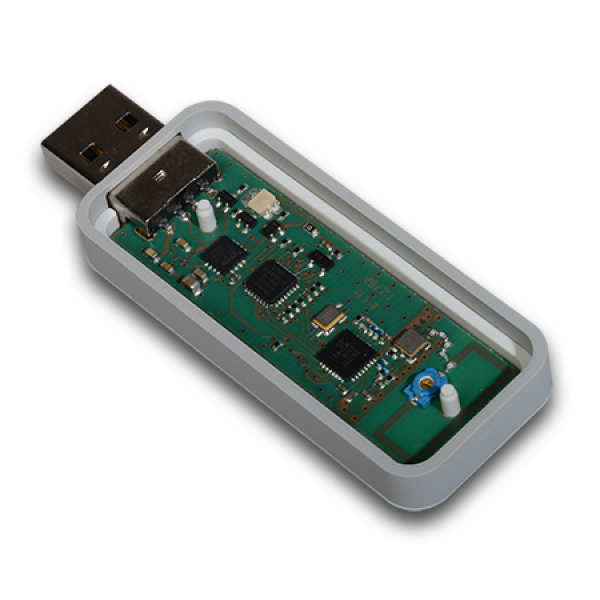

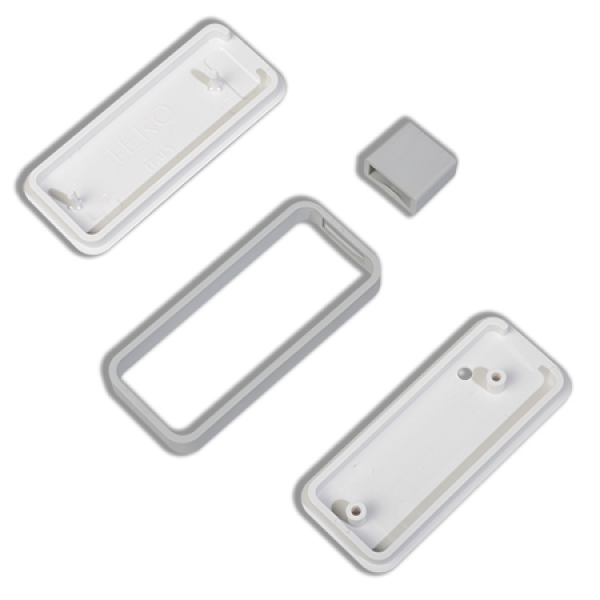

Modern and essential design for the case designed to house the most diversified USB devices such as Dongle, Pendrive and wireless transmitters. Snap-on lid and bottom closure completed by a soft-feel protection bumper and a rubber cap. LED guide light on the cover to monitor device activity. Recessed area on the bottom for labels and markings. Standard white and light gray colours. Custom colours according to Company identity: MOQ 500 pieces.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

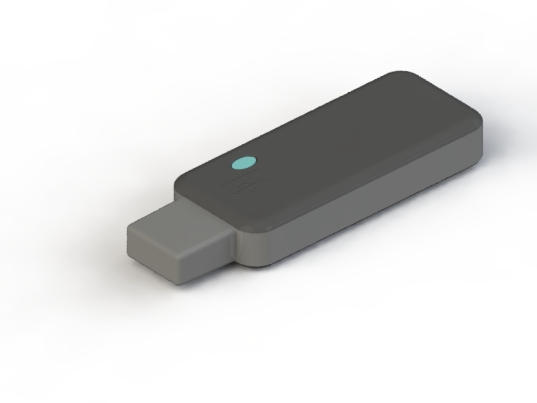

TEK-USB.29 | 2,283 | 0,984 | 0,402 |
9004 7012 |
P2H-AT - 8020 | 1,988 | 0,709 |
PDF DWG |
||||
|

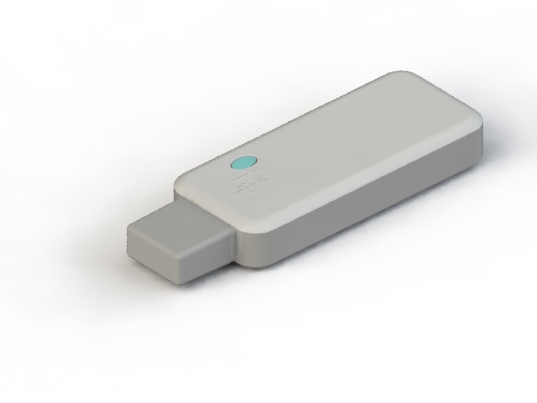

TEK-USB.30 | 2,283 | 0,984 | 0,402 |
9002 9018 |
P2H-AT - 8020 | 1,988 | 0,709 |
PDF DWG |
||||
|

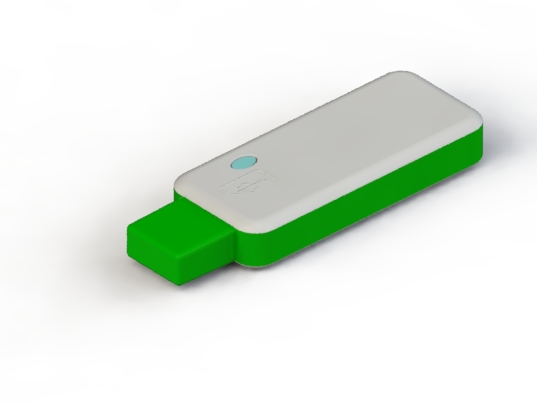

TEK-USB.45 | 2,283 | 0,984 | 0,402 |
9002 6010 |
P2H-AT - 8020 | 1,988 | 0,709 |
PDF DWG |
||||
|

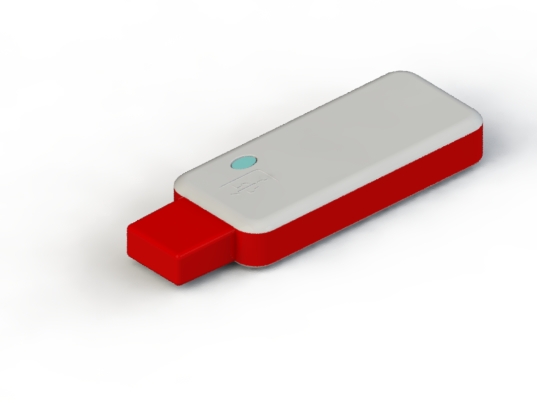

TEK-USB.49 | 2,283 | 0,984 | 0,402 |
9002 3020 |
P2H-AT - 8020 | 1,988 | 0,709 |
PDF DWG |
||||
|

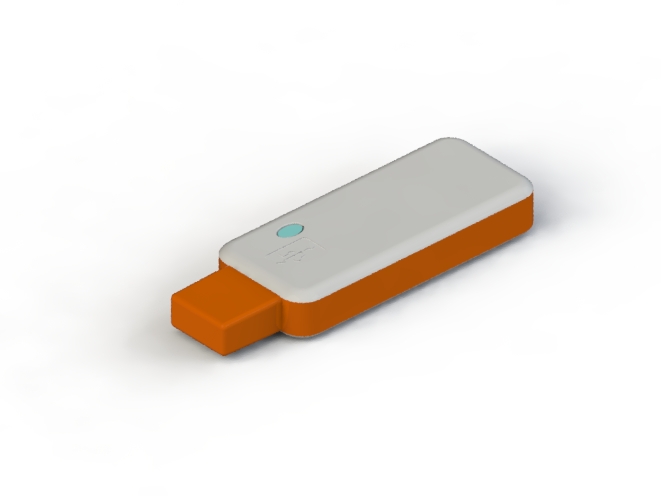

TEK-USB.50 | 2,283 | 0,984 | 0,402 |
9002 5017 |
P2H-AT - 8020 | 1,988 | 0,709 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
