Description

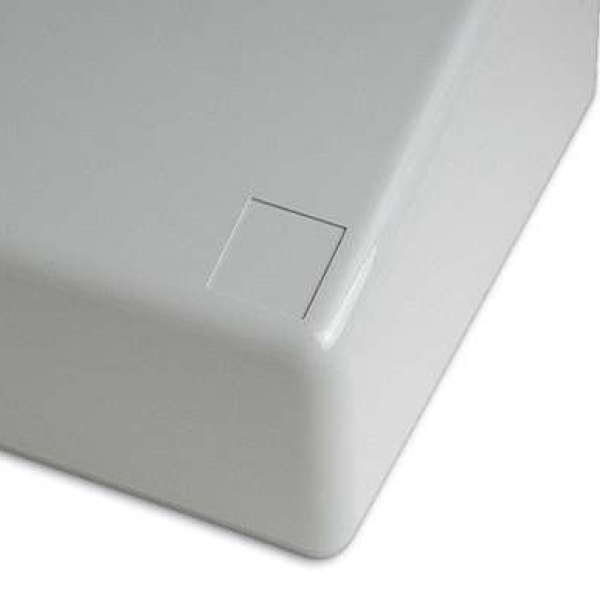

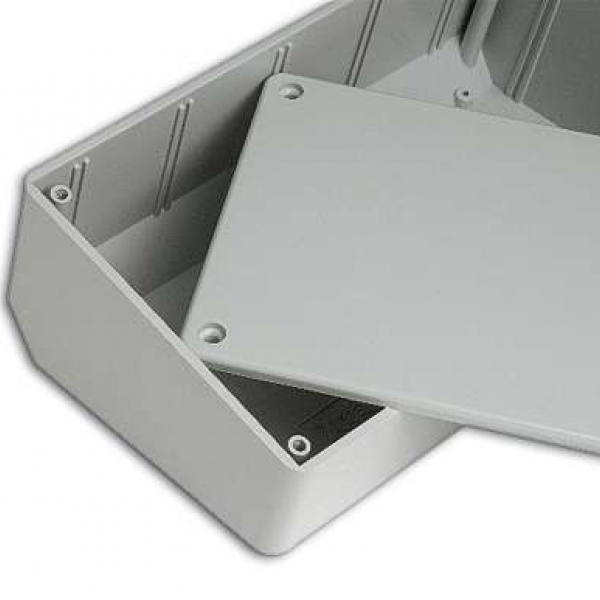

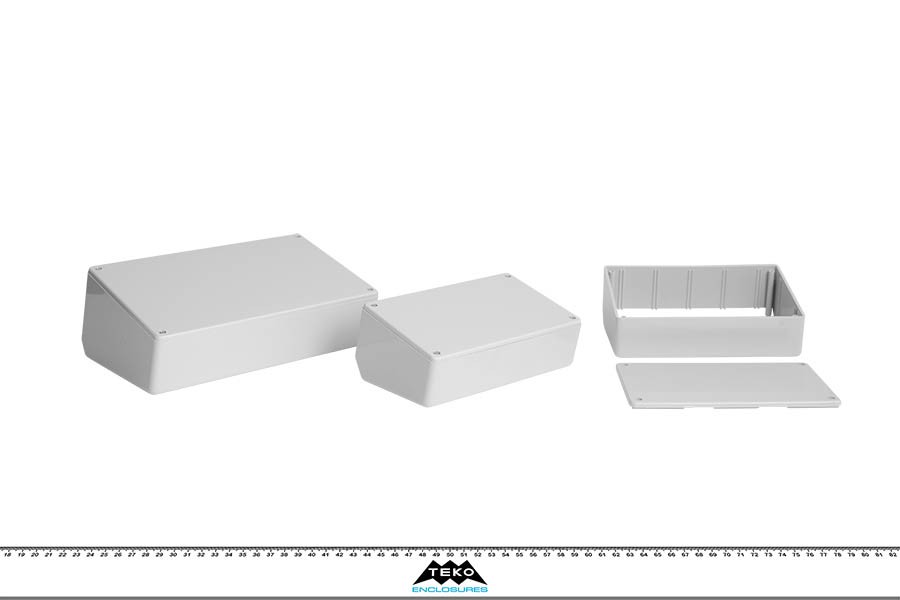

ABS enclosure with a 15° inclined panel. The base walls have integral PCB guides and mounting studs. Rounded corners. Glossy surfaces finish. Closing by four screws.
Products
|
Model |
L (inch) |
W (inch) |
H (inch) |
Color (Ral) |
Material |
MAX PCB L (inch) |
MAX PCB W (inch) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

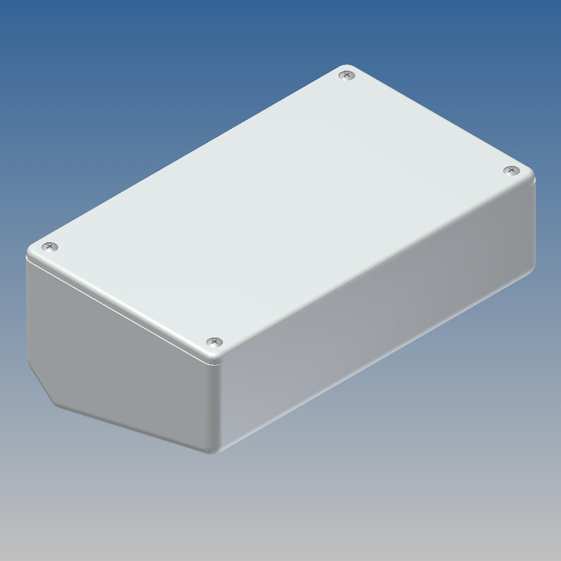

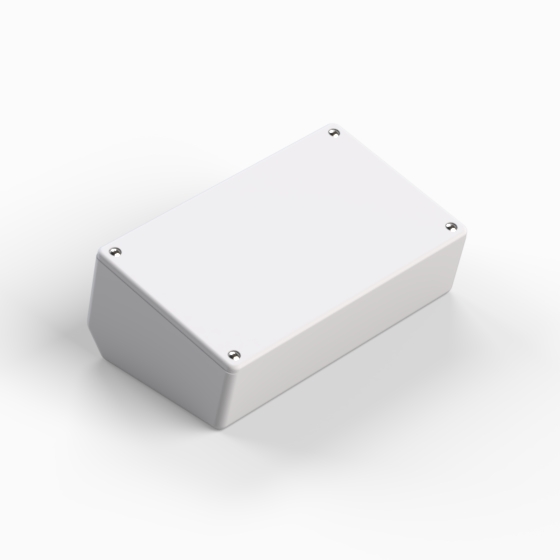

115P.5 |
6,339 |
3,74 |
2,52 |
9018
|
AG-ATY
|
6,024 |
3,189 |
4 |
- |
|
PDF
DWG
|
View
- Color (Ral):
9018
- Material:
AG-ATY
- MAX PCB L (mm): 153
- MAX PCB W (mm): 81
- Screws: 4
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
|

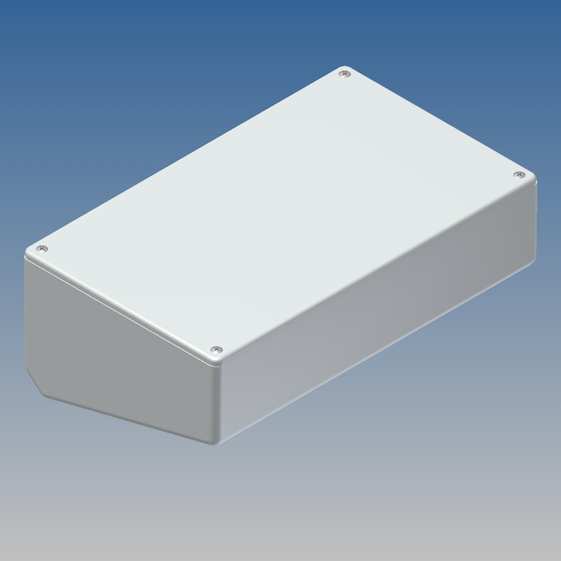

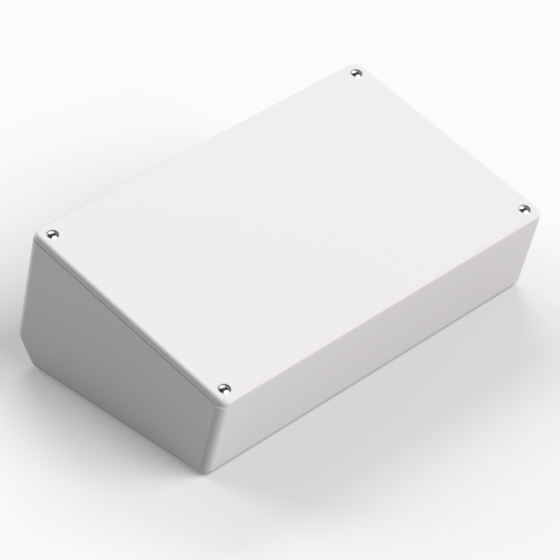

215P.5 |
8,504 |
5,118 |
3,169 |
9018
|
AG-ATY
|
8,189 |
4,665 |
4 |
- |
|
PDF
DWG
|
View
- Color (Ral):
9018
- Material:
AG-ATY
- MAX PCB L (mm): 208
- MAX PCB W (mm): 118,5
- Screws: 4
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
