Description

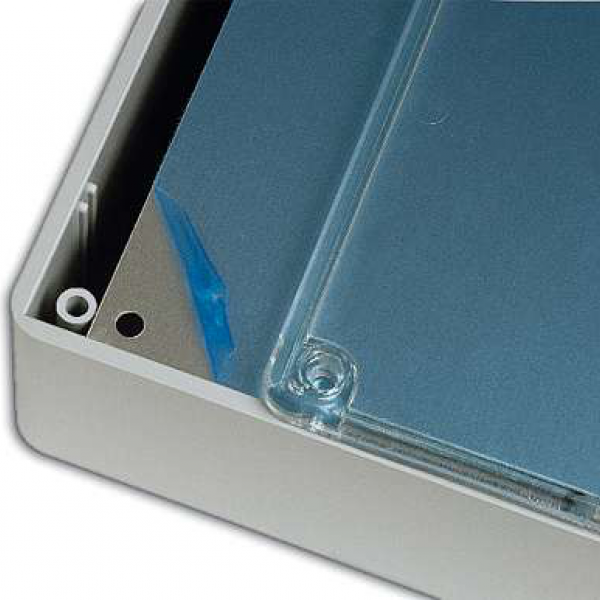

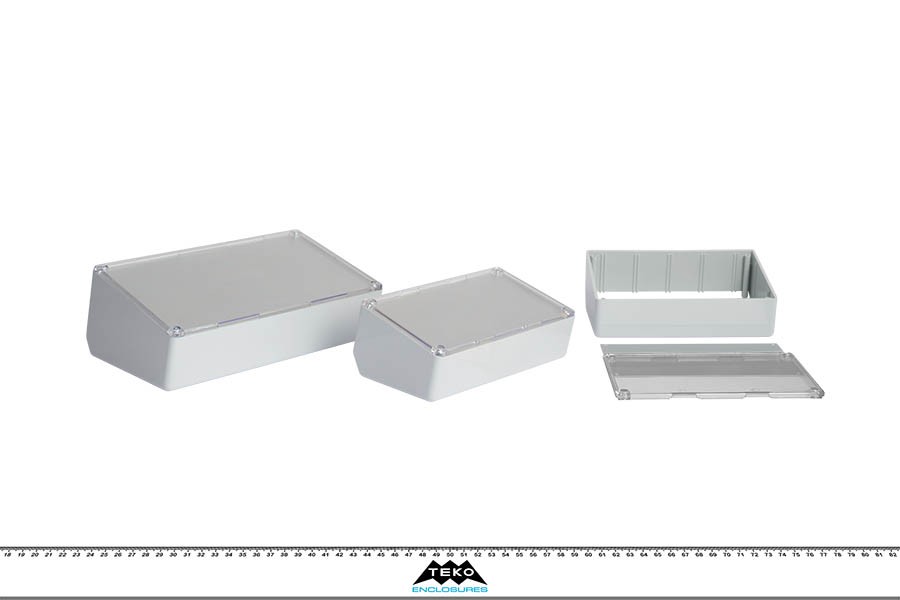

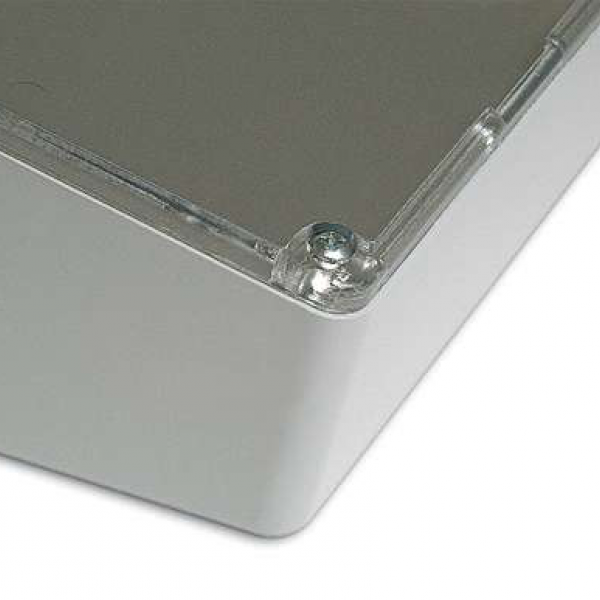

ABS enclosure with a 15° inclined transparent polycarbonate cover that protects an anodised 0.5 mm aluminium panel. The base walls have integral PCB guides and mounting studs. Rounded corners. Glossy surfaces finish. Closing by four screws.
Products
|
Model |
L (inch) |
W (inch) |
H (inch) |
Color (Ral) |
Material |
MAX PCB L (inch) |
MAX PCB W (inch) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

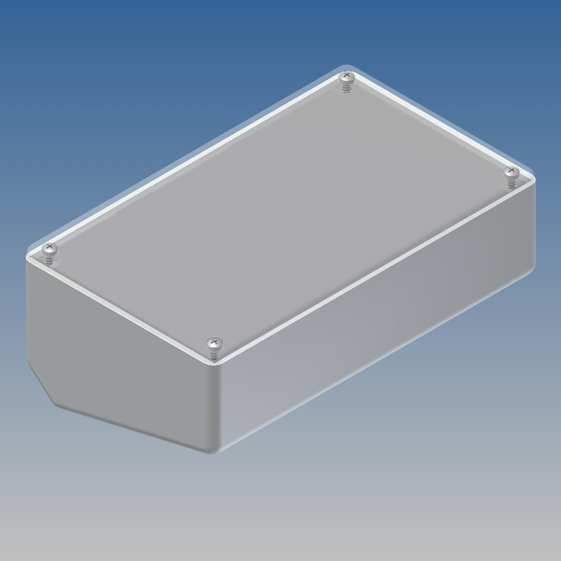

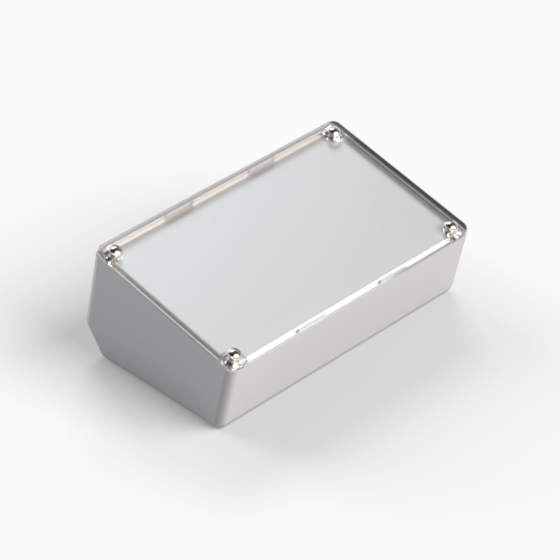

115TP.5 |
6,339 |
3,74 |
2,52 |
9018
|
AG-ATY
-
2407
|
6,024 |
3,189 |
4 |
- |
|
PDF
DWG
|
View
- Color (Ral):
9018
- Material:
AG-ATY
-
2407
- MAX PCB L (mm): 153
- MAX PCB W (mm): 81
- Screws: 4
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
|

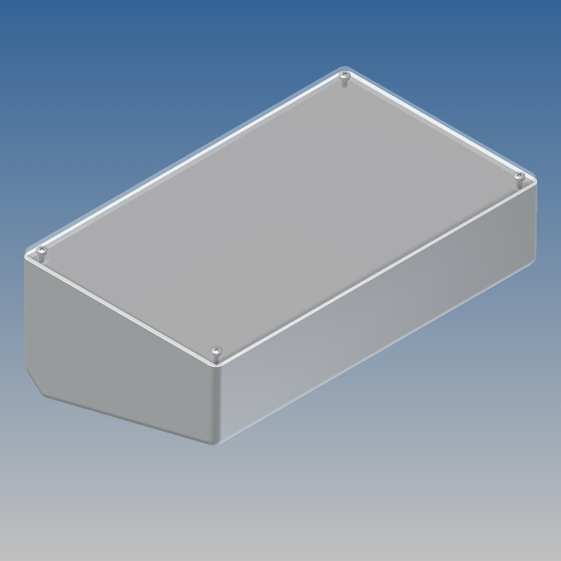

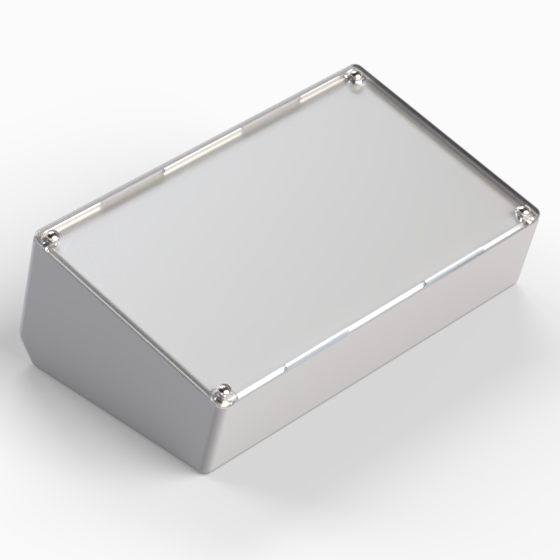

215TP.5 |
8,504 |
5,118 |
3,169 |
9018
|
AG-ATY
-
2407
|
8,189 |
4,665 |
4 |
- |
|
PDF
DWG
|
View
- Color (Ral):
9018
- Material:
AG-ATY
-
2407
- MAX PCB L (mm): 208
- MAX PCB W (mm): 118,5
- Screws: 4
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
