Description

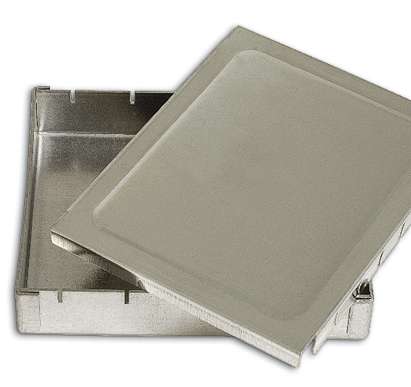

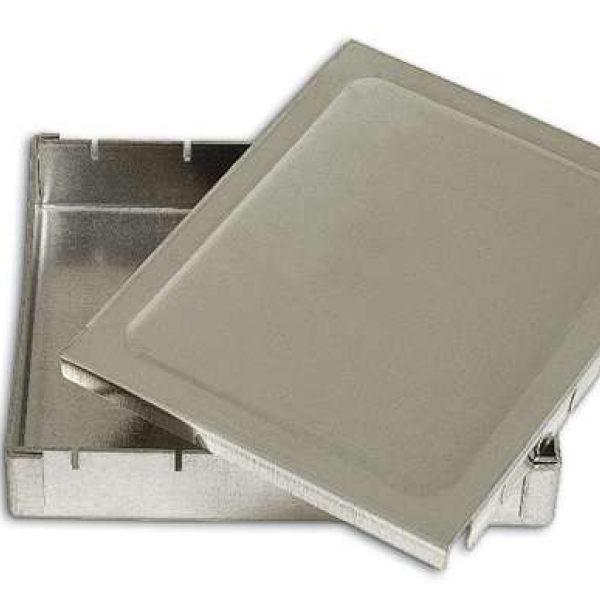

A hot tin-plated steel enclosure with Snap-On, finger-flanged cover and vertical dividers. The dividers have a hole and cutout for wiring. Volume of casing is suitable for easy assembly of professional and High-Technology circuits.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

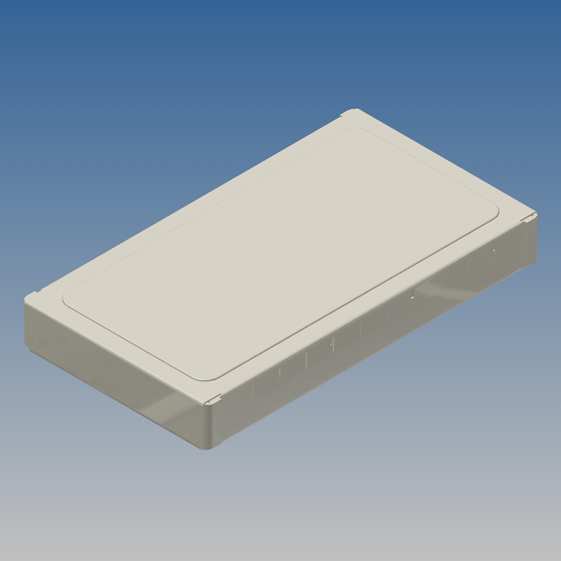

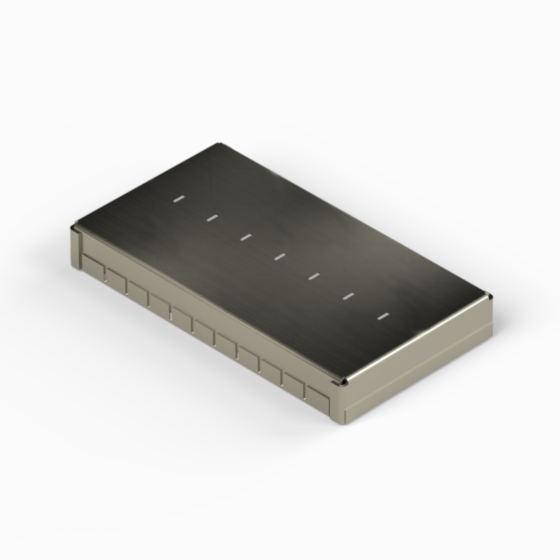

16120.16 | 4,803 | 2,677 | 0,669 |
- |
DC01 | - | - | - | - |
PDF DWG |
||
|

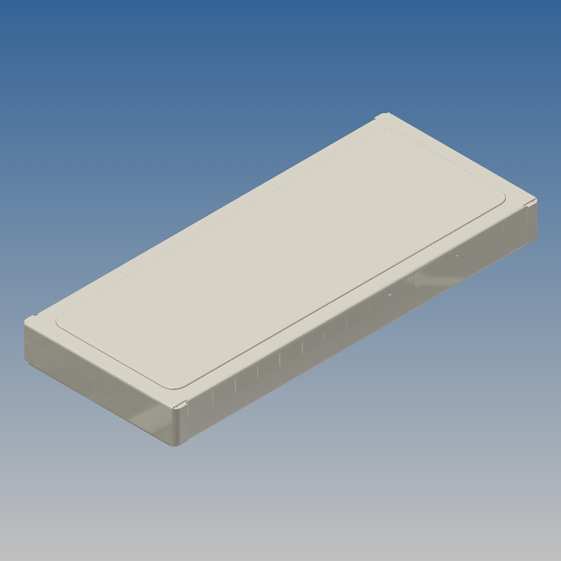

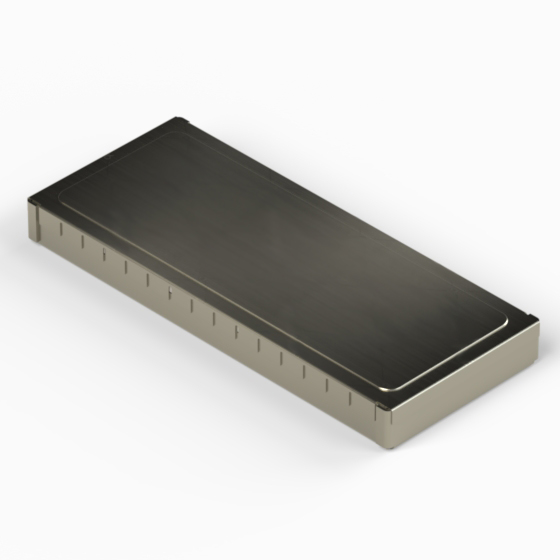

16160.16 | 6,339 | 2,677 | 0,669 |
- |
DC01 | - | - | - | - |
PDF DWG |
||
|

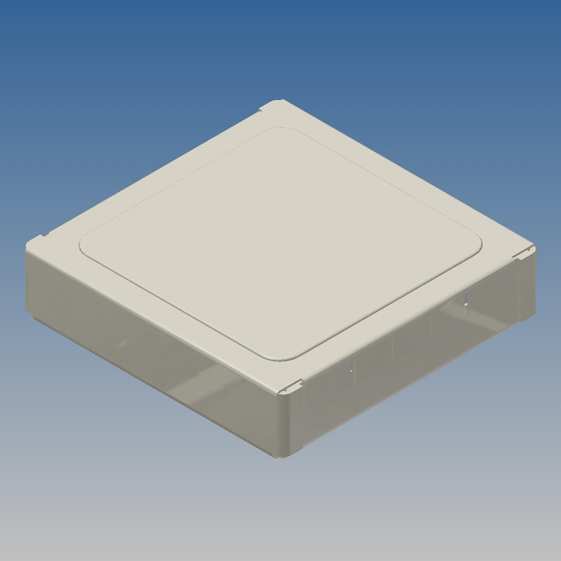

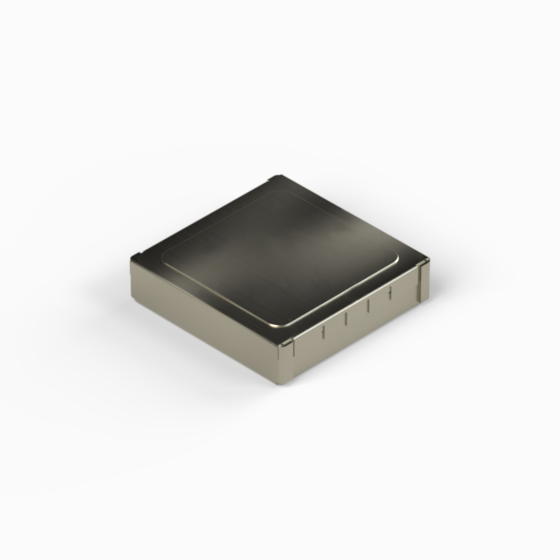

1661.16 | 2,657 | 2,677 | 0,669 |
- |
DC01 | - | - | - | - |
PDF DWG |
||
|

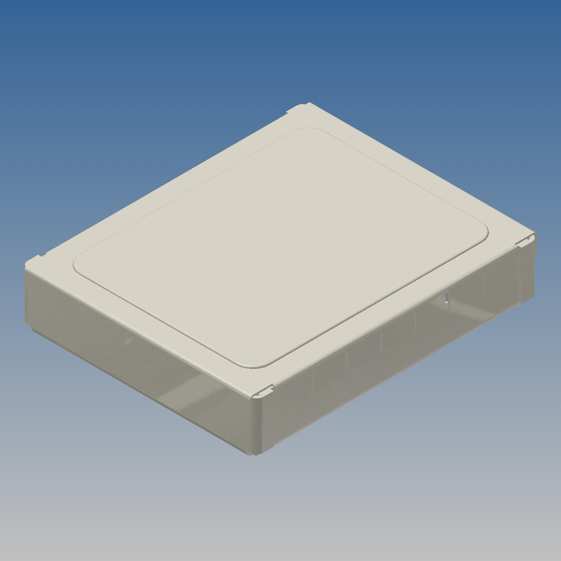

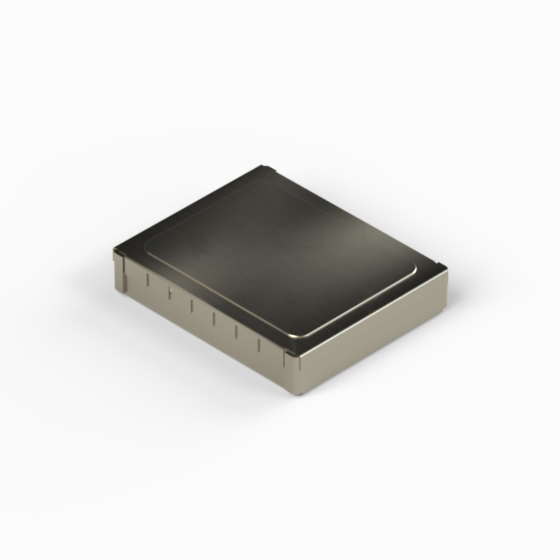

1680.16 | 3,248 | 2,677 | 0,669 |
- |
DC01 | - | - | - | - |
PDF DWG |
