Description

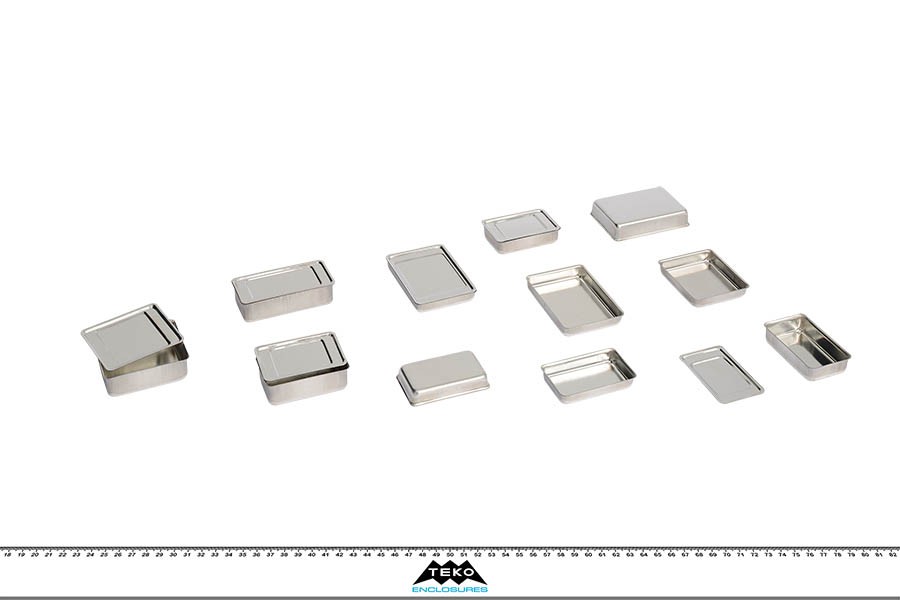

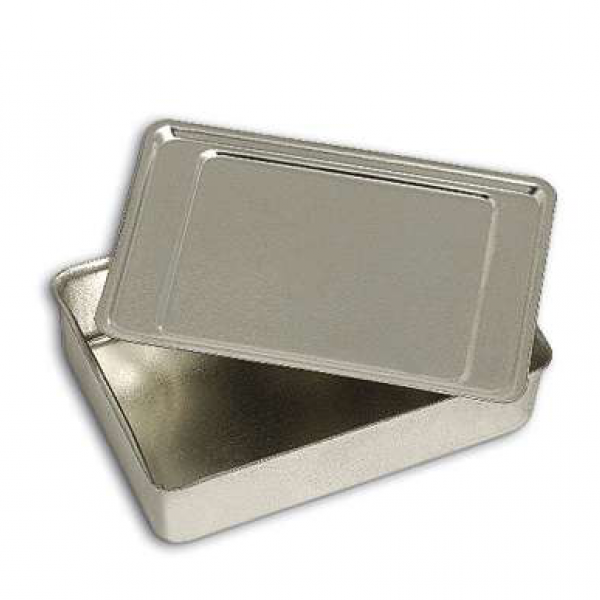

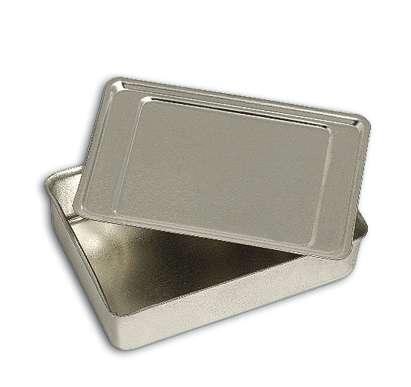

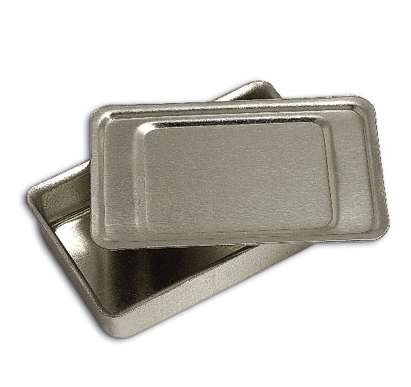

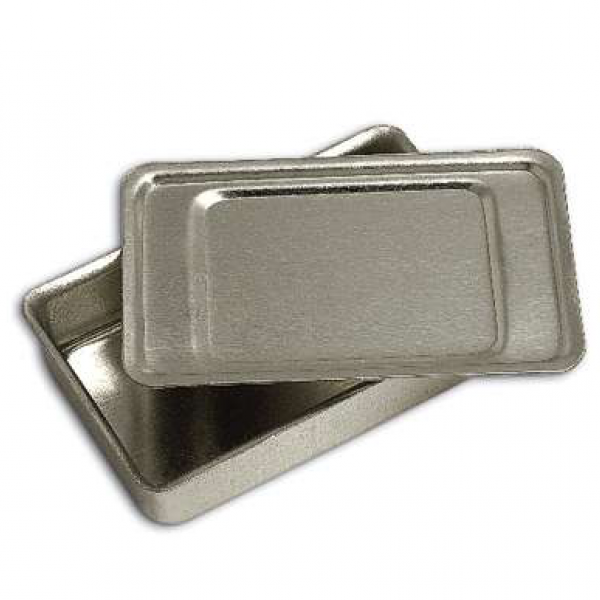

Electrolythic tin-plated steel enclosures for High/Frequency electronic components assembly with a cover that can be soldered on for hermetic sealing. Volume of casing is suitable for easy assembly of professional and High-Technology circuits.
Products
Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

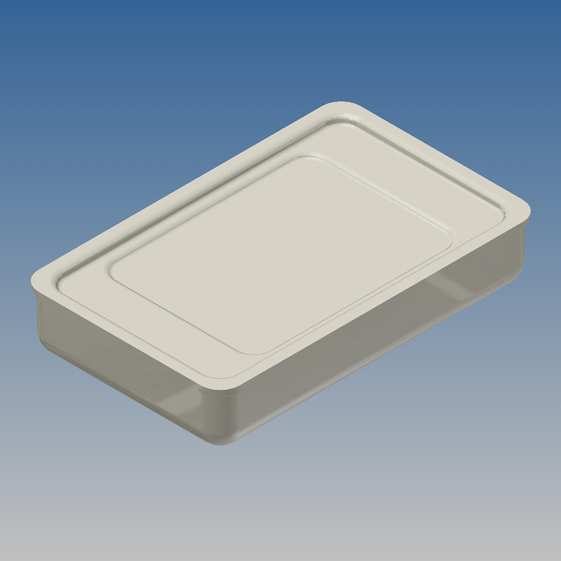

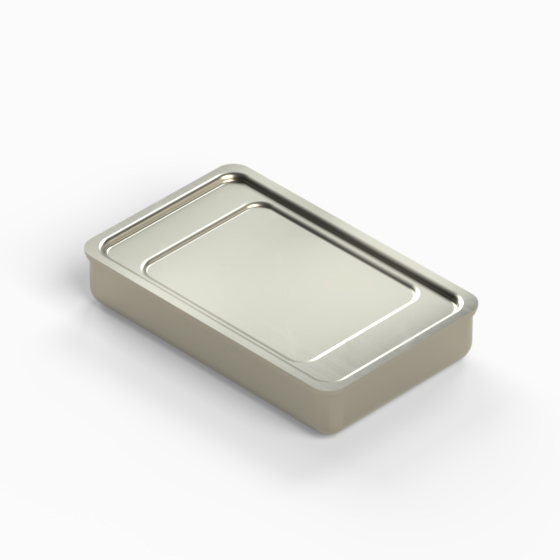

433.15 | 1,988 | 1,24 | 0,374 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

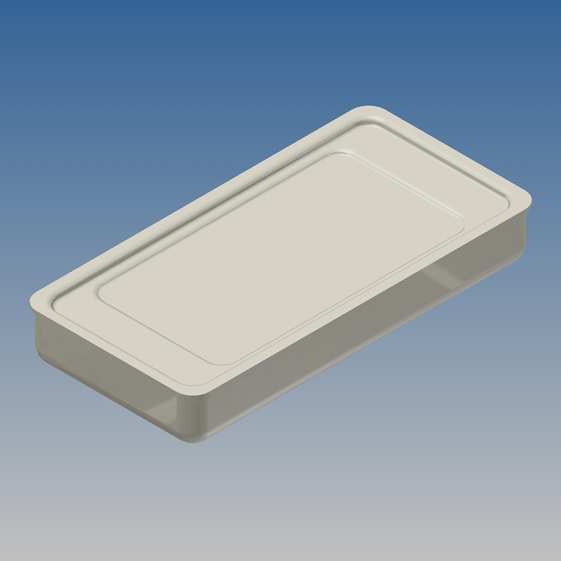

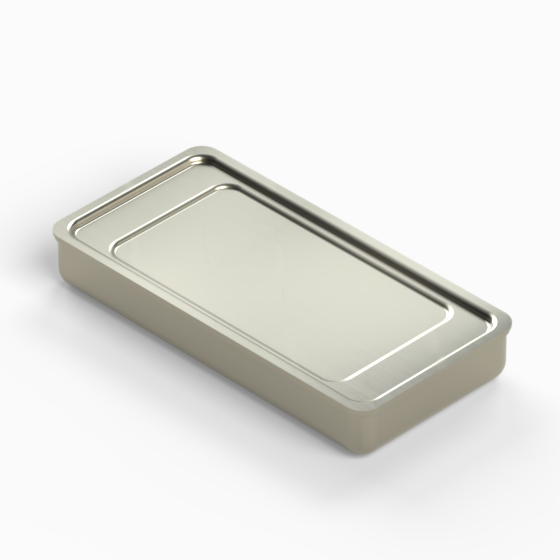

434.15 | 2,5 | 1,24 | 0,374 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

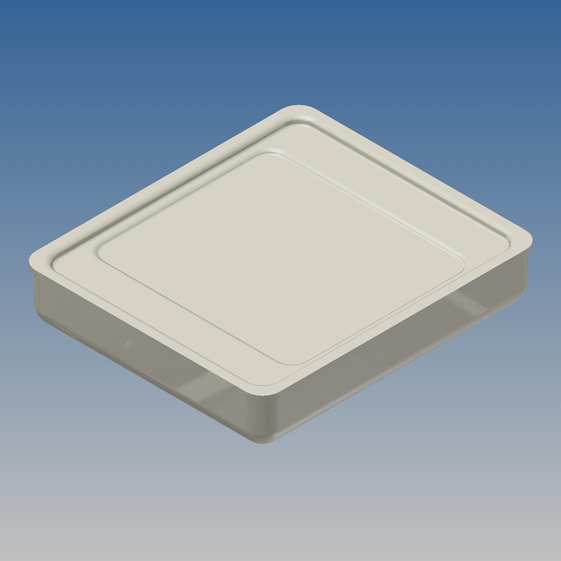

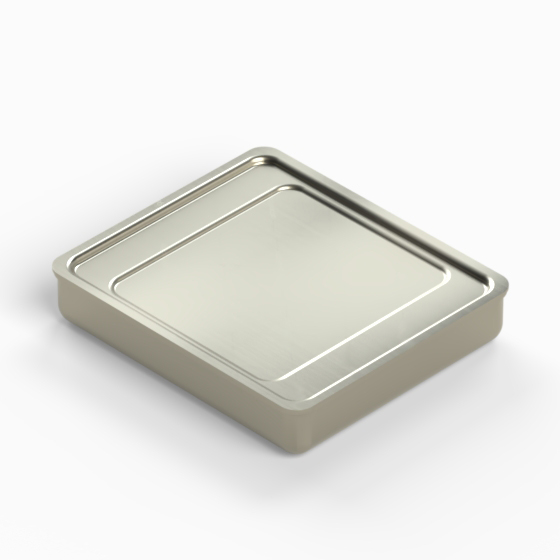

435.15 | 1,988 | 1,732 | 0,374 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

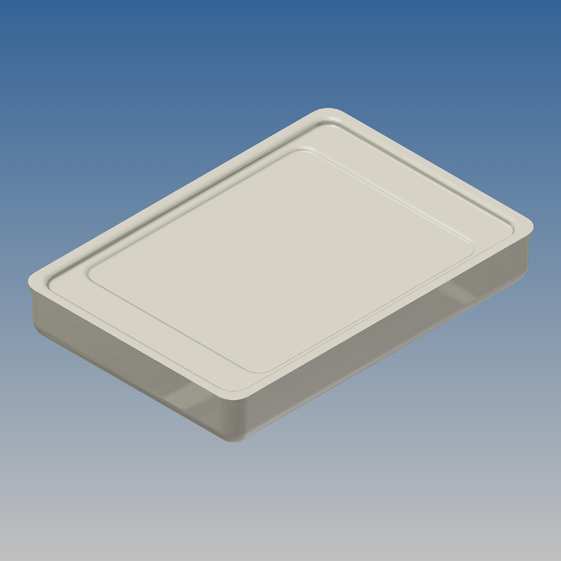

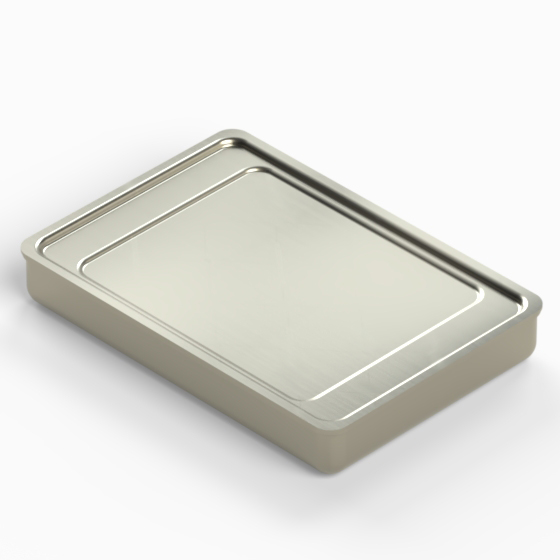

436.15 | 2,5 | 1,732 | 0,374 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

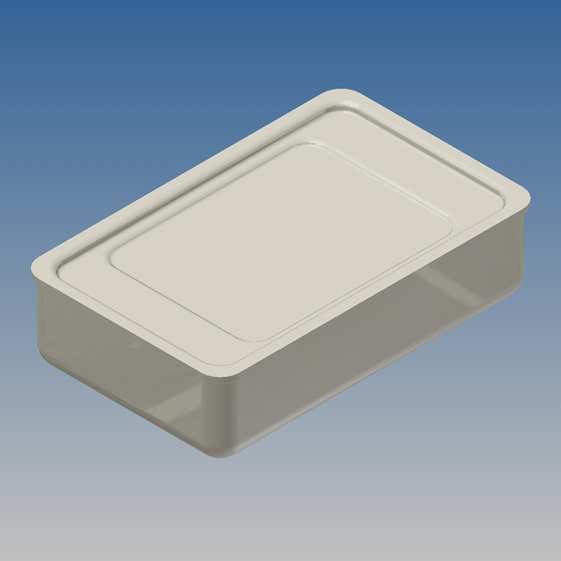

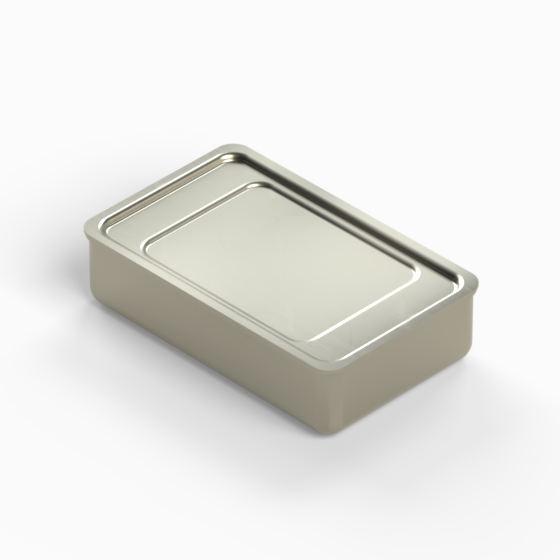

443.15 | 1,988 | 1,24 | 0,512 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

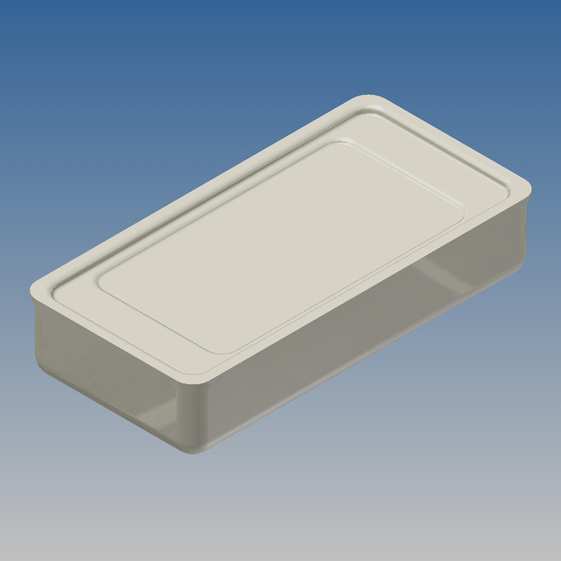

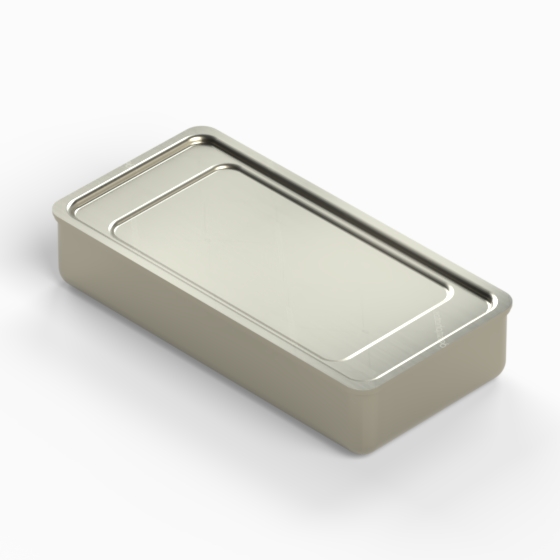

444.15 | 2,5 | 1,24 | 0,512 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

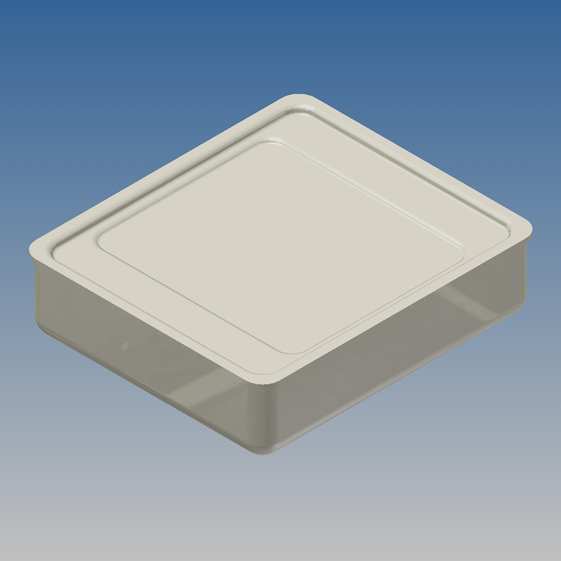

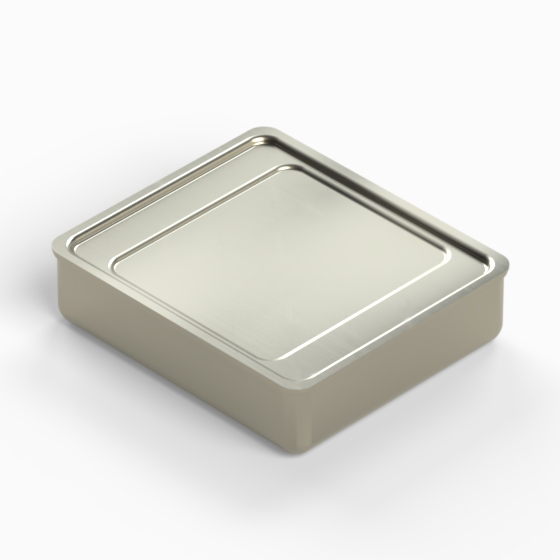

445.15 | 1,988 | 1,732 | 0,512 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

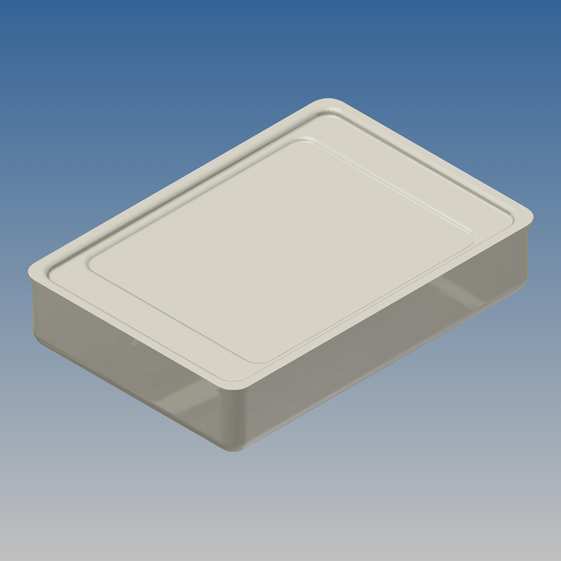

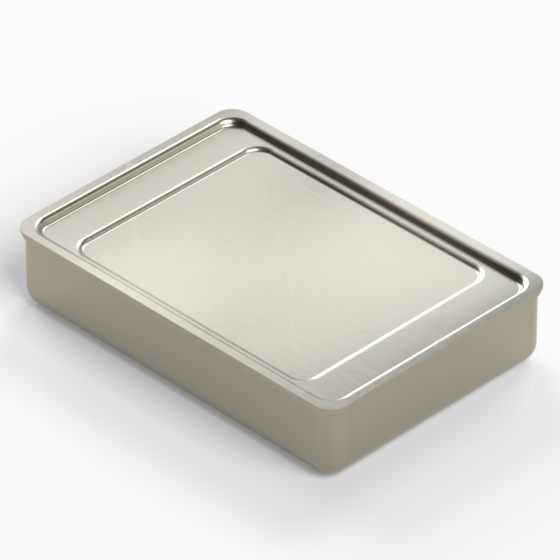

446.15 | 2,5 | 1,732 | 0,512 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

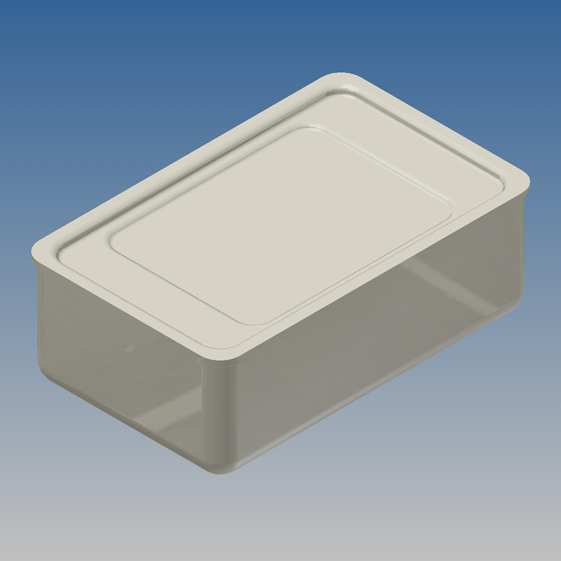

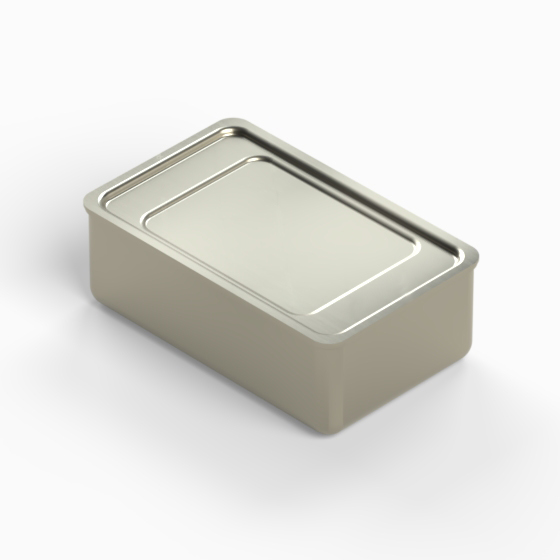

453.15 | 1,988 | 1,24 | 0,689 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

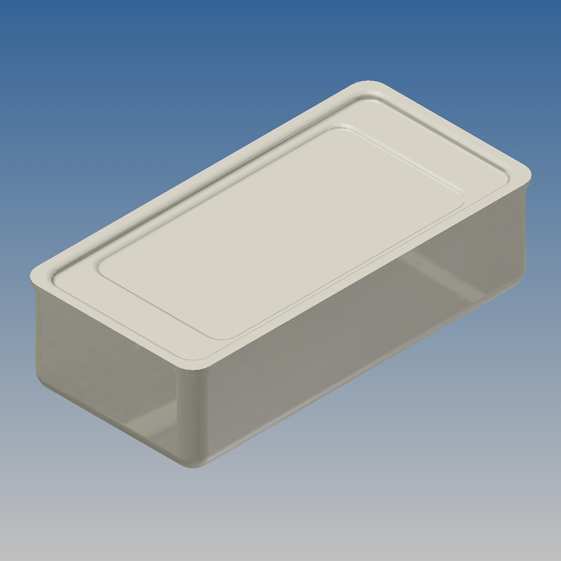

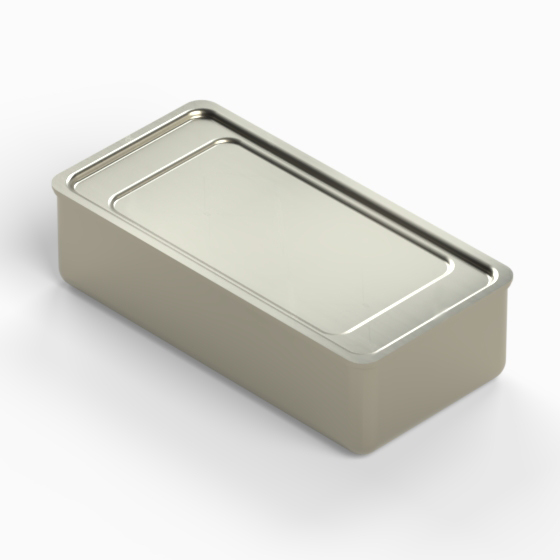

454.15 | 2,5 | 1,24 | 0,689 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

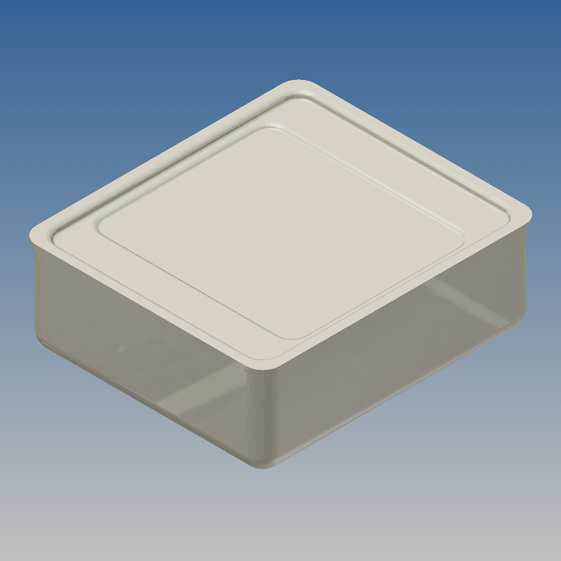

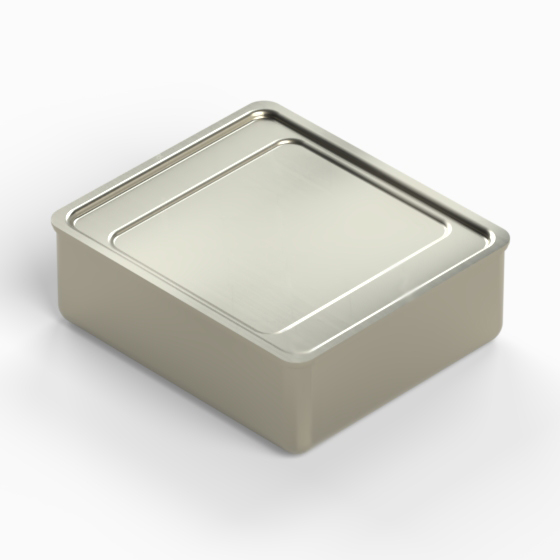

455.15 | 1,988 | 1,732 | 0,689 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
|
![]() |

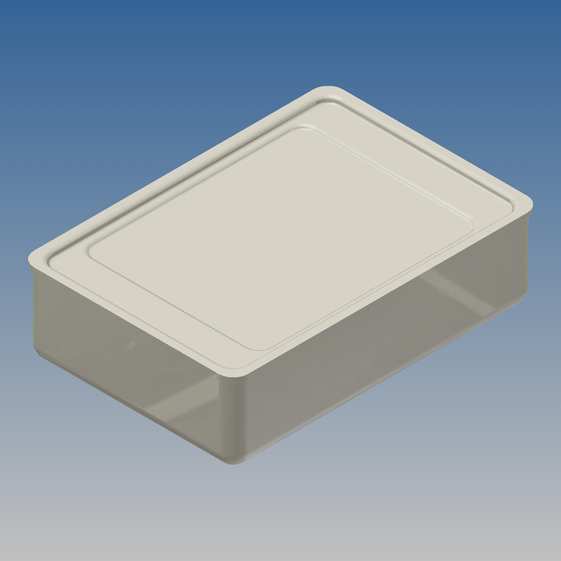

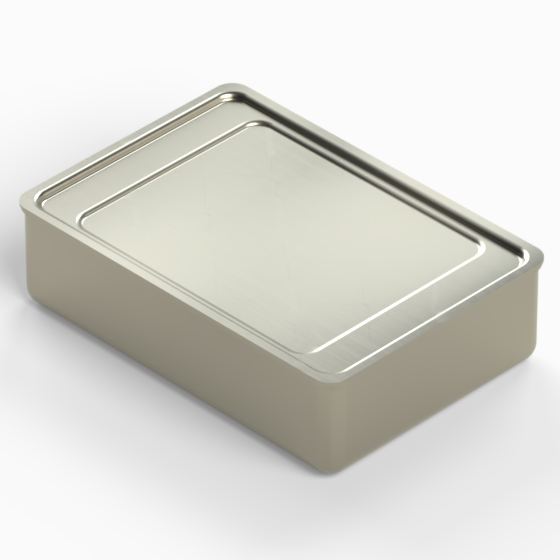

456.15 | 2,5 | 1,732 | 0,689 |
-  |
B.S.E. T.55 | - | - | - | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
