Description

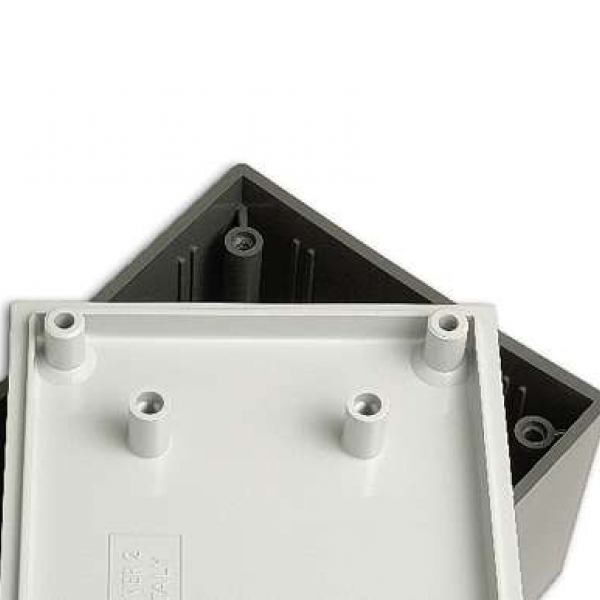

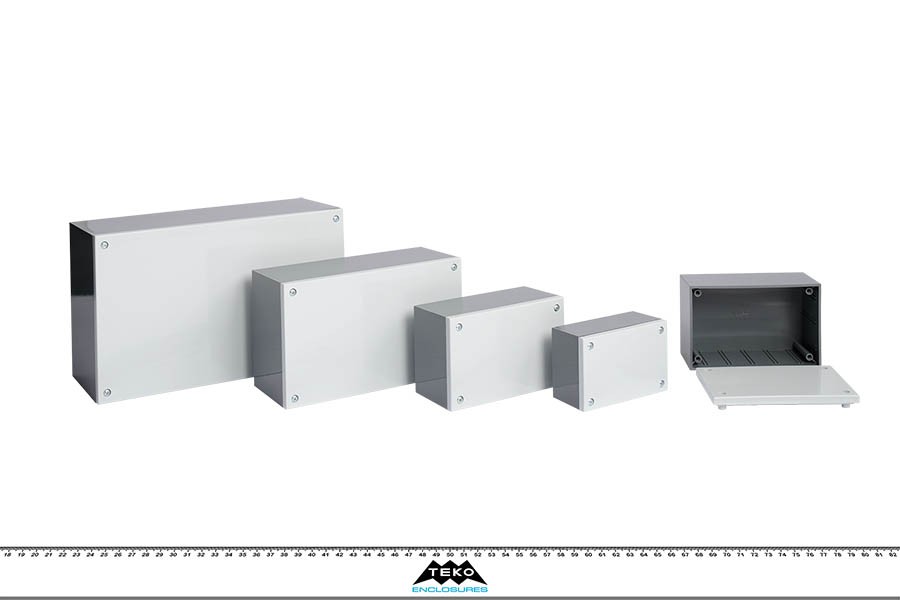

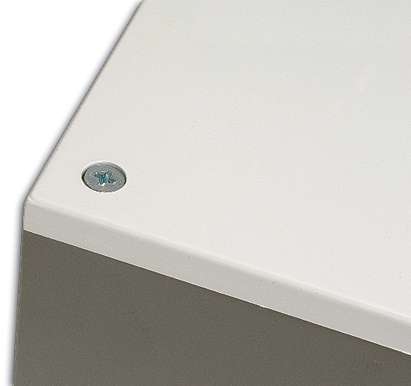

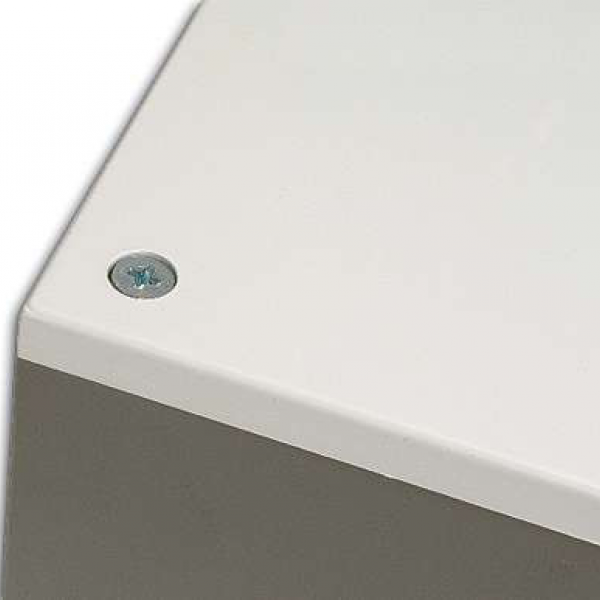

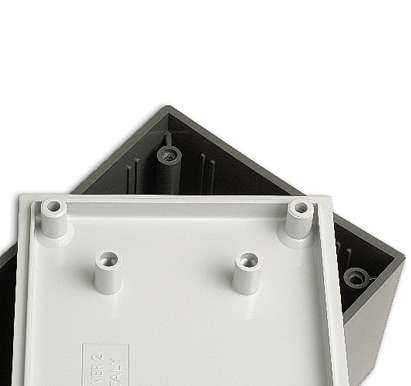

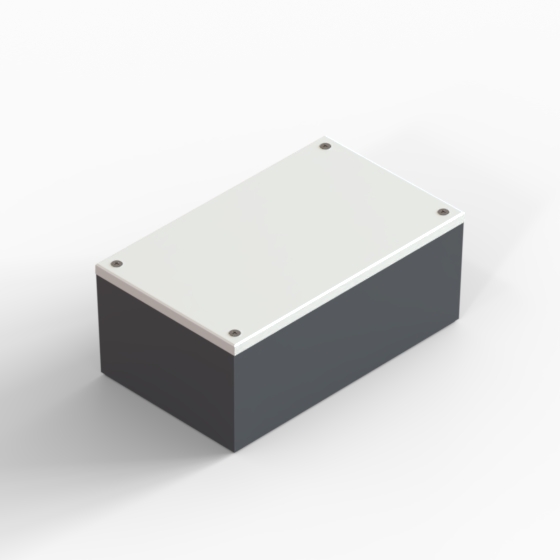

ABS enclosures with square corners and glossy surface finish. The base walls have integral PCB guides.“CP” series have two-tone colour scheme, the cover is always in light gray colour. Closing by four screws.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

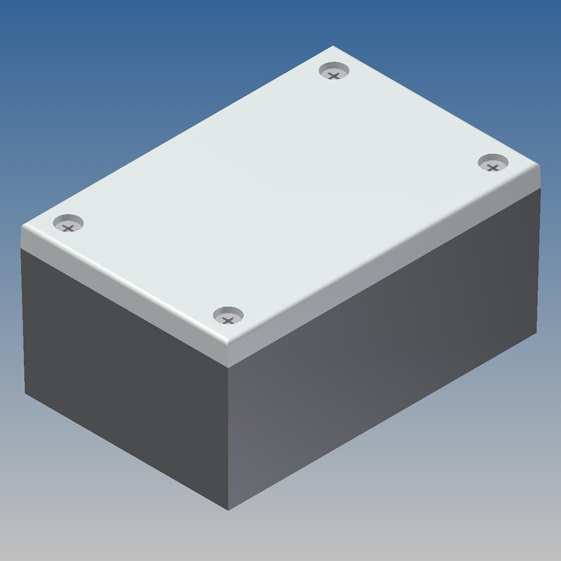

CP/1.20 | 3,346 | 2,205 | 1,63 |
7012 9018 |
N-UT - AG-ATY | 3,150 | 0,984 | 4 | - |
PDF DWG |
||
|

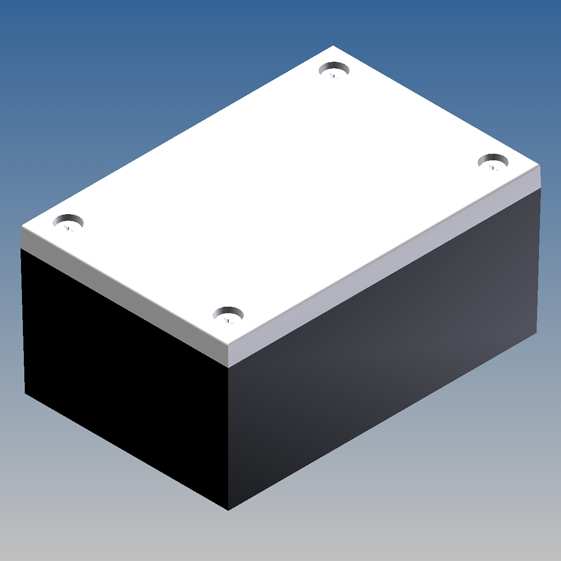

CP/1.23 | 3,346 | 2,205 | 1,63 |
9004 9018 |
P2H-AT - AG-ATY | 3,150 | 0,984 | 4 | - |
PDF DWG |
||
|

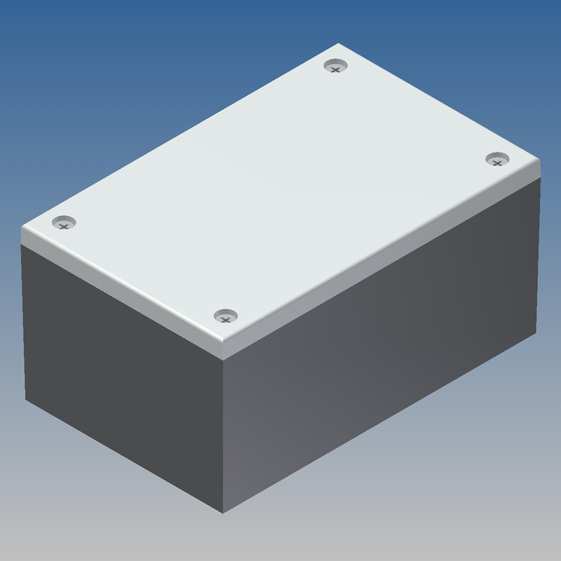

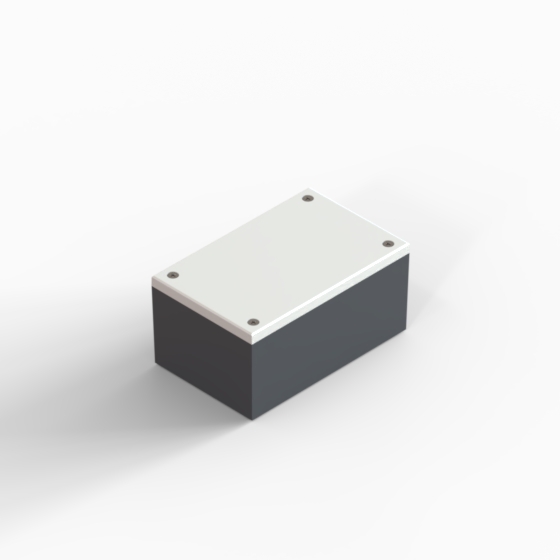

CP/2.20 | 4,331 | 2,756 | 2,122 |
7012 9018 |
N-UT - AG-ATY | 4,075 | 1,457 | 4 | - |
PDF DWG |
||
|

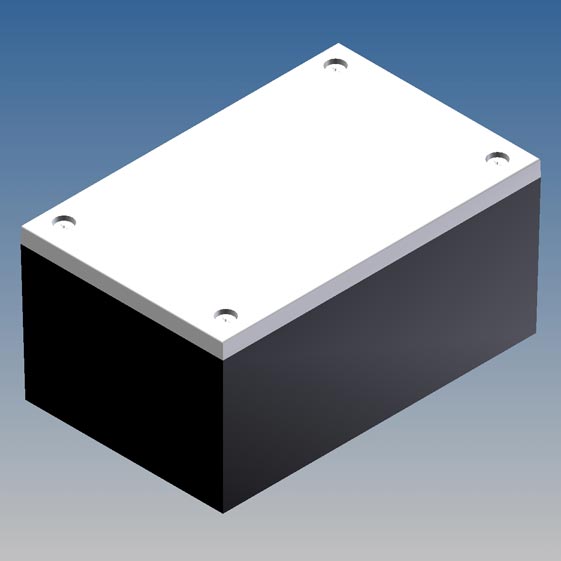

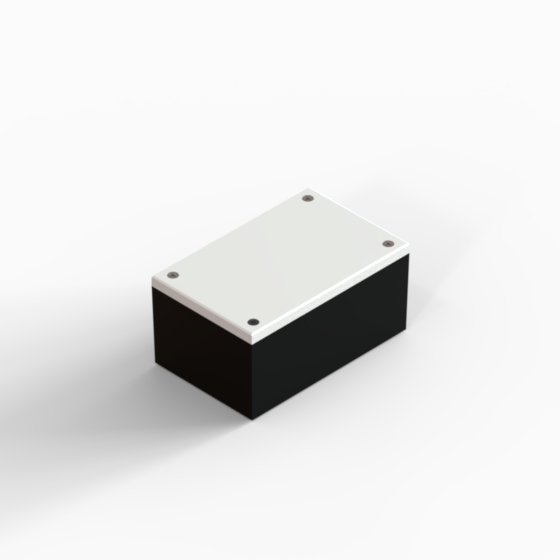

CP/2.23 | 4,331 | 2,756 | 2,122 |
9004 9018 |
P2H-AT - AG-ATY | 4,075 | 1,457 | 4 | - |
PDF DWG |
||
|

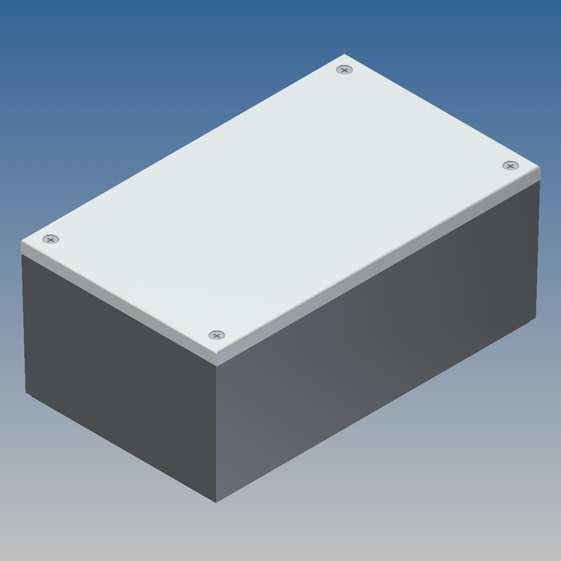

CP/3.20 | 6,299 | 3,78 | 2,634 |
7012 9018 |
N-UT - AG-ATY | 6,063 | 1,929 | 4 | - |
PDF DWG |
||
|

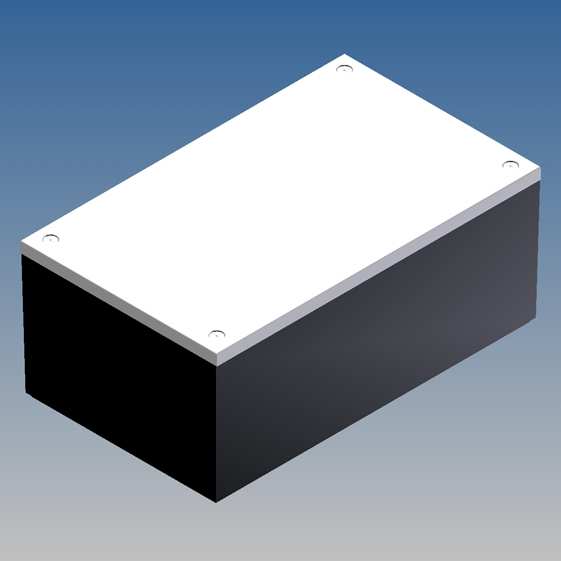

CP/3.23 | 6,299 | 3,78 | 2,634 |
9004 9018 |
P2H-AT - AG-ATY | 6,063 | 1,929 | 4 | - |
PDF DWG |
||
|

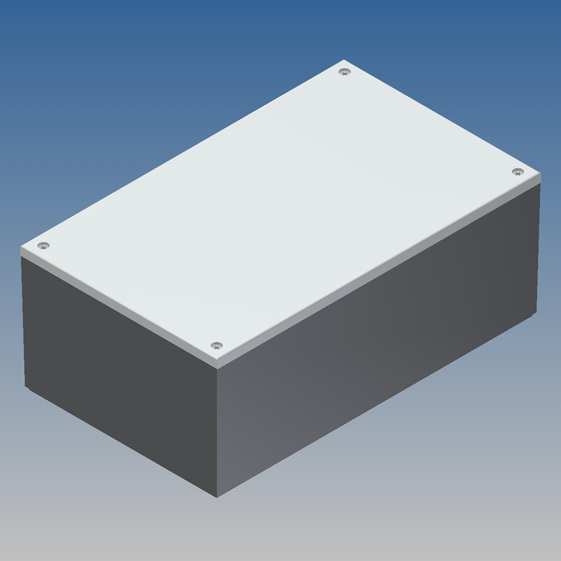

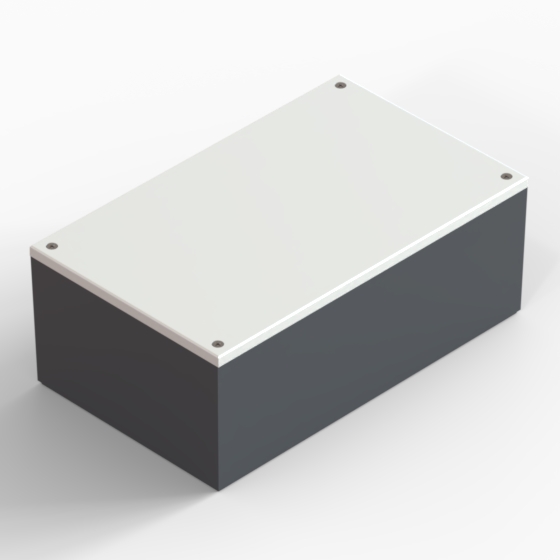

CP/4.20 | 8,465 | 5,118 | 3,264 |
7012 9018 |
N-UT - AG-ATY | 8,189 | 2,539 | 4 | - |
PDF DWG |
||
|

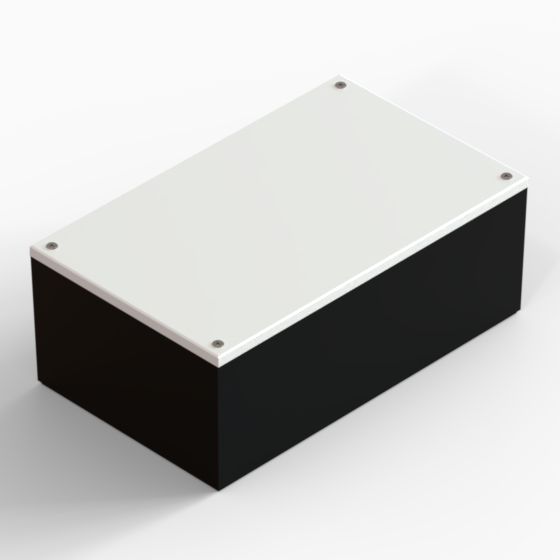

CP/4.23 | 8,465 | 5,118 | 3,264 |
9004 9018 |
P2H-AT - AG-ATY | 8,189 | 2,539 | 4 | - |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
